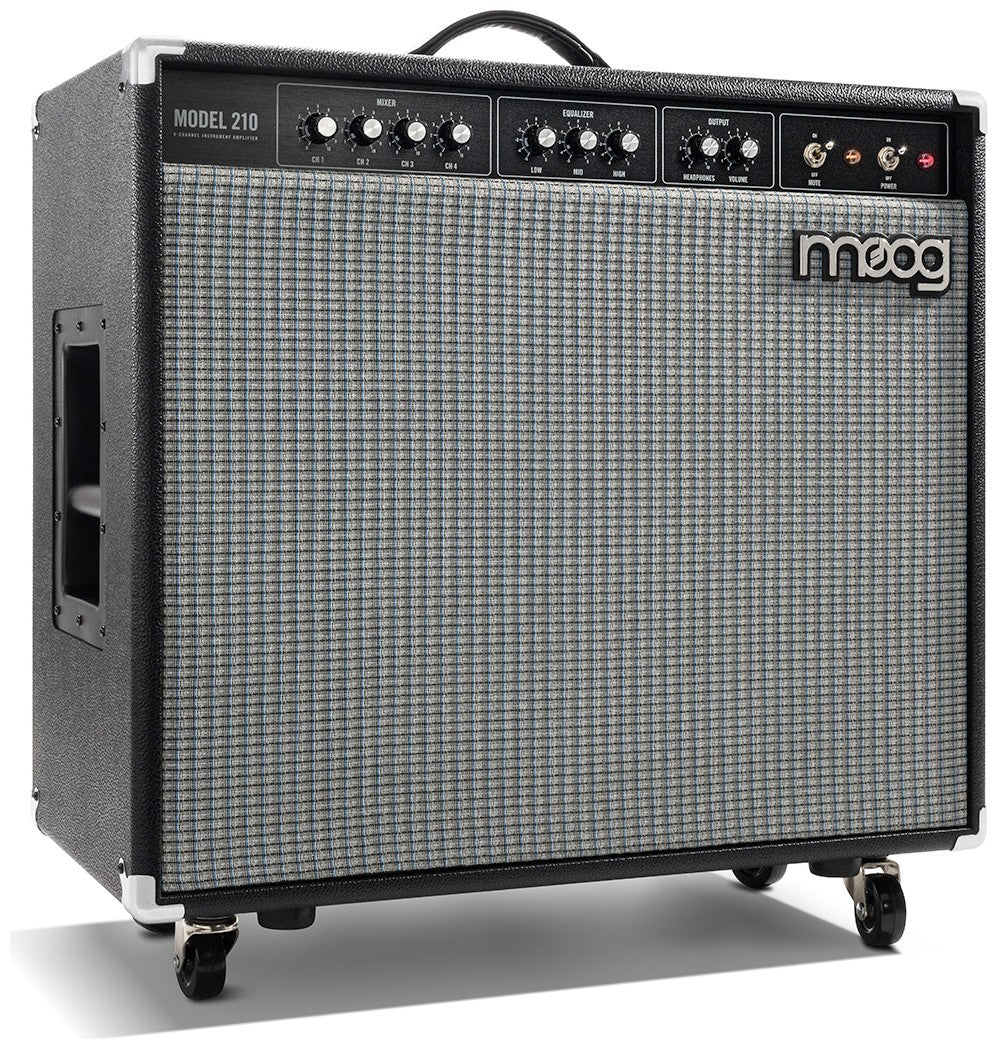

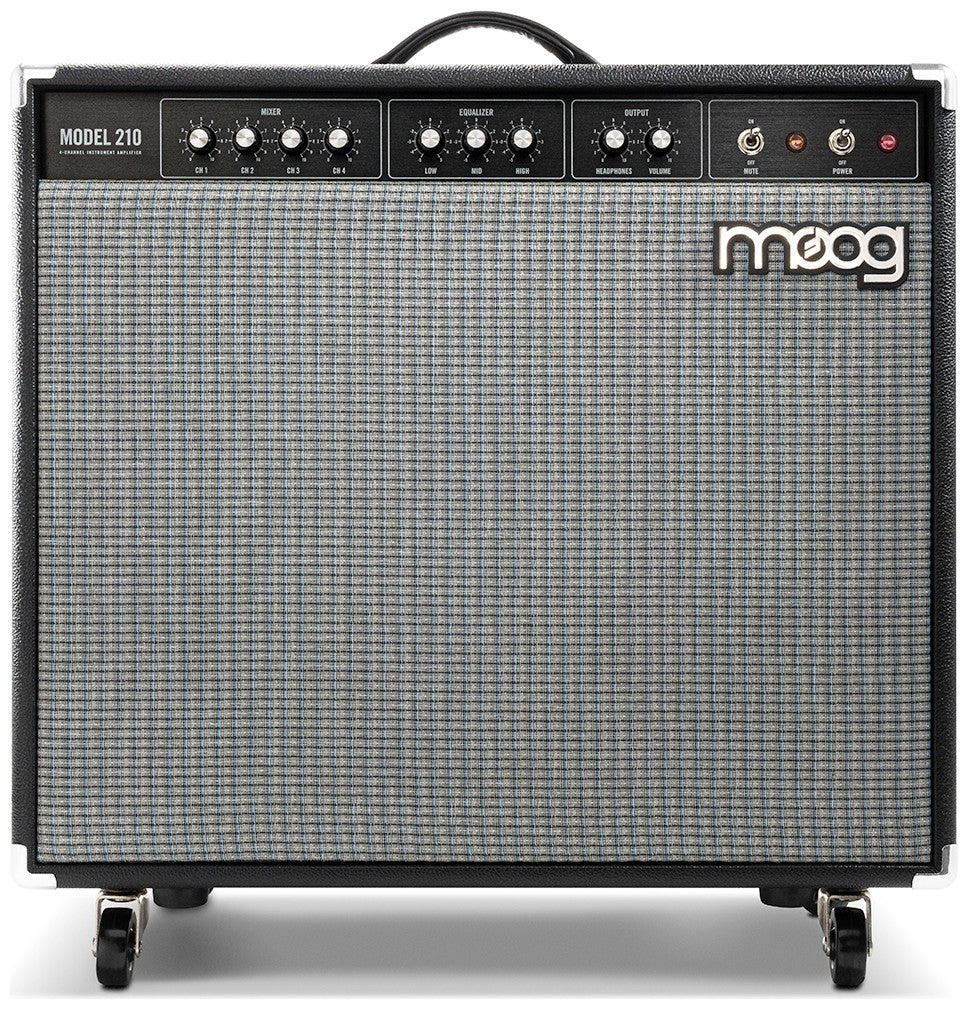

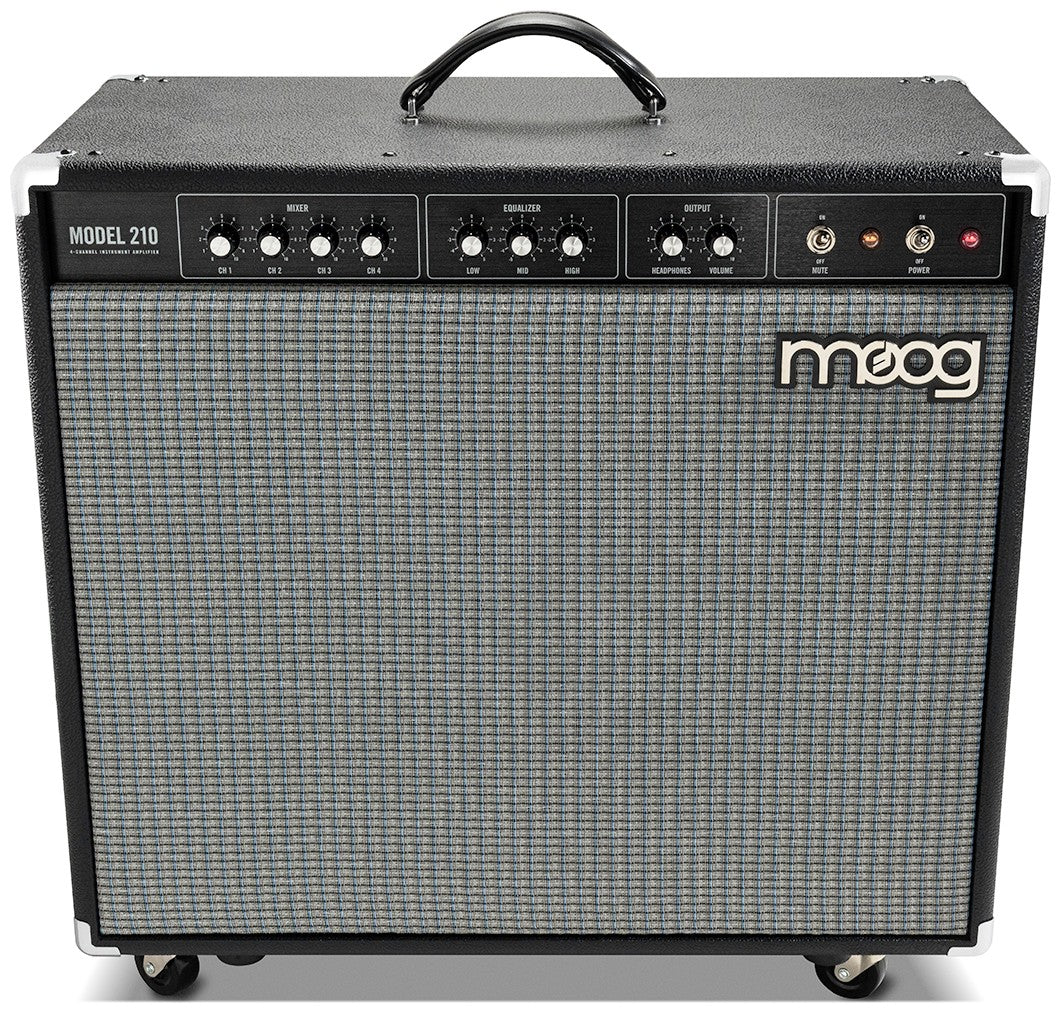

Moog Model 210

Amplification Designed for Demanding Synthesizers and Keyboards

The Moog Model 210 is a keyboard amplifier designed to reproduce the harmonic richness of synthesizers, digital pianos, drum machines and modeling systems with precision. Its flat-response design preserves the character of every sound, from airy pads to the most powerful bass tones, with no perceptible latency. Thanks to its built-in mixer, the keyboard player can centralize multiple audio sources and quickly adapt the sound for the stage, studio or rehearsal room.

Its two 10-inch woofers combined with a compression driver provide broad, balanced projection, while the 3-band Baxandall EQ helps adjust the sonic touch to suit the room’s acoustics. The stereo outputs also allow the signal to be sent to a professional PA system, while retaining convenient control from the amplifier.

Technical specifications

Type	instrument amplifier	Master EQ	3-band Baxandall
Amplification technology	all-analog	Bluetooth	version 6.0 with wireless audio streaming

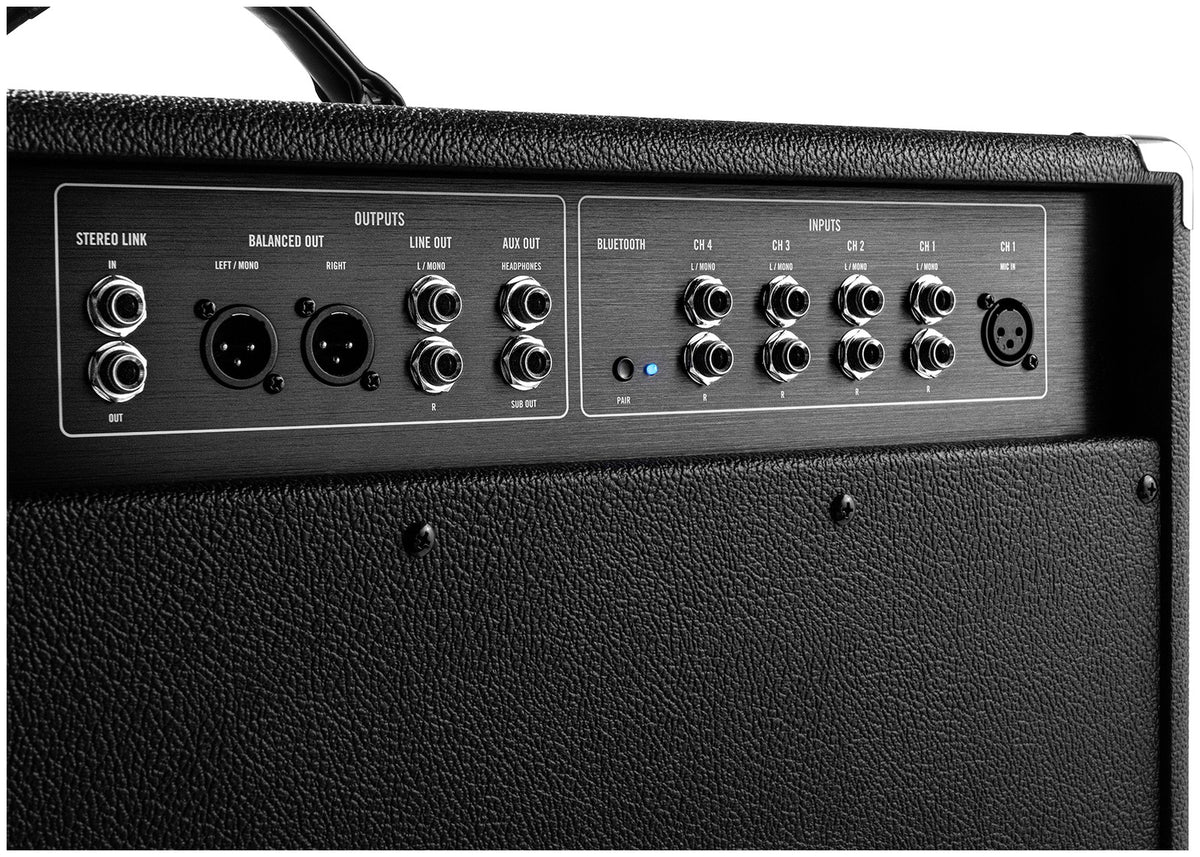

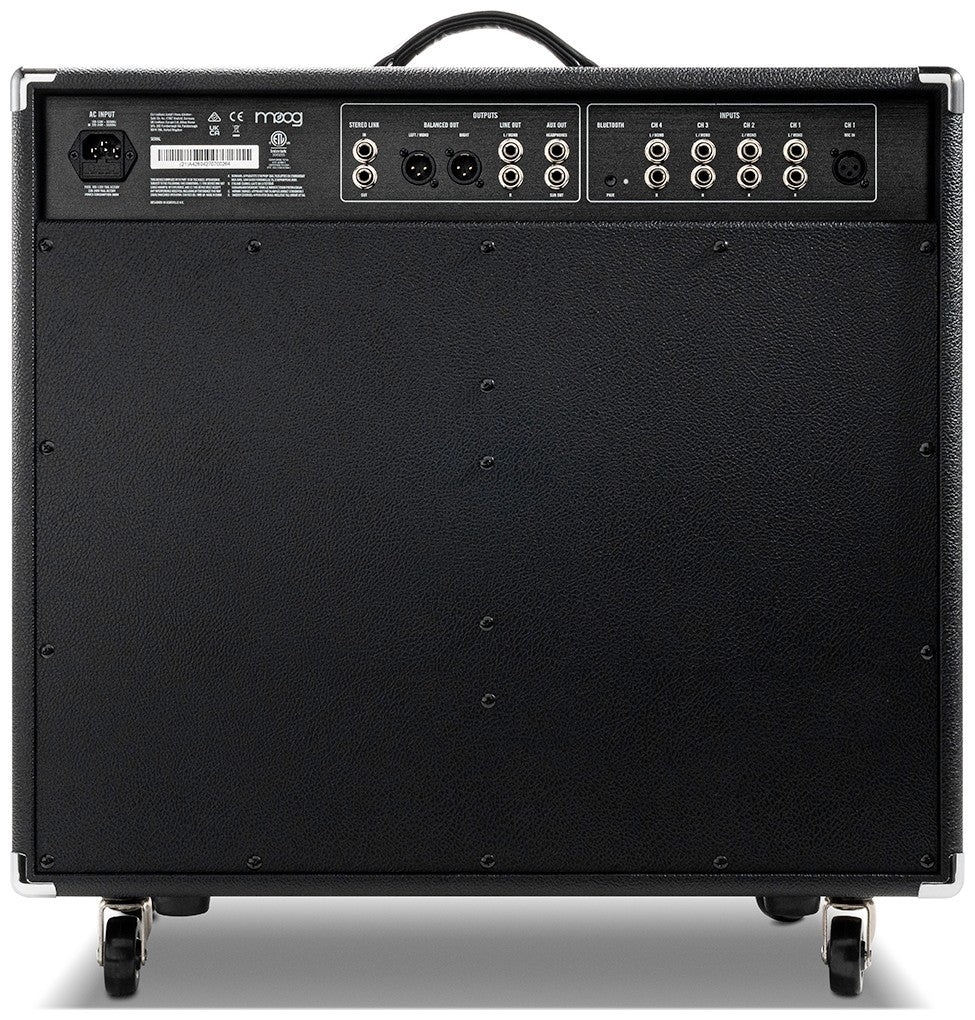

Response	full-range, flat response	Outputs	balanced stereo XLR and TRS jack outputs
System power	1,100 W peak / 550 W RMS	Stereo Link function	yes

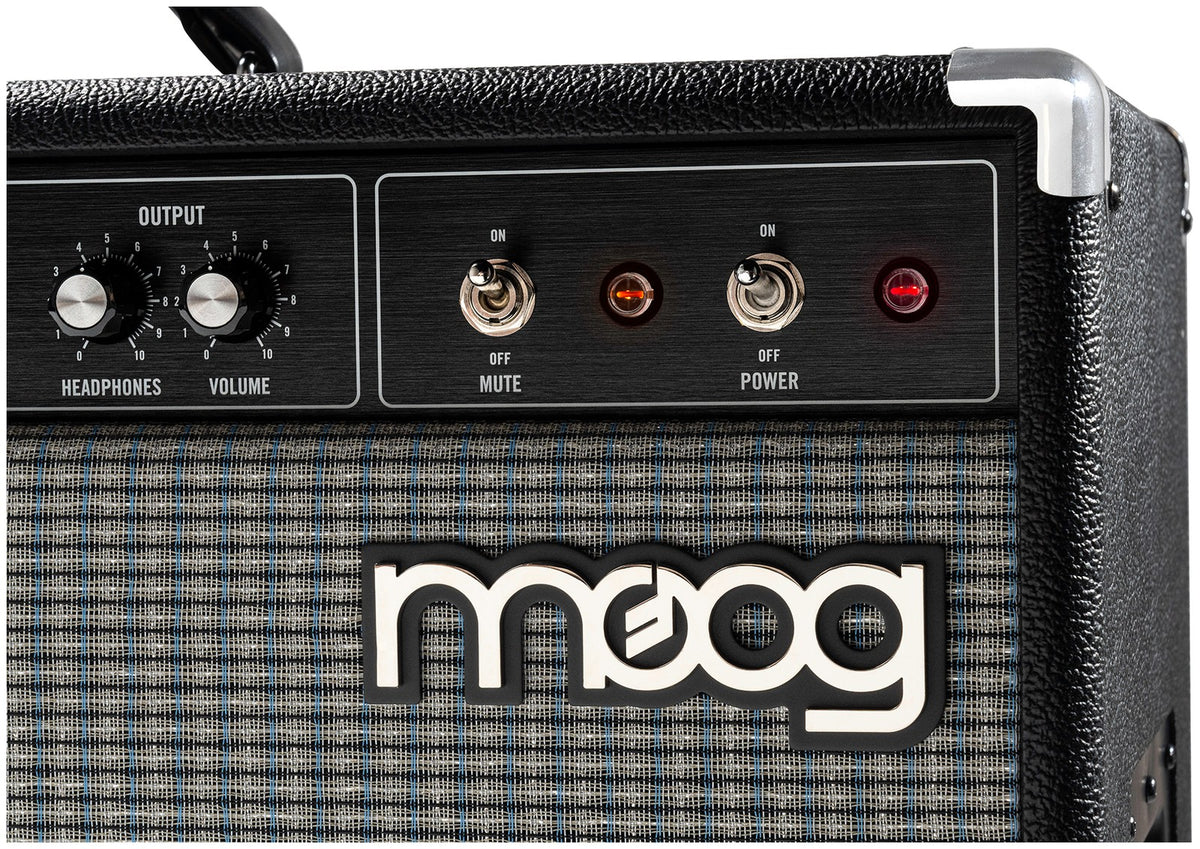

Low-frequency power	510 W RMS	Built-in headphone amplifier	yes
High-frequency power	40 W RMS	Covering	Moog tolex
Configuration	bi-amped, 2.5-way speaker cabinet	Grille	vintage-style fabric

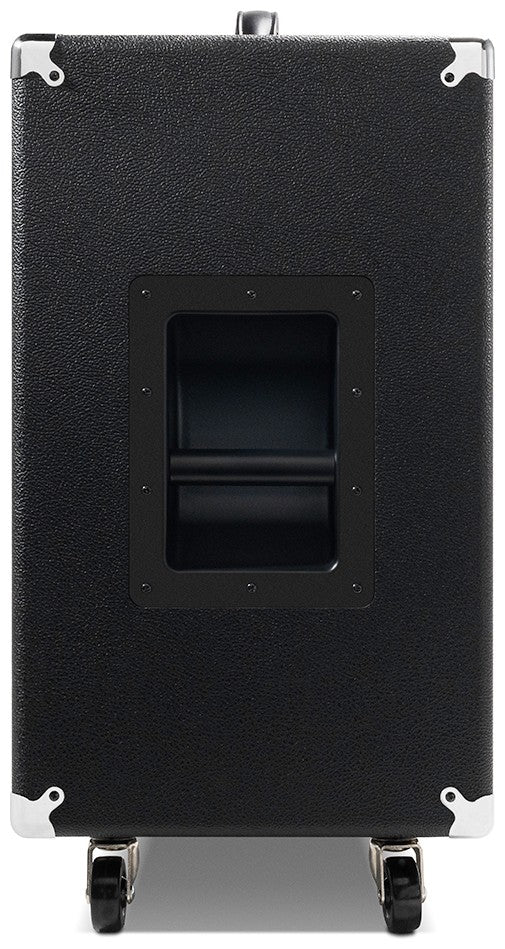

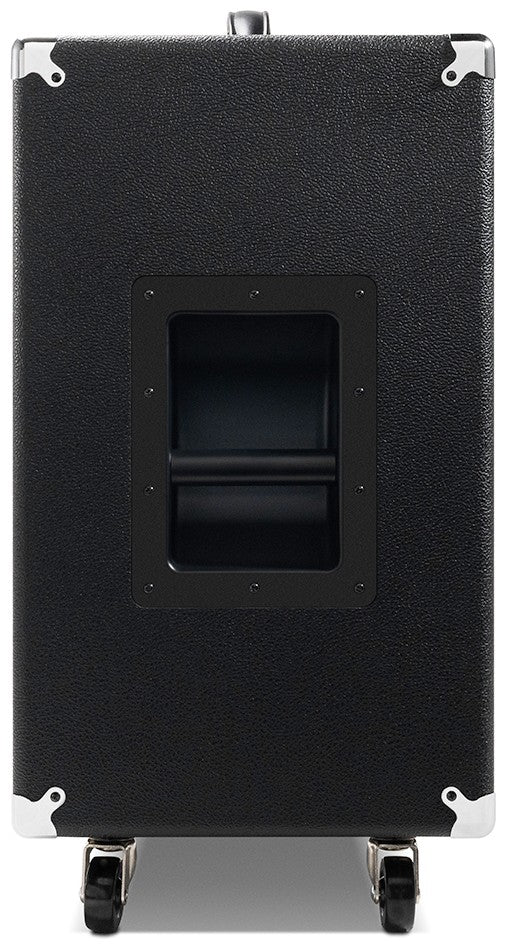

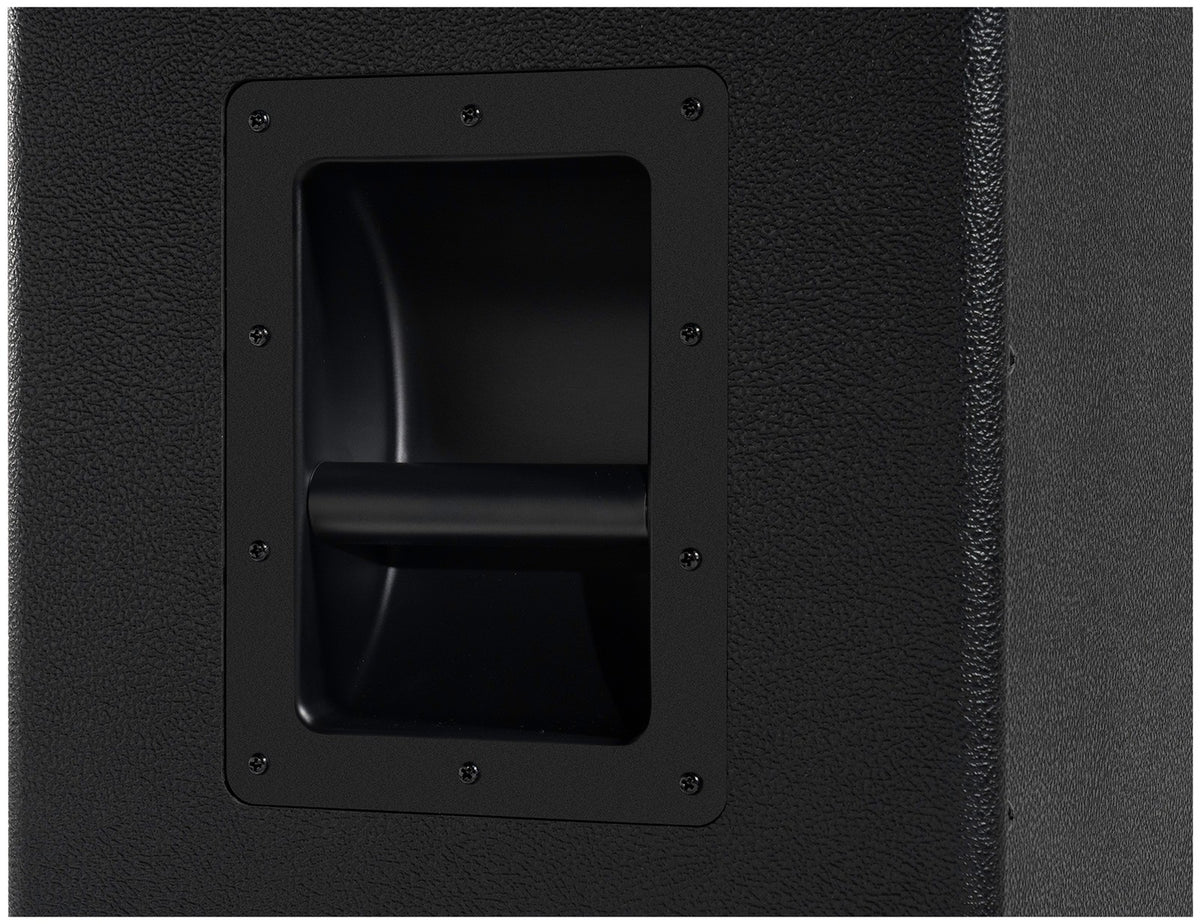

Frequency response	35 Hz to 20 kHz	Transport	top handle, side handles, and removable casters
Latency	virtually zero	Power supply	110 to 120 V or 220 to 240 V AC, 50/60 Hz, IEC connector
Speakers	2 x 10 inches	Dimensions	564 x 605 x 332 mm
High-frequency driver	1-inch compression driver with 90-degree conical horn	Weight	31.7 kg
Mixer	4-channel analog stereo	Origin	China
Microphone preamp	channel 1
