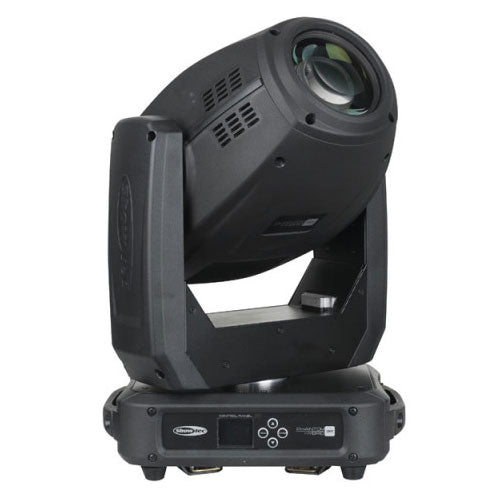

Showtec Phantom 3R Hybrid
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
What you need to know
What you need to know
- True 3-in-1: beam, spot, and wash thanks to the integrated frost filter, ideal for versatile looks.
- Discharge lamp source YODN 3R 150 W (approx. 8600 K), motorized zoom 3 to 20 deg and precise focusing for sharp beams.

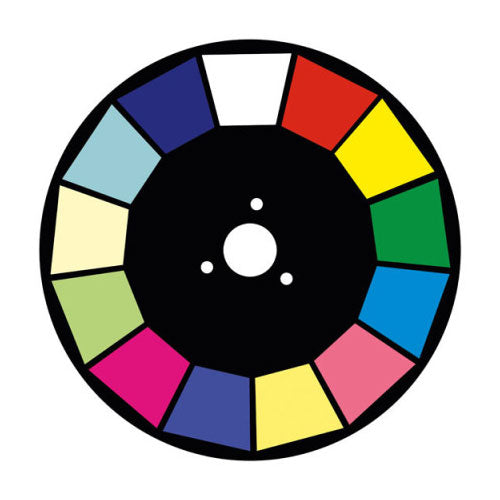

- Maximum creativity: dual rotating prisms (circular and linear) stackable, fixed and rotating gobo wheels, 12+white color wheel.

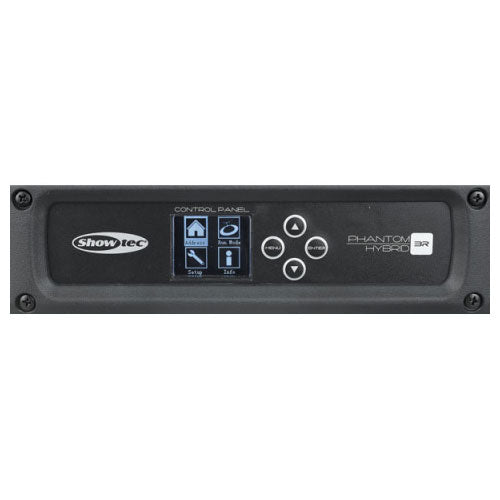

- Flexible control: DMX 14/19 channels, Auto, Sound, Manual, Master/Slave programs, with color LCD display.
Manufacturer Information
Showtec
https://www.highlite.com
ventes@highlite.com
------------------------
Safety manager:
Highlite International BV
Email: ventes@highlite.com
Address:
Stages, Clubs, Events: A Hybrid Moving Head Built for Action
Designed to shine in live performances as well as fixed installations, the Phantom 3R Hybrid delivers tight beams in clubs and gobo projections on stage, not to mention wash layers for weddings, private parties, bars, and restaurants. Its versatility and power make it an asset for both indoor and outdoor events.
Who Is This Fixture For?
Perfect for the mobile DJ, lighting technician, host, and rental companies seeking a reliable, fast, and comprehensive moving head. It is also suitable for theaters and performance venues looking for an all-around fixture capable of covering spot, beam effects, and wash lighting with a single device.
Technical specifications
| Spotlight type | Hybrid | Color | Black |
| Type | YODN 3R discharge lamp | Pan/tilt resolution | 16 bit |
| Light source | 150 W / R3 / approx. 8600 K | Special functions | Dead zones for movement (tilt/pan), user-selectable pan/tilt ranges (540/360/180 deg), pan/tilt inversion |
| Beam angle | 3 to 20 deg | Gobo wheel 1 | More than 16 fixed gobos |
| Dimmer | Mechanical 0-100% | Gobo wheel 2 | More than 8 rotating gobos + open |
| Strobe | 0-20 Hz | Gobo functions | Gobo Flow effect, Gobo Shake |
| Focus | Motorized | Colors | More than 12 + white |
| Zoom | Motorized | Color effects | Half-colors, rainbow effect |
| Prism 1 | Circular rotating prism | Display/control | Color LCD display |
| Prism 2 | Linear rotating prism | Protocols | DMX512, Auto, Sound, Manual, Master-Slave |
| Frost | Yes | DMX modes | Advanced 19 channels / Standard 14 channels |
| Pan (orientation) | 540 deg | Input voltage | 100-240 V / 50/60 Hz (auto-ranging) |
| Tilt (inclination) | 260 deg | Power consumption | 270 W |
You will also like
Algam Lighting
MH200
J.collyns
Pack Moving Head Spot 100W Primus
Cameo
Auro Spot Z300
Afx Light
HOTBEAM-3r
Afx Light
SPOT180led
Afx Light
MAGIC-WASH25
Power Lighting
Pack Moving Head Spot 100W Syrius
ADJ
Focus Spot 2X
Questions frequently asked
What beam angle does the Showtec Phantom 3R Hybrid offer?
The motorized zoom covers a range from 3 to 20°, with motorized focus. The frost filter allows for a wider light output suitable for wash applications.
What gobos and effects are available?
Two wheels include over 16 fixed gobos and more than 8 rotating gobos, with an open position. Integrated effects include Gobo Flow and Gobo Shake, while two rotatable prisms, circular and linear, can be layered.
Is the moving head DMX compatible?
DMX512 control is available in Standard 14-channel mode or Advanced 19-channel mode. Auto, Sound, Manual, and Master-Slave modes are also offered.
What lamp does this hybrid moving head use?
A 150 W YODN 3R discharge lamp, rated at approximately 8600 K, serves as the light source. The total power consumption is specified at 270 W. The power supply accepts 100 to 240 V at 50/60 Hz with auto-ranging.
What pan and tilt movements are offered?
Movements reach 540° pan and 260° tilt, with 16-bit resolution. Selectable pan ranges of 540°, 360°, or 180°, pan/tilt inversion, and dead zones are provided.
