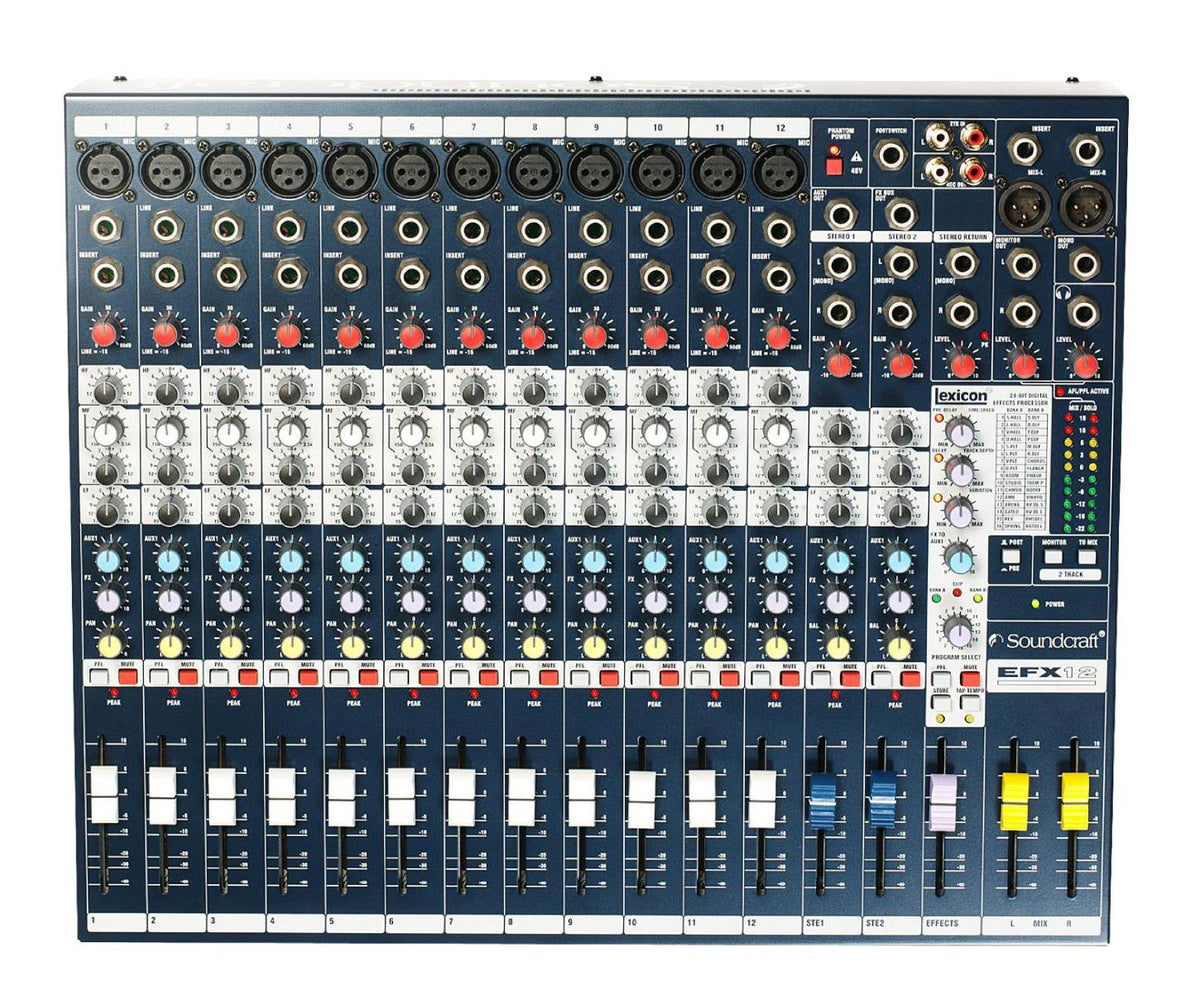

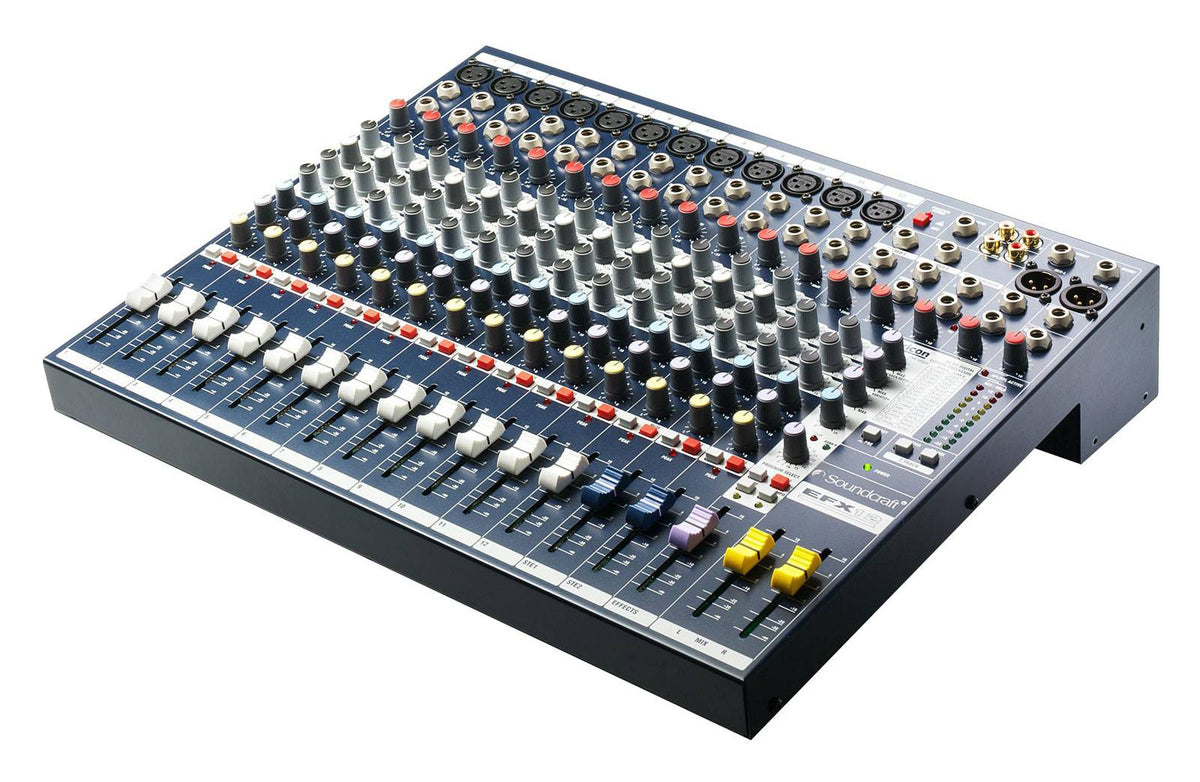

Soundcraft Efx 12
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Soundcraft
https://www.soundcraft.com
------------------------
Safety manager:
CSI audiovisuel
Email:
Address:
Essential Information About EFX Mixing Consoles
- Integrated 24-bit Lexicon for high-quality effects, with 2 dedicated auxiliary sends for monitors/FX.
- GB30 microphone preamps, 48V phantom power, and +22 dB dynamic headroom for clean and powerful capture.
- 3-band EQ with variable mid, insert on each channel and on the Master for a complete processing chain.
- Reliable ergonomics: 10-segment stereo VU meters, 60 mm faders, metal XLR and 6.35mm Jack connectors.
A Series That Extends the DNA of Versatile Consoles
Available in 8 or 12 mono channel versions, the EFX series adopts the architecture and workflow of the EPM series while integrating a 24-bit Lexicon effects module. It adds expected features in the multi-format console category while maintaining excellent value for money. The use of low-tolerance surface-mount components optimizes the precision of gain and EQ stages.
For Stage, Rehearsal, and Fixed Installation
Designed for bands, small stages, project studios, and installed venues, the EFX offers quick setup and clear routing. The 2 auxiliaries facilitate monitor and/or effects management, while the headphone output and precise level display ensure secure mixes and performances.
Technical specifications
| Type | Hybrid | Rackable | Yes |
| USB stereo recording / playback | No | Headphone output | Jack 6.35, Yes |
| Number of faders | 14 | ||
Questions frequently asked
Does the Soundcraft EFX 12 have built-in effects?
The built-in 24-bit Lexicon processor offers reverb and effects without the need for external hardware. Quick recall makes them easy to use during rehearsals, on stage, or in project studios.
How many mono channels does the 12 version have?
The 12-channel version features 12 mono channels.
Can stage monitors be managed with this console?
The 2 auxiliary sends allow managing monitors and/or effects. A 300 mW headphone output at 150 ohms is available for monitoring. The 10-segment stereo Master VU meter helps monitor levels.
What equalizer is available on the mono channels?
Each mono channel includes a 3-band EQ with highs at 12 kHz and lows at 80 Hz, adjustable ±15 dB. The mid is sweepable from 150 Hz to 3.5 kHz, also ±15 dB.
Does the EFX 12 have phantom power and inserts?
The 48 V phantom power is integrated into the GB30 mic preamps. Inserts are provided on all channels as well as on the Master.
