Essential Information on the 2U Push-Pull Tube Mic Preamp
Essential Information on the 2U Push-Pull Tube Mic Preamp
- Push-pull tube architecture for controlled harmonic saturation, excellent headroom, and solid dynamics.
- Gain in 2 dB steps from +10 to +70 dB for fine and repeatable adjustment during recording.
- Variable mic input impedance (600 Ohm / 1.2 kOhm / 2.4 kOhm) to tailor the "character" and matching with your microphones.
- High-impedance front panel instrument DI input (>1 MOhm), ideal for guitars, basses, and synths.
Manufacturer Information
Tube Tech
https://www.tube-tech.com
info@tube-tech.com
------------------------
Safety manager:
MWDISTRIBUTION sas / The Audio
Email: info@theaudioaddict.fr
Address:
A Preamp Rooted in the Tradition of Classic Studio Channels
Designed in the spirit of classic transformer-based units, this tube preamp emphasizes musicality and precision. The push-pull architecture reduces noise and improves hum rejection while delivering the warmth sought by modern sound engineers. It positions itself as a "controlled color" solution balancing transparency and character.
Who Is It For and What Are Its Uses?
Perfect for lead vocals, acoustic guitars, drum overheads, and live bass, it suits both professional studios and demanding home studios. Producers, premium podcasters, and content creators will appreciate the gain reserve, consistent stepped control, and extended frequency response for clean and detailed recordings.
Features Designed for Modern Recording
Uncompromising Signal Control
The -20 dB pad placed before the transformer protects the input stages and preserves sonic texture on strong sources. Peak indicators help target the sweet spot, whether capturing a clean signal or a slight harmonic push.
Maximum Adaptability
Adjustable input impedance optimizes the response of dynamic, ribbon, and condenser microphones. The +48V phantom power ensures compatibility with condenser mics, while the front-panel DI input avoids repatching and maintains instrument clarity thanks to its very high impedance.
Smooth Workflow

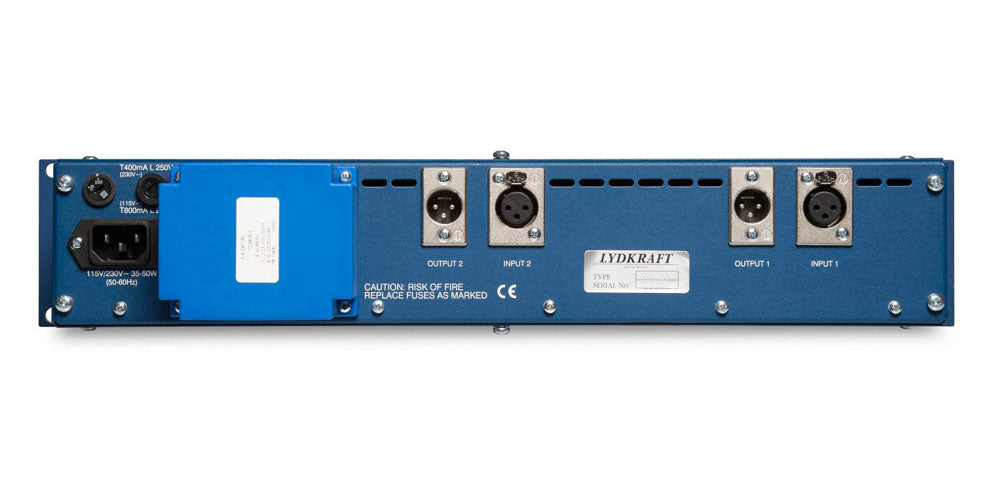

Rear XLR inputs/outputs easily integrate into a patchbay. The 19-inch 2U rack format facilitates installation in any rack, whether in fixed control rooms or mobile setups.
Technical specifications
| Number of channels | 2 | Rack unit | 2 |
| Valve | Yes | ||
| Preamp type | push-pull tube | DI input impedance | >1 MOhm |
| Gain | +10 dB to +70 dB in 2 dB increments | XLR inputs and outputs | rear panel |
| Attenuator pad (pre-transformer) | -20 dB | CMRR | >60 dB @ 10 kHz |
| Phantom power | +48V | Frequency response | 5 Hz - 60 kHz (-3 dB) |
| Peak indicators | yes | Self-noise | 5 dB @ 200 Ohm |
| Microphone input impedance | 600 Ohm / 1.2 kOhm / 2.4 kOhm | Rack format | 19 inches - 2U |
| Instrument input (DI) | front panel | ||
You will also like
Ams Neve
1073OPX
Focusrite
ISA 828 MK2
Universal Audio
6176
Rupert Neve Designs
5025 Dual Shelford mic preamp
Grace Design
M108
Heritage Audio
Super 8
Ams Neve
4081
RME
12MIC-D
Questions frequently asked
Is the Tube Tech MP2A suitable for condenser microphones?
The +48 V phantom power allows the use of condenser microphones. The microphone impedance is selectable between 600 ohms, 1.2 kOhm, and 2.4 kOhm.
What gain range does this tube preamp offer?
The gain ranges from +10 dB to +70 dB, in 2 dB steps. This stepped adjustment enables consistent matching between the two channels.
Can a bass or guitar be connected directly on the front panel?
A front-panel DI input is provided for direct instrument connection. Its impedance above 1 MOhm is suitable for this type of source.
Is the -20 dB pad positioned before the transformer?
The -20 dB pad is placed before the transformer. It protects the input stages when handling strong sources, while the peak indicators help monitor the level. This arrangement preserves the signal's texture.
How much rack space is required to install this preamplifier?
The chassis occupies 2 units in a 19-inch rack. The XLR inputs and outputs are located on the rear for integration into a patchbay.
