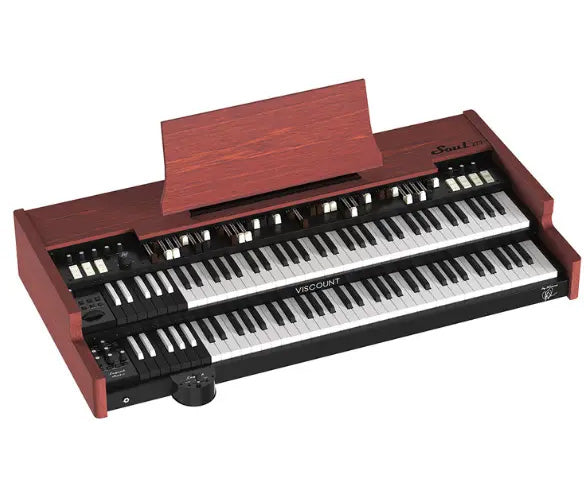

Viscount LEGEND SOUL 273
Regular price
4.777,00 €VAT incl.
0,90 € Ecotax included
Sale price
Reference price
0,90 € Ecotax included
Regular price
Available on order
Store: on order
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Viscount
------------------------
Safety manager:
Email:
Address:
Technical specifications
| Effects | Wah, Tremolo, Reverb, Delay, EQ, Overdrive, Flanger, Phaser, Ring modulation | Split & layer | layer |
| Bluetooth | No | USB to Host port | Yes |
| Controller | Pitchbend, Modulation, Drawbars | Inputs | Expression pedal, XLR (TRS), Line in, Control pedal |
| Velocity sensitive | Yes | Outputs | Leslie, Stereo jack, USB Type B, Mono & stereo audio, 6.5 mm headphone, USB Type A |
| MIDI DIN I/O | Yes | Color | Red |
| Number of keys | 73 | Finishing | Matt |
| Touch | Lightweight | ||
| Type | dual manual organ | Lower | 2 sets of 9 drawbars, 16', 5 1/3', 8', 4', 2 2/3', 2', 1 3/5', 1 1/3', 1' |
| Upper keyboard | 73-note waterfall, 61 + 12 reversed keys format | Upper presets | 9 presets on reversed color keys |
| Lower keyboard | 73-note waterfall, 61 + 12 reversed keys format | Lower presets | 9 presets on reversed color keys |
| Mechanics | digital reproduction of 9-contact mechanics | Pedalboard drawbars | 2 drawbars, 16' and 8' |
| Contact positions | adjustable | Front panel controls | Volume, Keyclick, Crosstalk, Reverb, Drive, Vibrato upper, Vibrato lower, percussion controls, pedalboard sustain |
| Technology | TMT "Tonewheel Modelling Technology" | Side controls | organ model selection, pitch bender, Rotary Bypass, selection and adjustment of additional effects, Tap Time, master EQ, pedalboard parameters |
| Platform | enhanced DSP | Dedicated control | Rotary speed lever |
| Transposition | from -6 to +5 semitones | Switch | half-moon |
| Fine tuning | from 427.5 Hz to 452.9 Hz, ±50 cents | Vibrato/Chorus | V-1, V-2, V-3, C-1, C-2, C-3 |
| Organ models | tonewheel, pipe, and transistor | Rotary amp | Classic, Rock with Direct option, Memphis mode, Bypass |
| Crosstalk | specific to each tonewheel model | Reverb | multiple settings, pre/post rotary configuration |
| Keyclick | advanced reproduction, differentiated over the 9 contacts of the drawbars | Overdrive | quantity adjustment |
| String Bass | on/off with decay adjustment | Additional effects | Ring Modulator, Flanger, Phaser, Wah, Tremolo, Delay |
| Harmonic percussion | on/off, volume Soft/Normal, decay Fast/Slow, 2nd/3rd selection, volume and decay adjustment | Real-time control | two parameters per effect depending on type, including depth, speed, resonance, time, and repeats |
| Upper | 2 sets of 9 drawbars, 16', 5 1/3', 8', 4', 2 2/3', 2', 1 3/5', 1 1/3', 1' | ||
