Viscount LEGEND LM 61

A module designed to expand the Legend One ecosystem

The Legend LM was not designed as a simple auxiliary keyboard. It follows a highly relevant modular approach: start with a single, lightweight, high-performance instrument, then expand it only when the repertoire or context requires it. For a small concert, a single manual may be enough. As soon as the playing becomes more demanding, adding the LM transforms the setup into a genuine dual-keyboard rig, without moving to a bulky and cumbersome configuration.

This approach gives musicians a rare degree of freedom. The Legend One family can therefore meet very different needs: traditional organ playing, a modern setup with sound layers, or a hybrid configuration combining live and studio use. The Legend LM provides this flexibility without breaking with the range's identity: a compact, reliable and visually elegant instrument designed to keep up with today's keyboard players.

Keyboard design

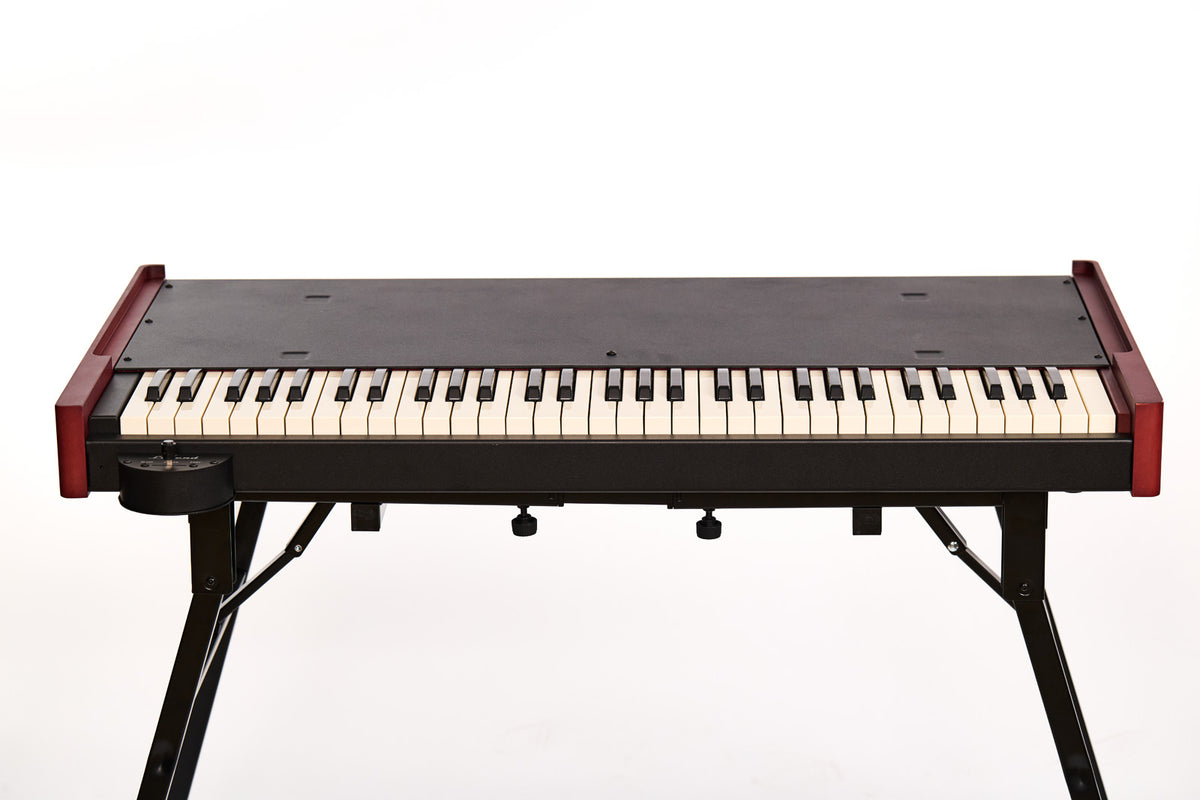

The Legend LM features a 61-key waterfall keyboard ranging from C to C, an ideal design for organ playing, glissandi, palm smears and rapid registration changes. This type of touch provides a direct and fluid response, particularly appreciated by organists and stage keyboard players. The range concept also includes a semi-weighted 73-note configuration ranging from E to E within the Legend One universe, opening the door to particularly interesting asymmetrical setups for musicians who want to combine an organ feel with a wider playing range.

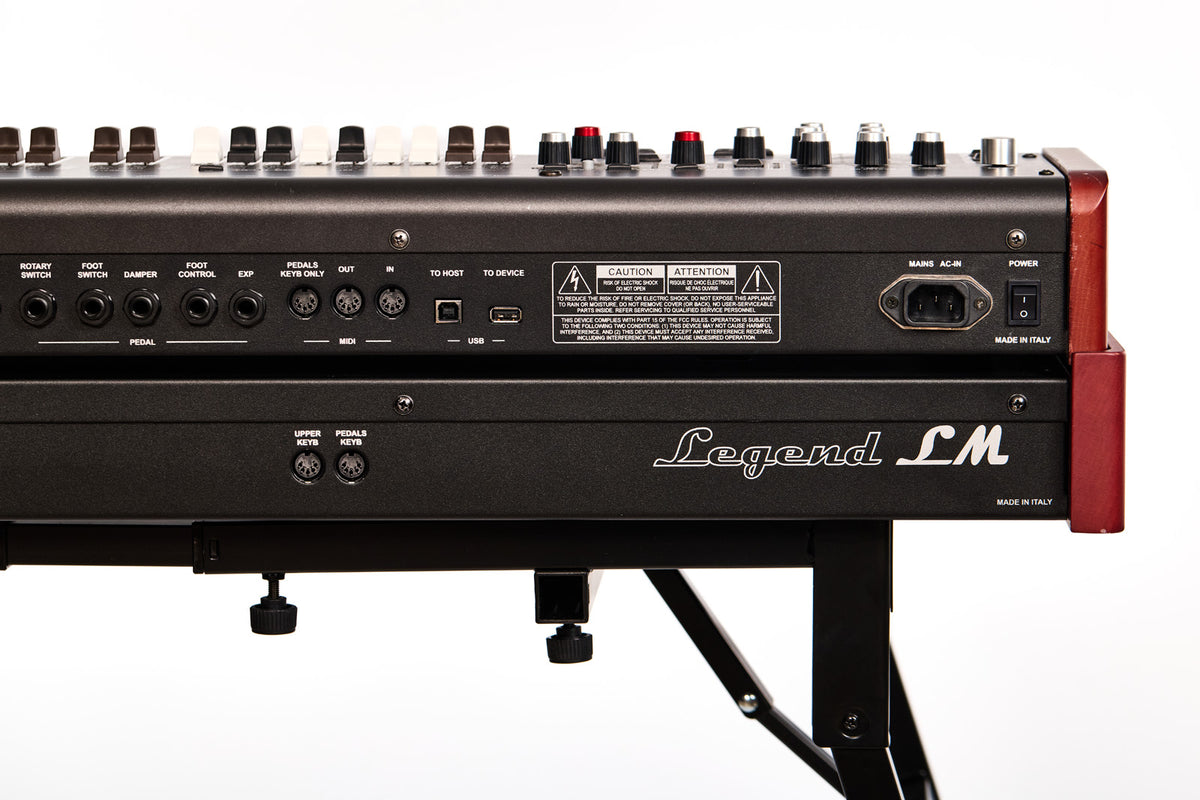

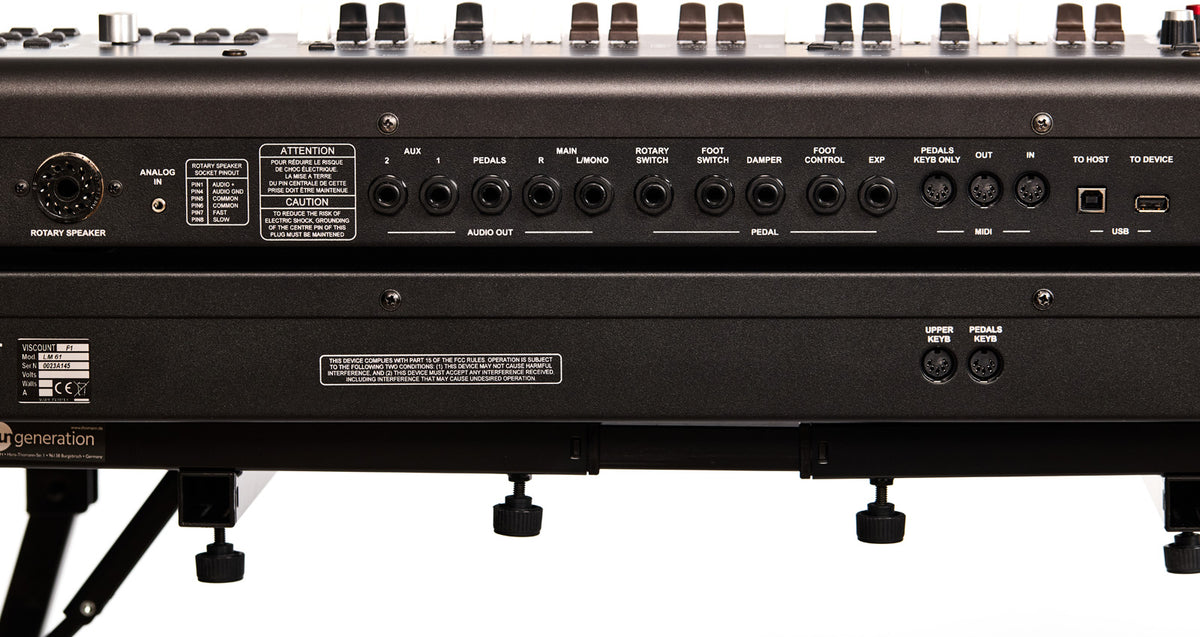

The other major design strength lies in its integration. The included 5-pin MIDI cable transmits both AC power and MIDI messages, considerably simplifying installation. The result: fewer cables, less setup time and a cleaner playing station—an essential benefit for live performances.

Sound quality

The Legend LM does more than simply add a second physical tier: once connected to the Legend One, it allows organ sounds and additional sounds to be assigned to the upper or lower manual according to your needs. All the sonic richness therefore comes from the host instrument, which the LM extends to provide a more expressive and authentic playing experience. The benefits are immediate when alternating between left-hand accompaniment, right-hand solo parts, pads, layers or contrasting registrations.

The sound experience becomes more realistic thanks to the dual-manual approach and the presence of two sets of drawbars in the overall configuration. This results in a more intuitive approach to registration, with faster changes in real-world situations. Polyphony, sound generation and audio output depend on the connected Legend One, while the Legend LM acts as a high-performance control extension that is perfectly consistent with the spirit of the range.

Integrated effects

The Legend LM uses the processing available on the Legend One to which it is connected. Its main benefit is to make these effects more lively during performance, notably through the removable half-moon switch for rotary control, freely assignable sounds on each manual and a more natural organization of textures in performance situations.

Technical specifications

Effects	Rotary speaker emulation	Split & layer	layer, split
Bluetooth	No	USB to Host port	Yes
Velocity sensitive	Yes	Inputs	Line in
MIDI DIN I/O	Yes	Outputs	Midi
Number of keys	61	Color	Black
Touch	Lightweight	Finishing	Matt

Legend LM keyboard type	61 waterfall keys	Rotary control	Removable half-moon switch
Range	C to C	Accessible processing	Legend One processing according to the selected assignment
Mentioned range configuration	73 semi-weighted keys, E to E	Accessories included	Removable half-moon switch
Sound source	Connected Legend One	Compatibility	Legend One only
Sound distribution	Upper or lower manual	Dimensions	93.7 x 49.4 x 9 cm
Configuration in the overall ecosystem	Dual manual with two sets of drawbars	Weight	10.5 kg
Management via the host system	layers, split points and different sound-generation approaches	Extension type	Lower manual for a dual-manual organ configuration
