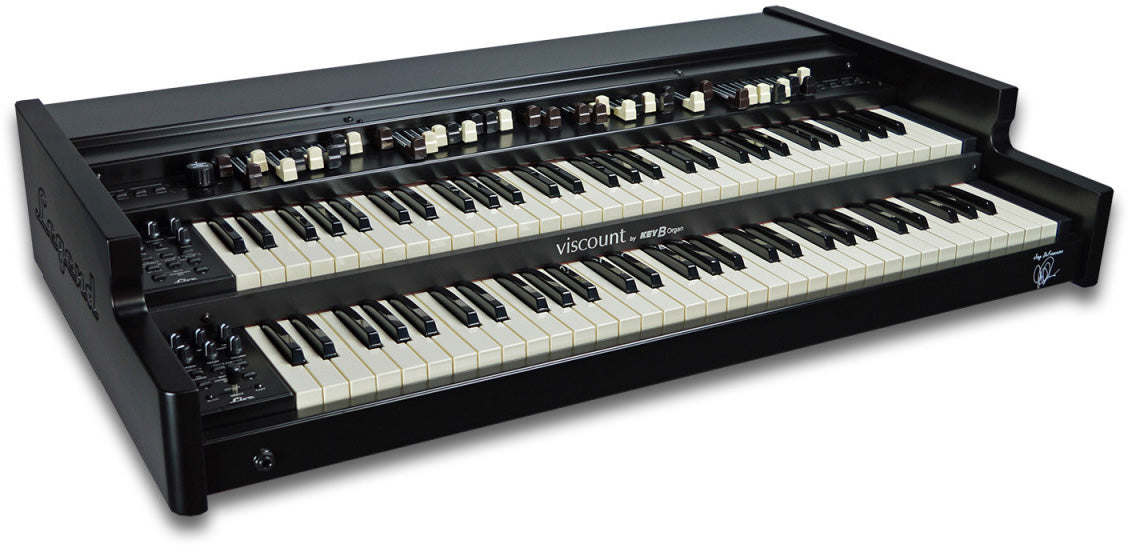

Viscount LEGEND Live Noir

A Modern Tribute to the Great Tradition of Jazz and Soul Organ

The Viscount Legend Live JdF Signature Edition follows in the footsteps of portable organs designed for stage musicians who want to recapture the soul of historic electromechanical instruments without sacrificing practicality. This version pays tribute to Joey DeFrancesco with a dedicated aesthetic and sound settings inspired by three organs from his personal collection, used both in the studio and on stage.

Within the Legend range, this model is clearly aimed at demanding organists looking for an immediate response, full hands-on control and a truly distinctive sound. It is equally suited to jazz, gospel, rock and funk keyboardists, as well as touring musicians in need of a serious, portable instrument that is immediately ready for the stage.

Keyboard Design

The Legend Live features two 61-note waterfall keyboards, with an organ-style touch that is fluid and fast, very different from the light action of a synthesizer or a weighted piano keyboard. This design encourages glissandi, palm smears, rapid repetitions and traditional organ phrasing. The robust construction reinforces the sense of reliability on stage, while the overall ergonomics keep all the essential controls for playing the upper and lower sections within easy reach.

Sound Quality

Tonewheel modelling technology lies at the heart of the instrument and is designed to faithfully reproduce the lively behaviour of classic tonewheel organs. The sound gains depth through the management of key click, harmonic percussion, crosstalk, drive and the various tonewheel models. The JdF Edition adds three organ clones calibrated around Joey DeFrancesco's sonic world, with their associated effects. The whole system is completed by a particularly sophisticated rotary cabinet and amplifier simulation, essential for achieving a convincing, full and musical tone.

Built-in Effects

• Reverb with Hall and Spring variations depending on the sections
• Rotary simulation with "Classic" and "Rock" approaches
• Drive to enhance the tone and saturation
• Vibrato and chorus selectable in multiple positions
• Adjustable key click
• Real-time tone controls
• Crosstalk to enhance the vintage feel
• Harmonic percussion with decay and volume control

Technical specifications

Effects	Reverb, Chorus, Rotary, Vibrato	Split & layer	layer, split
Bluetooth	No	USB to Host port	Yes
Controller	Drawbars	Inputs	Expression pedal, Line in
Velocity sensitive	Yes	Outputs	Analog, 6.5 mm headphone, USB Type A
MIDI DIN I/O	Yes	Color	Black
Number of keys	61	Finishing	Matt
Touch	Lightweight

Type	dual-manual portable organ	Upper controls	volume, reverb, drive, key click, fine tuning, crosstalk, tone controls, sustain pedals, percussion decay, percussion volume
Number of keyboards	2	Lower controls	Hall/Spring reverb, Classic/Rock drive, tonewheel model " 30 ", " 50 ", " 70 ", transpose, Classic/Rock Rotary, pedals to lower
Keys per keyboard	61	Vibrato/chorus	independent upper/lower or combined control
Touch type	waterfall	Half-moon switch	yes
Playing response	fast and suited to organ techniques	Reverb	yes
Pedalboard	compatible with optional 25-note console-format pedalboard	Vibrato	yes
Sound technology	tonewheel modeling	Chorus	yes
Edition	JdF Signature Edition	Rotary simulation	yes
Special voicings	3 organ models cloned from instruments in Joey DeFrancesco’s collection	Amplifier simulation	yes
Character parameters	key click, crosstalk, tonewheel model, drive	Drive	yes
Harmonic percussion	yes	Leslie connector	11-pin
Upper drawbars	2 complete sets of 9	Effects loop	send/return
Lower drawbars	2 complete sets of 9	USB	power or charging
Pedalboard drawbars	2
