Blackmagic Design ATEM Mini Pro
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years

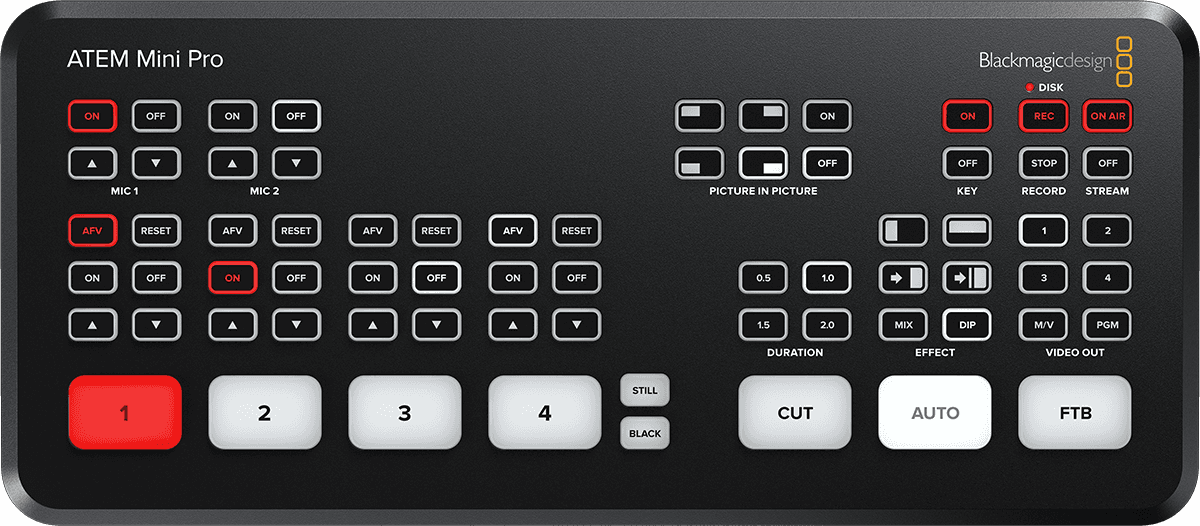

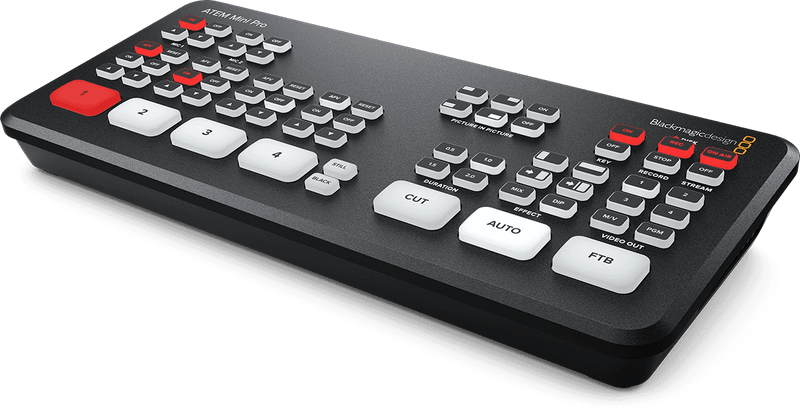

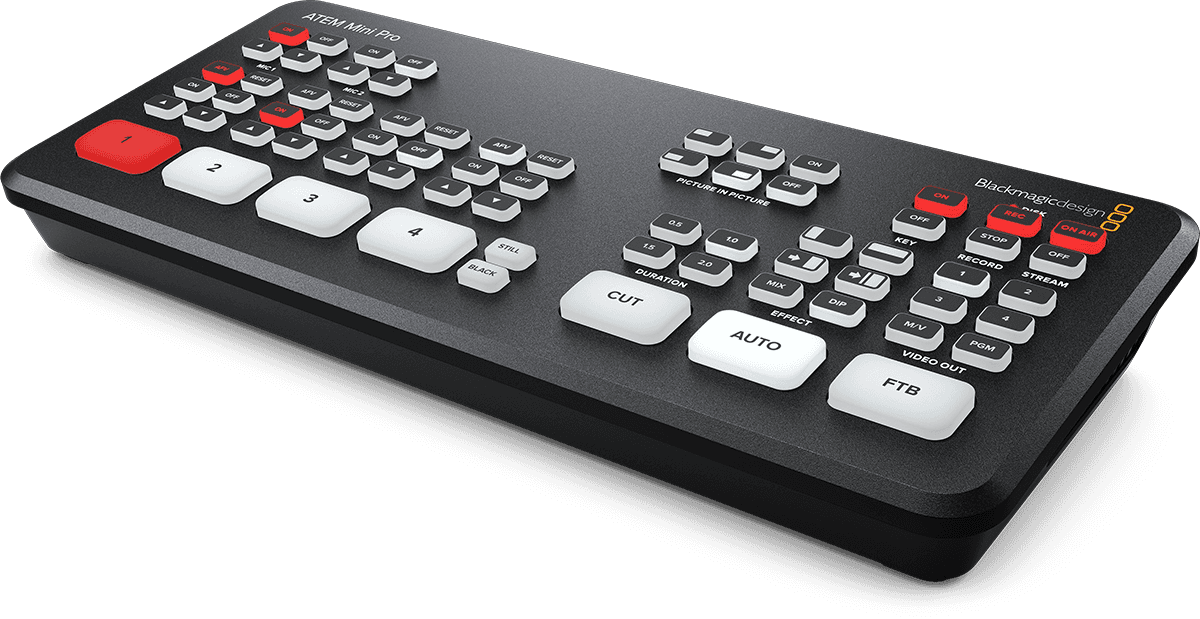

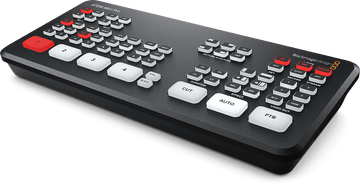

Essential Information About the Blackmagic ATEM Mini Pro Video Mixer
Essential Information About the Blackmagic ATEM Mini Pro Video Mixer
- 4 HDMI inputs with built-in synchronizers and format/frequency converters for plug-and-play multicam.
- Standalone streaming in H.264 via Ethernet + direct recording in H.264/AAC on USB-C for simple and reliable workflows.
- Built-in Multi View: preview of 4 cameras, "Preview/Program", streaming/recording status, and audio meters.
- Advanced Fairlight audio: 6-band parametric EQ, compressor, gate, and limiter for clear, low-latency mixing.
Manufacturer Information
Blackmagic Design
https://www.blackmagicdesign.com
------------------------
Safety manager:
Email:
Address:
From the ATEM Mini to the ATEM Mini Pro: the leap to broadcasting
A direct evolution of the ATEM Mini, the ATEM Mini Pro integrates a hardware encoder for IP streaming, Multi View, and native USB recording. It retains the ergonomics of the range while adding features previously reserved for larger control rooms, ideal for professionalizing your live broadcasts.For creators, education, and corporate use
Whether you are a streamer, trainer, association, or house of worship, this switcher centralizes video switching, audio processing, and broadcasting in a desktop format. Connect your cameras, a lavalier microphone, a computer for slides, and go live in seconds without a dedicated PC or capture card.Technical specifications

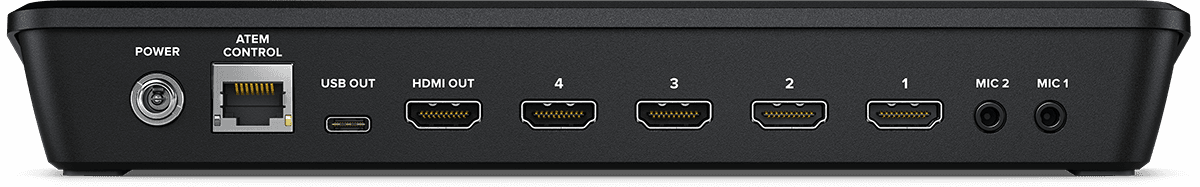

| Category | mixer | Inputs | 4x HDMI, 2x stereo mini-jack |
| Video format | 1080i60 | Ports | USB-C, RJ45 |
| Video processing | 10-bits | Weight | 550 g |
| Outputs | HDMI | Dimensions (mm) | 237,5 x 103,5 x 35 |
| Upstream keyers | 1 | Total layers | 5 |
| Downstream keyers | 1 | Pattern generators | 1 |
| Advanced chroma key | 1 | Color generators | 2 |
| Linear/luminance keyers | 2 | DVE with borders and shadows | 1 |
| Transition keyer | DVE only | Interface | minimum monitor resolution 1366 x 768 |
You will also like
Rode
RodeCaster Video S
Elgato
Stream Deck + XL
Blackmagic Design
Atem SDI
Blackmagic Design
ATEM Mini Pro ISO
Blackmagic Design
ATEM Micro Camera Panel
Blackmagic Design
Ultimatte 12 HD Mini
Rode
Rodecaster Video
Elgato
Stream Deck +
Customer reviews
Based on 2 reviews
- 5 stars, 2 reviews
- 4 stars, 0 reviews
- 3 stars, 0 reviews
- 2 stars, 0 reviews
- 1 star, 0 reviews
The review form didn't open. Please try again.
-
This product does the job. Unfortunately, streaming and recording is not possible with a single USB C port.
Automatically translated
-
Unbelievable! A video control room has this price!
Automatically translated
No reviews match this filter.
Reviews can't be loaded right now. Please try again.
Automatically translated
Questions frequently asked
Can the ATEM Mini Pro stream a concert live without a dedicated computer?
The H.264 hardware encoder ensures RTMP streaming via the 10/100/1000 BaseT Ethernet port without a dedicated PC. Streaming is available up to 1080p60 depending on supported frame rates.
How many HDMI cameras can be connected for a musical live show?
The 4 HDMI type A inputs accept 10-bit HD signals with embedded 2-channel audio. Synchronization and frame rate/format conversion are handled on each of the 4 inputs.
Is it possible to record a live set directly with the ATEM Mini Pro?
External recording is possible via the USB-C 3.1 Gen 1 port onto an SSD in .mp4 format. This USB-C interface can also serve as a webcam output and connection to the control software.
What audio connections are available on this mixer?
Two 3.5 mm stereo mini-jack inputs allow connection of external audio sources. The audio output is embedded only in the video signal.
Does the ATEM Mini Pro support picture-in-picture and green screen effects?
Processing includes 1 DVE with borders and shadows for picture-in-picture, as well as advanced chroma keying. There is also an upstream keyer, a downstream keyer, and 2 linear/luminance keyers. The onboard media pool can store 20 images for logos and titles.
