Dap Audio IMIX-7.3
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Essential Information About the IMIX IMIX-7.3 Mixing Console
Essential Information About the IMIX IMIX-7.3 Mixing Console
- Compact mixing with 3-zone control: independent management of music, volume, and equalization according to the area to be amplified.
- Advanced source routing: each input can be routed to the desired output, ideal for multiroom and fixed installations.

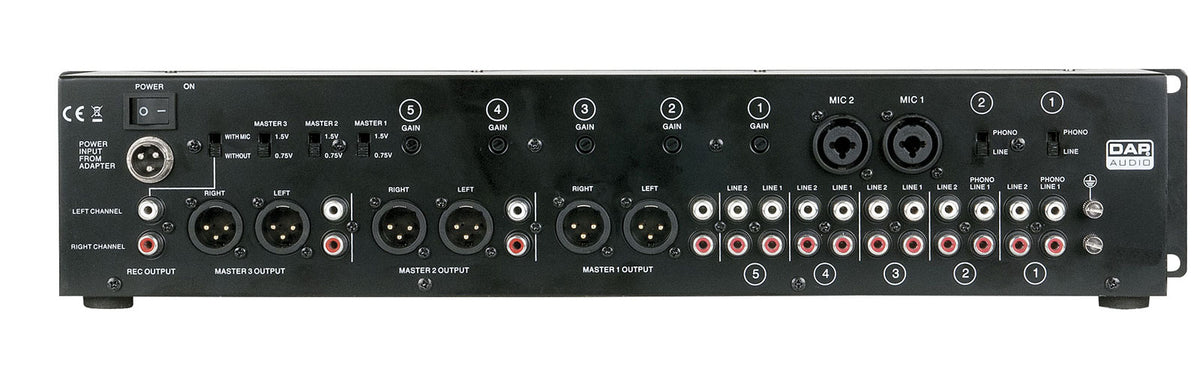

- Comprehensive connectivity: combi XLR jack microphones, numerous RCA line inputs, phono inputs, balanced XLR master outputs.
- Master and microphone equalization: dedicated 3-band settings to quickly adapt the sound to the room and voices.
Manufacturer Information
Dap Audio
https://www.highlite.com
ventes@highlite.com
------------------------
Safety manager:
Highlite International BV
Email: ventes@highlite.com
Address:
An Evolution Designed for Multi-Zone Management in a Rack Format
The IMIX-7.3 offers exactly the same functions as the IMIX-7.1, while adding a key advantage for audio installations: the ability to route each input to the desired output. As a result, you have a compact mixing console focused on "installation," capable of controlling multiple areas from a single control point while maintaining simple and effective ergonomics.
Who is the IMIX-7.3 Most Suitable For, and In What Applications?
The IMIX-7.3 is primarily aimed at installers, sound engineers, and venue operators who need reliable and flexible sound distribution: bars, restaurants, multipurpose rooms, event spaces, retail stores, gyms, or multiroom installations. It is also very relevant for a mobile DJ or host who must manage several zones during an event, for example, a main room, a lounge area, and a reception zone, with levels and equalization adapted to each atmosphere.
Technical specifications
| Type | analog Compact | Rackable | Yes |
| USB stereo recording / playback | No | ||
| Line inputs | 11, RCA | Frequency response | 20 Hz - 20 kHz |
| Phono inputs | 2, RCA; 1, 3.5 mm jack | T.H.D. | less than 0.05 percent |
| REC output | 1, RCA | Power supply | 230 V AC, 50 Hz |
| Headphone input | 1, 6.3 mm jack | Power consumption | 21 W |
| Master equalization | 80 Hz, 1 kHz, 12 kHz, -12 dB +12 dB | Dimensions | 481 x 88 x 95 mm (W x H x D) |
| Mic equalization | 80 Hz, 1 kHz, 12 kHz, -12 dB +12 dB | Weight | 2.8 kg |
You will also like
Numark
M6USB
Behringer
DDM4000
Dap Audio
Audio Compact 6.2
Dap Audio
IMIX-5.3
RELOOP DJ
RMX-44 BT
OMNITRONIC DJ
TRM-402MK3 - 4- CHANNEL ROTARY MIXER
Union Audio
ELARA.6 Rotary Fader Pack for all ELARA.6 Mixers
Dap Audio
Core Club
Questions frequently asked
Can the Dap Audio IMIX-7.3 manage three audio zones?
Each input can be routed to the desired output to control up to three broadcast zones. This configuration allows adjusting levels and equalization according to the spaces.
What sources can be connected to this rackmount mixer?
The connectivity includes combo XLR/jack microphone inputs, RCA line inputs, and RCA and 3.5 mm mini-jack phono inputs. Players, receivers, computers, and turntables can be connected this way.
Are the master outputs balanced?
The master outputs use balanced XLR connectors, suitable for long cable runs in fixed installations.
What equalization does the IMIX-7.3 offer?
Both the master equalization and the microphone equalization have three bands at 80 Hz, 1 kHz, and 12 kHz. Each band offers an adjustment range from -12 dB to +12 dB.
What are the dimensions of the Dap Audio IMIX-7.3 for a rack?
The rackable format measures 481 x 88 x 95 mm (width x height x depth) and weighs 2.8 kg. The power supply operates at 230 V / 50 Hz, consuming 21 W. The stated frequency response ranges from 20 Hz to 20 kHz.
