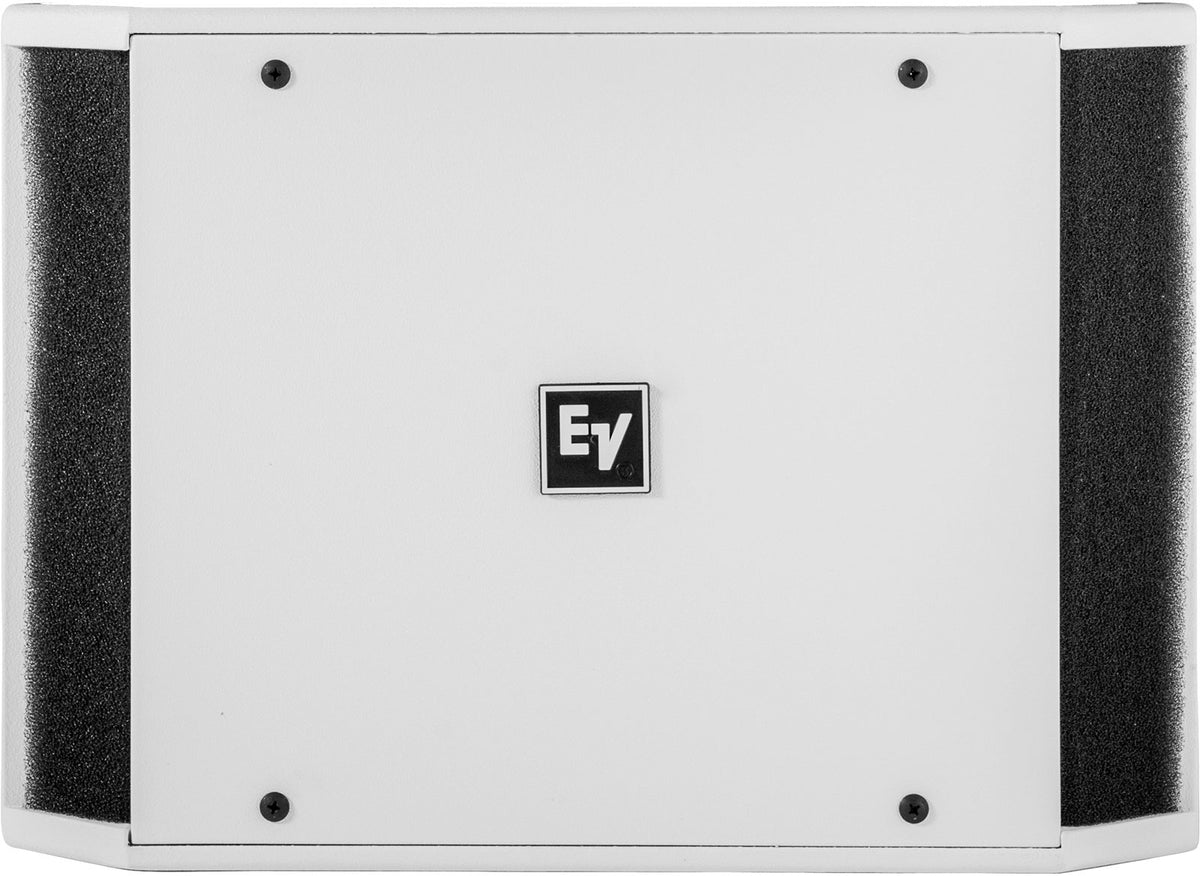

Electrovoice Evid S12 1W

A Subwoofer Designed for EVID Installations: Range Consistency and Discreet Integration

The EVID-S12.1W fits the spirit of the EVID series, a range focused on installations where the goal is clear: controlled sound dispersion and aesthetic integration without complicating deployment. As a compact subwoofer, it naturally complements EVID speakers when you want to add depth to background music, increase impact on dynamic programs, or simply relieve the main speakers from the lowest frequencies. Its white version facilitates a discreet visual integration in environments where equipment discretion is a key selection criterion.

Who Is It For and What Are Its Uses? Reliable Bass Reinforcement Indoors and Outdoors

This subwoofer is aimed at integrators, installers, and operators looking for a passive low-impedance subwoofer capable of delivering present and clean bass in various contexts. It is particularly suitable for bars, restaurants, shops, reception areas, multipurpose rooms, leisure venues, or covered outdoor zones-anywhere a stronger low end is desired without moving to a bulky format. With a stated frequency response of 40 Hz to 140 Hz (-10 dB), the EVID-S12.1W serves as an effective reinforcement for contemporary music, background playlists, and multimedia content, while remaining consistent with a multi-speaker EVID series installation.

Performance and Design: Impact, Control, and Simplified Installation

12-inch Driver for Convincing Bass Foundation

The EVID-S12.1W features a 12-inch (305 mm) low-frequency driver. This size offers a good compromise between compactness and air displacement capability, providing a sense of depth and punch where standalone loudspeakers may reach their limits. In practice, this results in a clearer low end, more comfortable listening at equivalent levels, and better rhythm perception, especially in passageways or open spaces.

Sound Level and Power Handling for Demanding Environments

Designed to operate at low impedance, this subwoofer has a sensitivity of 104 dB and a maximum sound pressure level of 127 dB (up to 133 dB peak ). The rated power is 200 W (up to 800 W peak ), allowing headroom for demanding programs, provided the subwoofer is paired with suitable and properly adjusted amplification. With an impedance of 8 Ohms, it easily integrates into many fixed installation amplification configurations.

Practical Connectivity and Included Wall Mount

For quick and secure integration, the EVID-S12.1W uses spring-loaded connectors (spring terminal), a common choice in installations to save wiring time and reduce handling. The wall-mount accessories are included, a tangible advantage for optimally positioning the subwoofer according to the venue's acoustics, desired coverage, and space constraints, while maintaining a clean and discreet installation. Finally, its white finish easily blends with light-colored walls and ceilings typical of commercial spaces.

Technical specifications
