HK Audio FO-5W

FINEO: a range dedicated to fixed indoor installations

FINEO is a range specifically designed for permanent indoor sound reinforcement installations. Developed from feedback by integration professionals, it emphasizes sound quality, solution consistency (passive full-range speakers and subwoofers), as well as ease of daily implementation. Available in standard black and white finishes, the series aims for a clean, durable, and scalable installation with a particularly attractive quality/price ratio.

For which uses and locations?

This 5-inch passive 2-way coaxial speaker is designed for projects where visual discretion must go hand in hand with controlled sound distribution: retail stores, restaurants, multipurpose rooms, schools, places of worship, reception halls, and sports complexes. Its wide directivity (110 degrees horizontal and 110 degrees vertical) facilitates coverage of extended listening areas, while its compact size allows for wall or ceiling mounting without cluttering the space.

Designed for quick integration and consistent distribution

2-way coaxial architecture: intelligibility and coherence

The coaxial configuration combines a 5-inch driver and a 1-inch tweeter on the same axis to achieve a stable sound image and a more homogeneous response in the listening area. The result: clear reproduction with good intelligibility, particularly useful for voice, announcements, background music, as well as more sustained playback.

Deployment tools: DSP presets and simulation

To save time on site and ensure reliable results, the series offers DSP presets for Lab.gruppen IPX and LEA Professional platforms, as well as settings for other environments. Simulation data in GLL format, compatible with EASE and EASE Focus, allow anticipating coverage and optimizing placement before installation.

Robustness and peace of mind in public environments

Built to last, the speaker features an MDF structure and a reliability-oriented design. It is rated as ball impact resistant and meets the requirements of the German DIN 18032-3 standard, a major asset for gymnasiums and environments subject to physical constraints.

Technical specifications

Category	installation	Impedance	8 Ω
Type	passive speaker	SPL Max / peak	112 dB
Insert type	6 x M6	Input sensitivity (1W/1m)	87 dB
Peak power	400 W	SPL max	109 dB
Peak power, type	RMS	Speaker structure	MDF

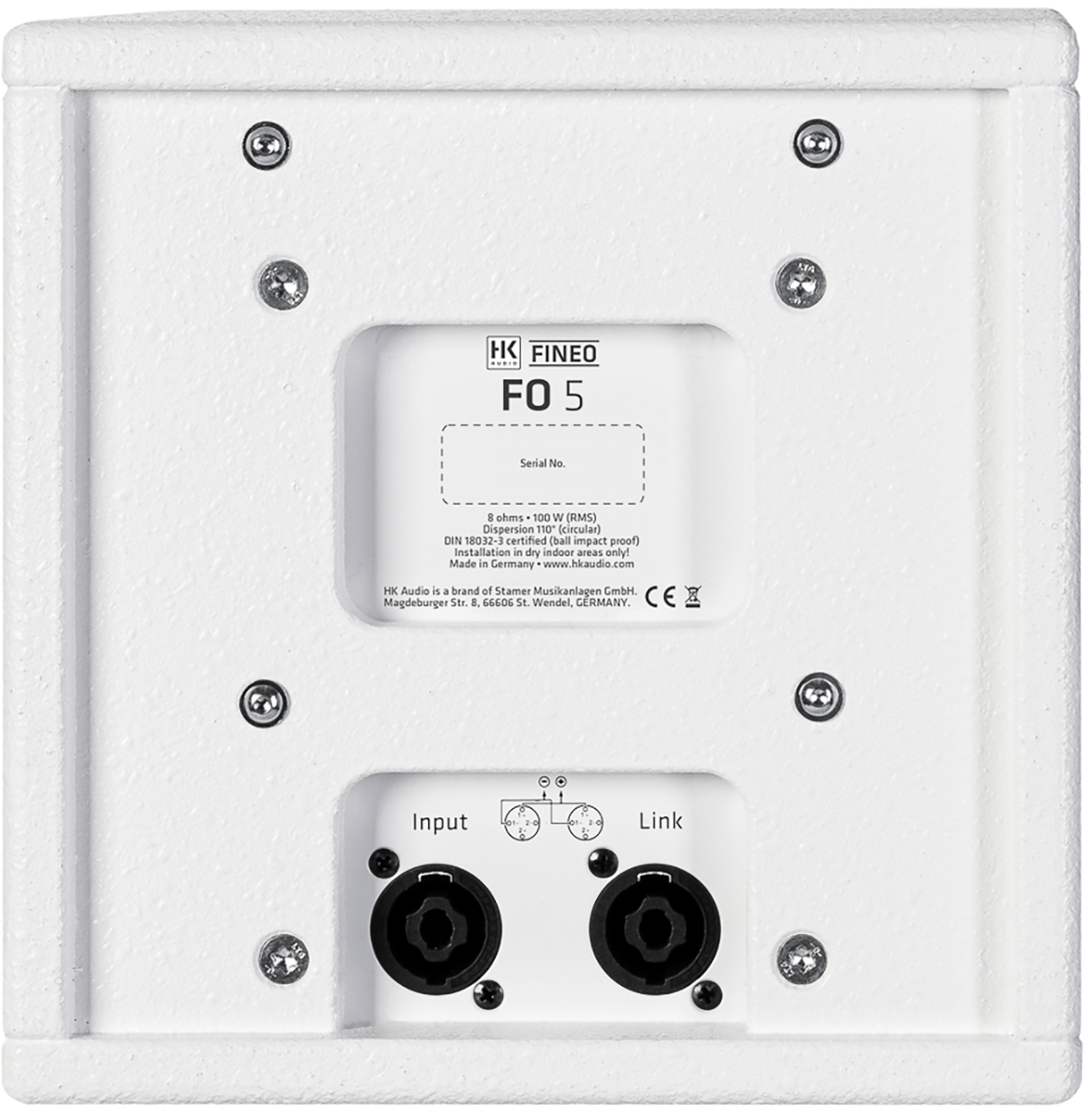

Number of channels	2 channels	Inputs	1 x NL4 (speakON compatible)
Recommended amps	150 W	Outputs	Speakon
Connection	2 x NL4	Color	White
Speaker diameter	5"	Power output	100 W
Tweeter	1"	Weight	4.2 kg
Horizontal dispersion in degrees	110.0000	Dimensions (mm)	195 x 195 x 195
Vertical dispersion in degrees	110.0000

Power	100 W	Driver diameter	5 inches
Recommended amplifier	150 W	Horizontal dispersion (degrees)	110
Max SPL	109 dB	Vertical dispersion (degrees)	110
Max/peak SPL pressure	112 dB	Connectors	2 x NL4
Sensitivity; input	87 dB	Mounting	2 x M6 (side), 4 x M6 (rear)
Frequency response -6 dB	81 Hz - 20 kHz	Dimensions	195 x 195 x 195 mm
Number of ways	2-way
