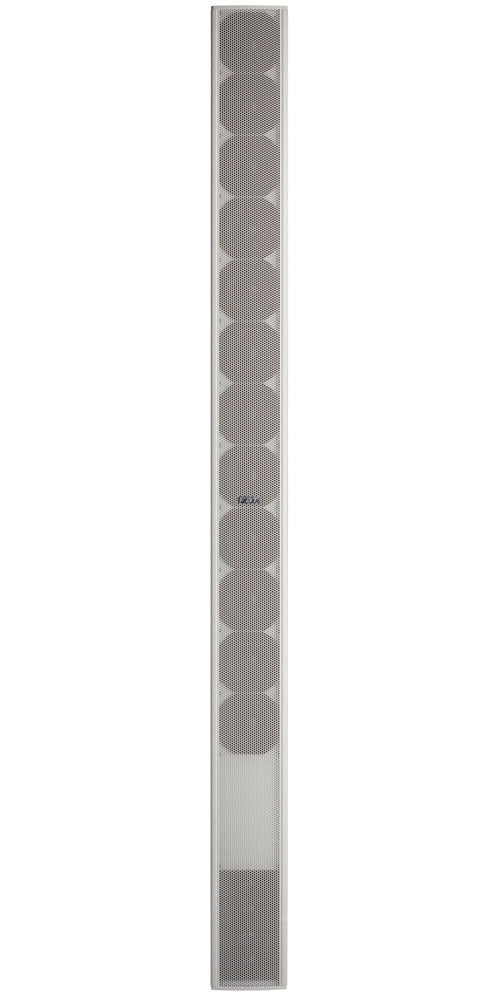

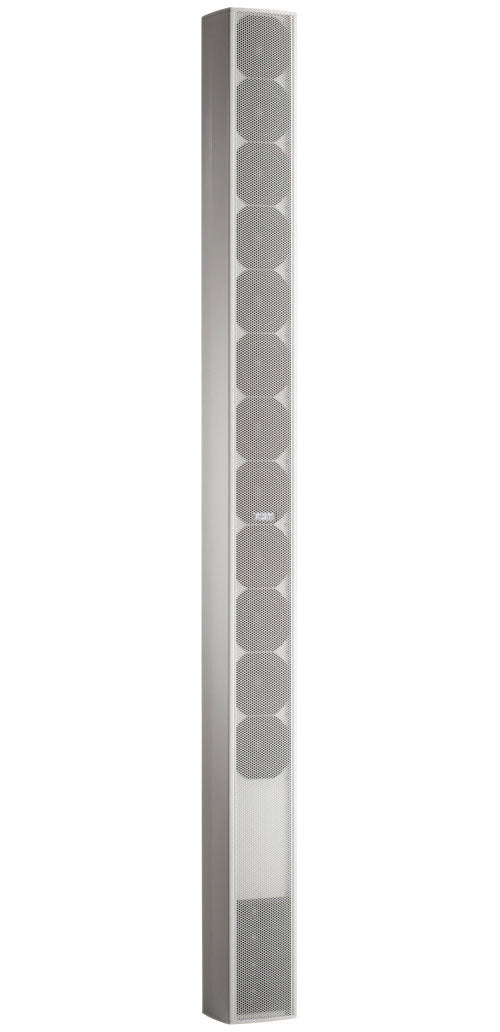

FBT Install Vertus DLA 1244A

A loudspeaker designed for sound cover control

This powered loudspeaker stands out through its clearly focused approach to sound projection control. Its vertical format, multi-driver configuration and motorized directivity make it a particularly suitable solution for spaces where intelligibility, throw and cover precision are essential criteria. It naturally fits into modern installations requiring both power, visual discretion and adjustment flexibility.

With its slim profile and active design, this model meets the needs of system integrators, technical service providers and venue operators looking for a loudspeaker capable of adapting to different installation constraints. Its positioning is part of an advanced sound reinforcement approach, where a simple wide-dispersion system is no longer sufficient to effectively control sound energy within the room.

Who is this directional active loudspeaker designed for?

This type of loudspeaker is primarily intended for professional sound reinforcement users, audiovisual integrators and operators of public venues. It is ideally suited to conference rooms, cultural venues, event spaces, religious establishments, auditoriums, halls and fixed installations requiring precise and even sound cover.

It is also highly relevant for live or corporate events where vocal clarity and control of sound radiation are priorities. Thanks to its directivity settings, it helps optimize listening for the audience while limiting unwanted reflections from certain surfaces. It is a choice solution for users looking to go beyond a conventional powered loudspeaker, with finer control over the system's acoustic behavior.

Motorized directivity, integrated DSP and integration connectivity

One of this loudspeaker's major advantages is its motorized directivity, a genuine asset for adjusting sound dispersion according to the venue's architecture. The tilt angle setting allows the sound beam to be aimed more precisely, while the beamwidth helps manage the cover opening. In practice, this means better targeting of the listening area, more even sound dispersion and greater ease of use in complex spaces.

Its 16 x 40 W RMS Class D amplification powers a configuration comprising 12 4-inch loudspeakers for the low and low-mid frequencies, complemented by 4 1-inch loudspeakers for the high frequencies. This architecture promotes articulate, dynamic and intelligible reproduction. With a frequency response of 160 Hz to 20 kHz at -6 dB, a 3 kHz crossover and a maximum SPL of 127 dB, this loudspeaker is designed for applications where the message must remain clear, even at sustained levels.

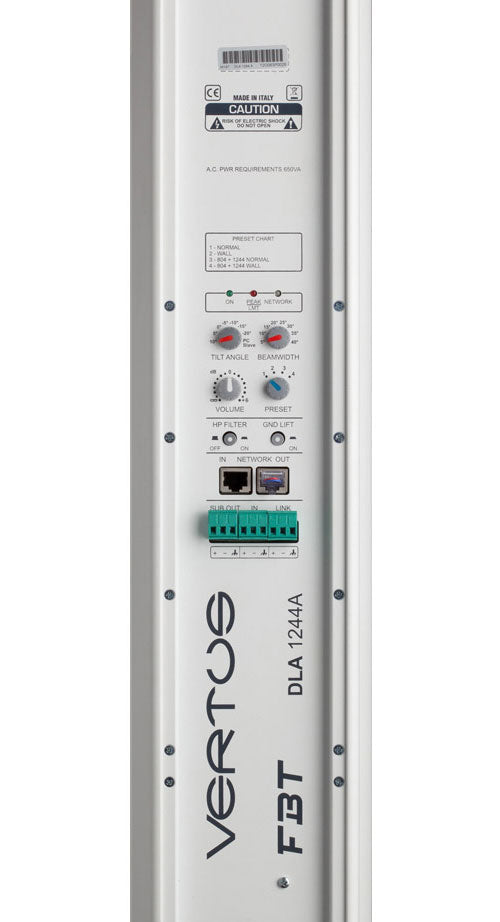

The integrated DSP provides 4 presets, making it easy to quickly adapt the loudspeaker's behavior to different installation contexts. In terms of connectivity, the presence of RJ45 inputs and outputs, along with Euroblock connectivity featuring an input, link output and sub out, facilitates integration into a complete system. The package is rounded out by a volume control and a 22 kohm input impedance, ensuring straightforward and consistent operation in a professional environment.

Technical specifications

Bluetooth

No

Type	powered speaker	LF loudspeakers	12 x 4 inches
Amplifier	Class D	HF loudspeakers	4 x 1 inch
Power	16 x 40 W RMS	DSP	4 presets
Frequency response at -6 dB	160 Hz - 20 kHz	RJ45	input + output
Maximum SPL	127 dB	Euroblock	input + link output + sub out
Crossover	3 kHz	Dimensions	1685 x 131 x 130 mm
Input impedance	22 kohm	Weight	22 kg
