HK Audio L5MKII-308LTA

LINEAR 5 MKII: the optimized version of a provider's reference

Designed and manufactured in Germany, the HK Audio LINEAR 5 MKII series modernizes a range recognized in live and event sound reinforcement. The goal is clear: to gain in compactness and lightness to speed up setups, while integrating a powerful DSP and network control adapted to field requirements. The philosophy of the range also facilitates the management of a complete system, including when integrating speakers without DSP, and pairing with the recent subwoofers of the series, designed for more controlled low-frequency configurations.

A front speaker for bands, DJs, and demanding providers

The HK Audio L5MKII-112FA targets front of house use for concerts, corporate events, and mobile performances where reliability, sound pressure, and consistent coverage are essential. Its approach is focused on "efficiency": an active speaker that is simple to deploy, capable of maintaining a solid level, and precise enough to preserve the clarity of voices and instruments.

On a single stand, in stereo pairs, or in flown configurations, it adapts to installation constraints while maintaining a rational workflow daily. The asymmetric directivity helps concentrate energy on the listening area, improving intelligibility and limiting certain unwanted reflections depending on the venue.

Network DSP, controlled coverage, and simplified workflow

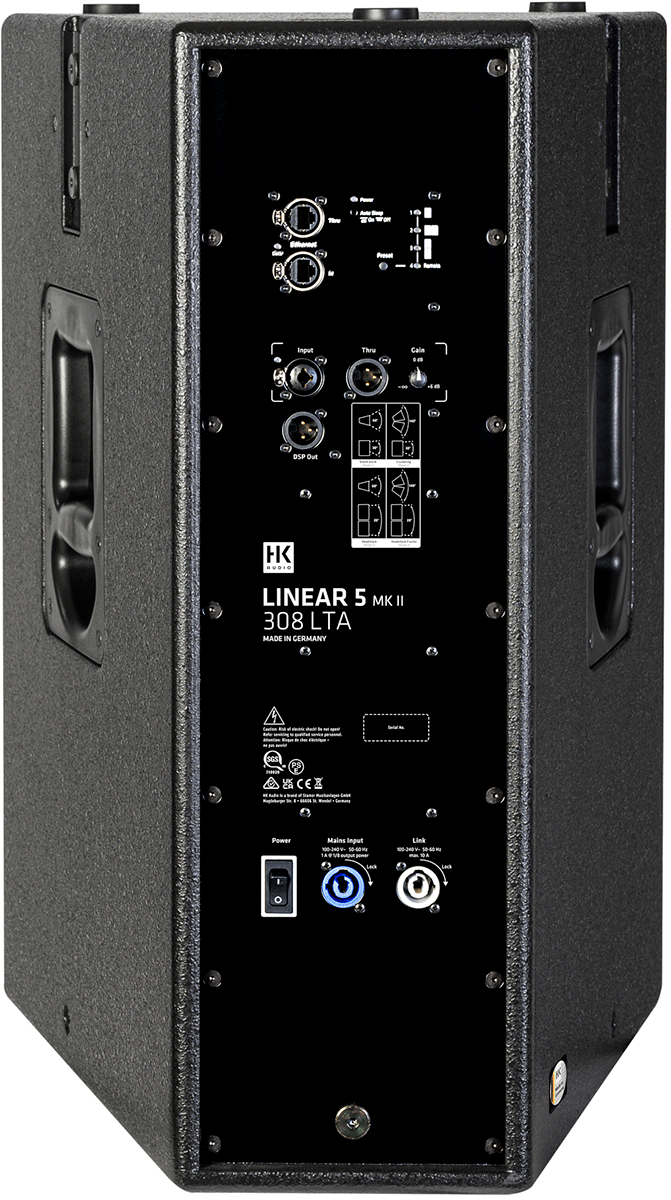

Centralized control via RJ45

Thanks to the RJ45 port and dedicated software, you can access essential settings without moving: volume, input gain, equalization, and delay. During a performance, this is a real time saver to adjust a system from the mixing desk, validate a scene recall, or fine-tune a correction according to the room. The presets speed up startup and promote stable reproduction from one event to another.

The presence of a XLR DSP output simplifies chaining and integration into a LINEAR 5 MKII system, even when mixing different diffusion elements in the same configuration.

Asymmetric directivity: more energy on the audience

The asymmetric horn 60deg x +5deg/-25deg is designed for typical front-of-house situations: low stage, standing audience, or speaker installed higher than ideal. By more finely directing vertical projection, the L5MKII-112FA helps homogenize the mix over the listening area and limits "spraying" onto less useful surfaces (ceiling, upper walls), which can contribute to a cleaner and more direct perception, especially in reverberant rooms.

Technical specifications

Battery	No	Vertical dispersion in degrees	5.2500
Frequency response - start	105 Hz	DSP	Yes
Frequency response - end	17 kHz	EQ	No
Category	Soundsystem	Cut-off frequency	1,7 kHz
Type	active speaker	Baseplate width	35 mm
Speaker protection type	Power limiter	Cutaway	No
Insert type	M8	SPL Max / peak	138 dB
Peak power	1200 W	SPL max	133 dB
Peak power, type	RMS	Speaker structure	MDF
Number of channels	2 channels	Transport	2 handles
Amplification	Active amplified	Inputs	combo XLR/jack, RJ45
Application	Facade	Outputs	link XLR, XLR DSP
Auto-standby	No	Color	Black
Bluetooth	No	Finishing	Wood
Connection	Combo, XLR Link, RJ45, XLR	Power output	600 W
Controls	volume, input gain, delay, equalization	Quantity	1
Speaker diameter	8"	Mounting	On stand or aerial
Number of speakers	3	Weight	25 kg
Tweeter	1"	Dimensions (mm)	440 x 680 x 460
Horizontal dispersion in degrees	60.0000

Amplified	Yes	Dispersion (H x V)	60deg x +5deg/-25deg
Power	600 W	Max SPL	133 dB
RMS / peak power	1,200 W	Max SPL pressure / peak	138 dB
Number of ways	2-way	Connectors	Link XLR, RJ45, XLR
Driver diameter	3 x 8"	Finish	Black lacquer
Crossover frequency	1.7 kHz	Base width	35 mm
Frequency response	105 Hz - 17 kHz	Weight (kg)	25 kg
