Lr Baggs M1
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years

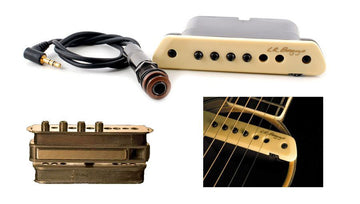

Essential Information About the LR Baggs M1 Soundhole Pickup
Essential Information About the LR Baggs M1 Soundhole Pickup
- Warm and natural sound : captures both the vibrations of the strings and the top for a more "alive" acoustic tone
- Three-Dimensional Dynamic Technology : a triaxial design that enriches the signal while staying true to your playing
- Quiet humbucker : eliminates hum with a clean output, ideal for stage use
- 100% passive, easy to install : mounts in the soundhole with simple adjustments and strong feedback resistance
Manufacturer Information
Lr Baggs
https://www.lrbaggs.com
sales@lrbaggs.com
------------------------
Safety manager:
HIGH TECH DISTRIBUTION
Email: pro@htd.fr
Address:
A Design Unlike Standard Humbuckers
The LR Baggs M1 has become a benchmark among many musicians because it doesn't just "read" the strings: it also conveys the acoustic character of the instrument. Its secret lies in the Three-Dimensional Dynamic Technology, developed by Gary Garret and Lloyd Baggs. Whereas a classic vertical humbucker uses a second coil solely to cancel noise (sometimes at the expense of tone), the M1 takes a more musical approach.
For Stage, Studio, and Demanding Guitarists

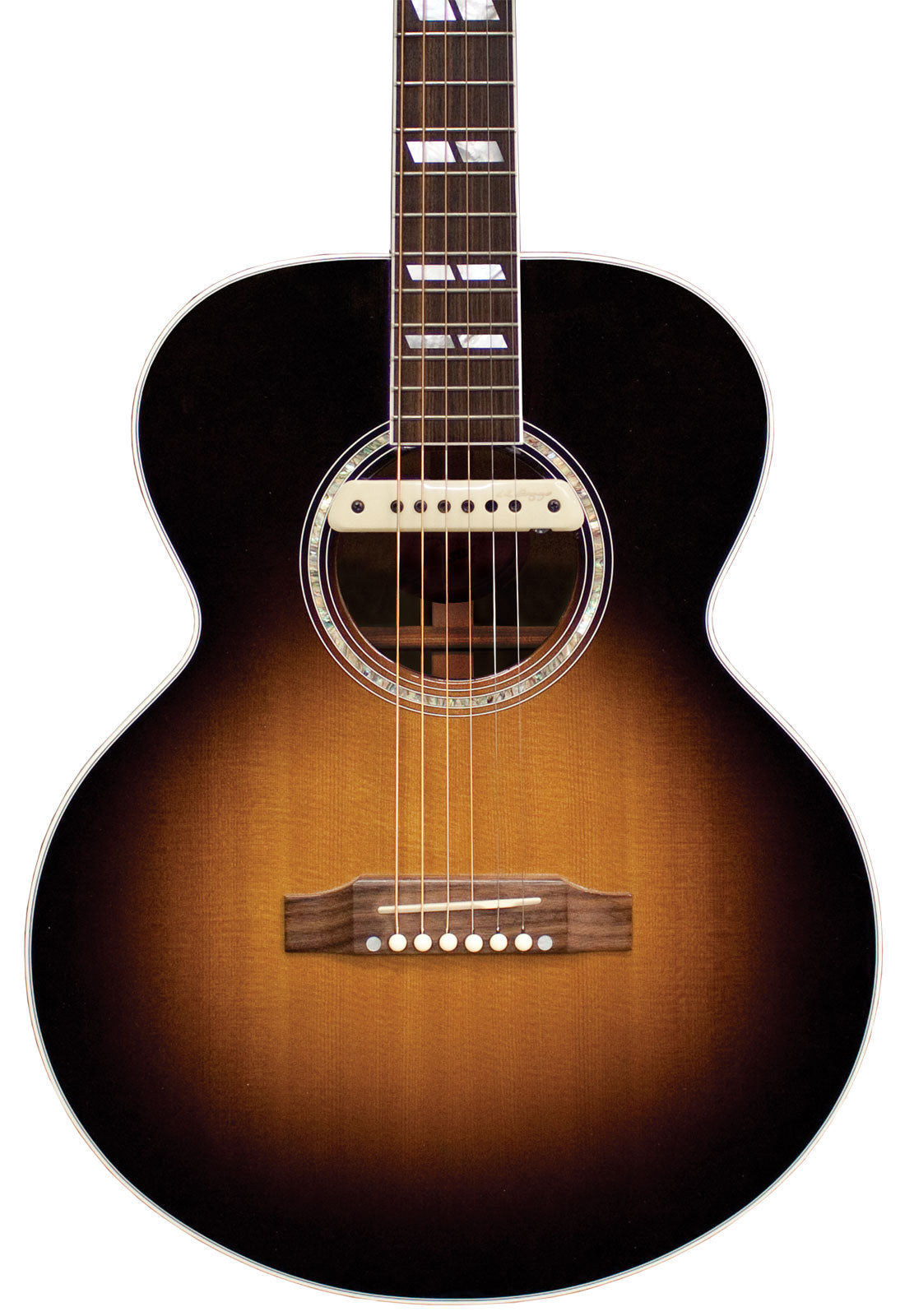

The M1 is designed for the acoustic guitarist who wants a reliable, quiet, and feedback-resistant pickup without heavy installation. It mounts directly in the soundhole, and its strap button jack replaces the original strap button: a practical solution for amplified playing in rehearsals, on stage, or in recording, while preserving your guitar's feel and dynamics.
Triaxial, Passive, and Rich in Dynamics: Adding Top Vibration
In the M1, the noise-cancelling coil is suspended beneath the main coil via a mount that allows it to respond in three dimensions. The main coil reacts to the top and generates a signal in the second coil: this interaction produces a more organic sound, as if you had two pickups in the soundhole. The whole system remains passive, with adjustable poles to fine-tune the balance string by string and adapt the pickup to your instrument.
Technical specifications
| EQ | No | Instrument | folk guitar |
| Category | magnetic microphone | Color | Beige |
| Type | double coil, passive microphone, rosette | ||
| Technology | Three-Dimensional Dynamic Technology (Gary Garret and Lloyd Baggs) | Installation | the pickup is placed in the soundhole |
| Operation | passive | Output | jack strap button (replaces the original strap button) |
| Hum-Free | no hum | Supplied with | one M1 pickup |
| Pole Pieces | adjustable | Notes | available in an Active version (2LM1ACTIF ) and an Active Left-Handed version (2LM1ACTIFLEFT ) |
| Sound Reproduction | a combination of string vibration and the guitar body | Artists | Coldplay, Jabe Beyer, Feist, Christopher Hawley, Paul Simon, Yellowcard, Keith Urban, Gavin Rossdale, Madeline Peyroux, Bob Minner |
You will also like
Fishman
RARE EARTH BLEND SOUNDHOLE PICKUP
Lr Baggs
Easvtc
Lr Baggs
ANTHEM-sl
Lr Baggs
ELEMENT ACTIVE SYSTEM FOR ACOUSTIC GUITAR
Lr Baggs
HIFI - High Fidelity Bridge Microphone
Lr Baggs
ANTHEM-slcl
Fishman
MATRIX INFINITY MIC BLEND NARROW FORMAT
Fishman
M-300 NASHVILLE SERIES ARCHTOP MANDOLIN PICKUP
Customer reviews
Based on 1 review
- 5 stars, 1 review
- 4 stars, 0 reviews
- 3 stars, 0 reviews
- 2 stars, 0 reviews
- 1 star, 0 reviews
The review form didn't open. Please try again.
-
The M1 is a good microphone for electrifying a good acoustic guitar without a microphone.
Automatically translated
No reviews match this filter.
Reviews can't be loaded right now. Please try again.
Automatically translated
Questions frequently asked
Is the LR Baggs M1 suitable for a steel-string acoustic guitar?
This magnetic pickup is designed for steel-string acoustic guitars and is installed directly in the soundhole.
How to install the pickup without major modifications to the guitar?
Installation is carried out in the soundhole. The output uses a strap-button jack that replaces the original strap button. Passive operation does not require an integrated EQ.
What sound quality does the three-dimensional dynamic technology provide?
The Three-Dimensional Dynamic technology combines the vibration of the strings with that of the guitar body. A suspended coil reacts in three dimensions to capture the influence of the soundboard.
Does the M1 produce hum on stage?
The humbucking design is advertised as hum-free and engineered to resist feedback during amplified use.
Can the balance between strings be adjusted?
Adjustable poles allow fine-tuning of the balance string by string according to the instrument.
