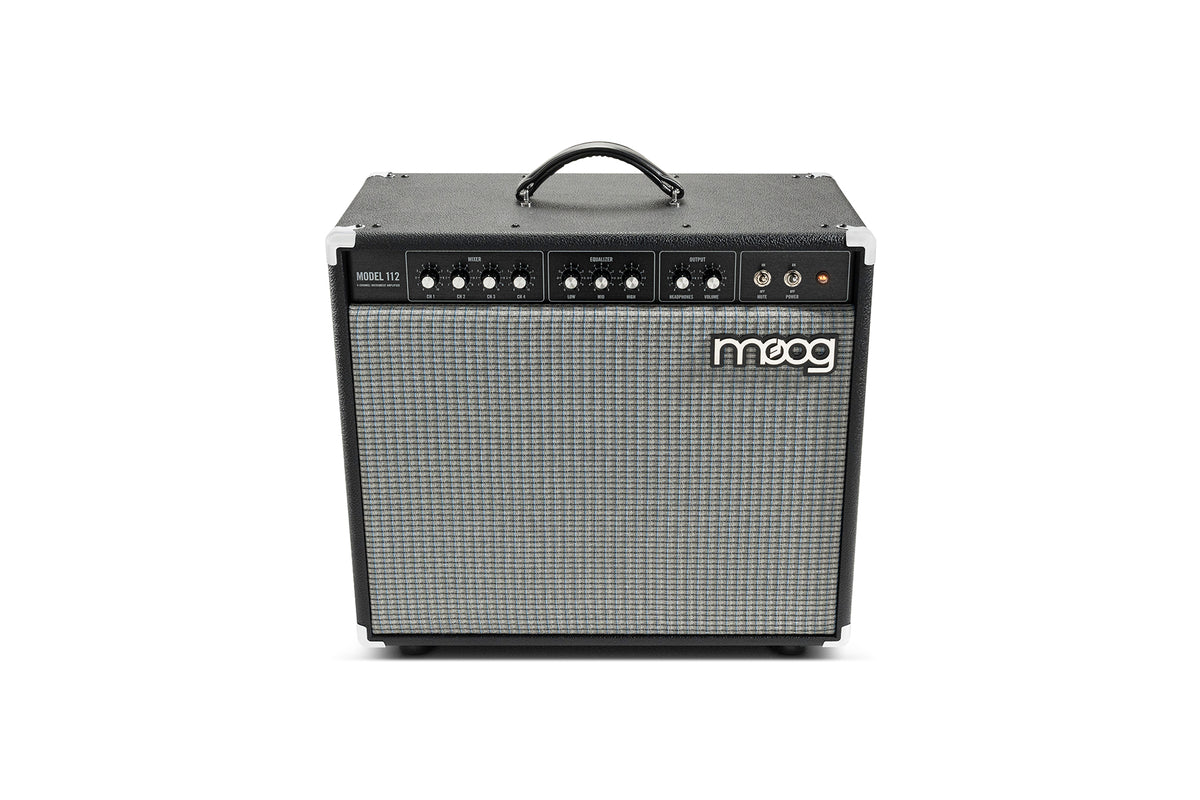

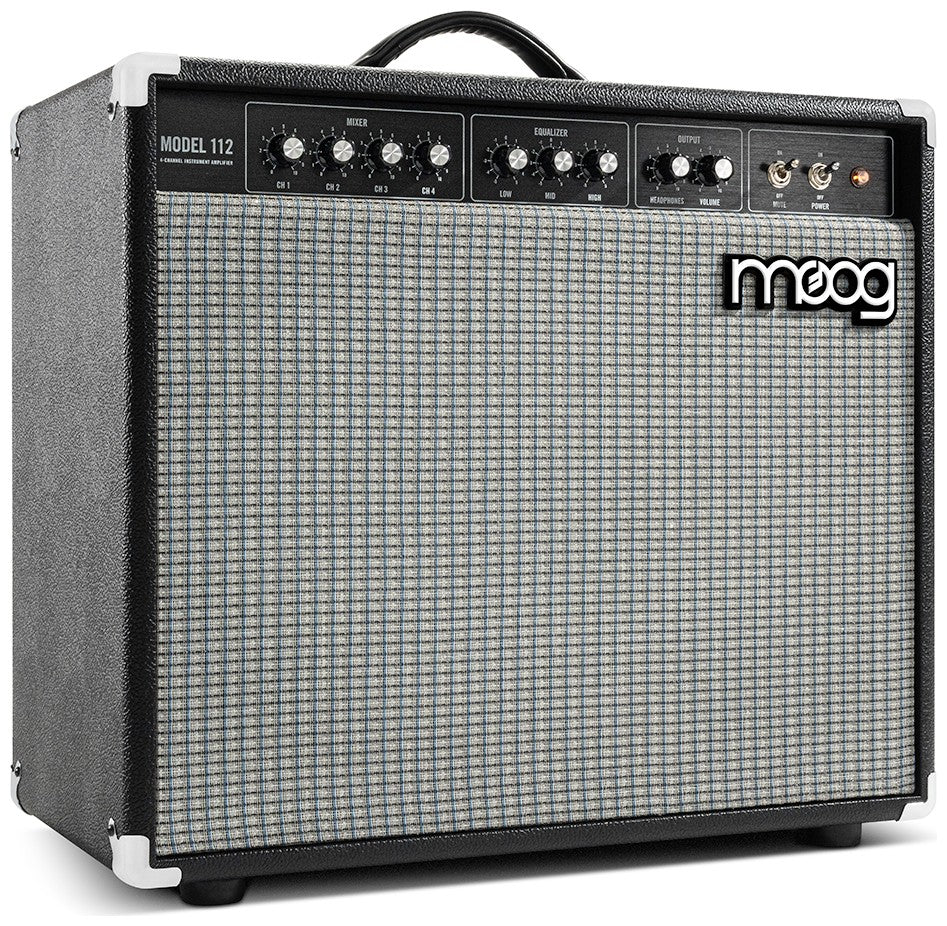

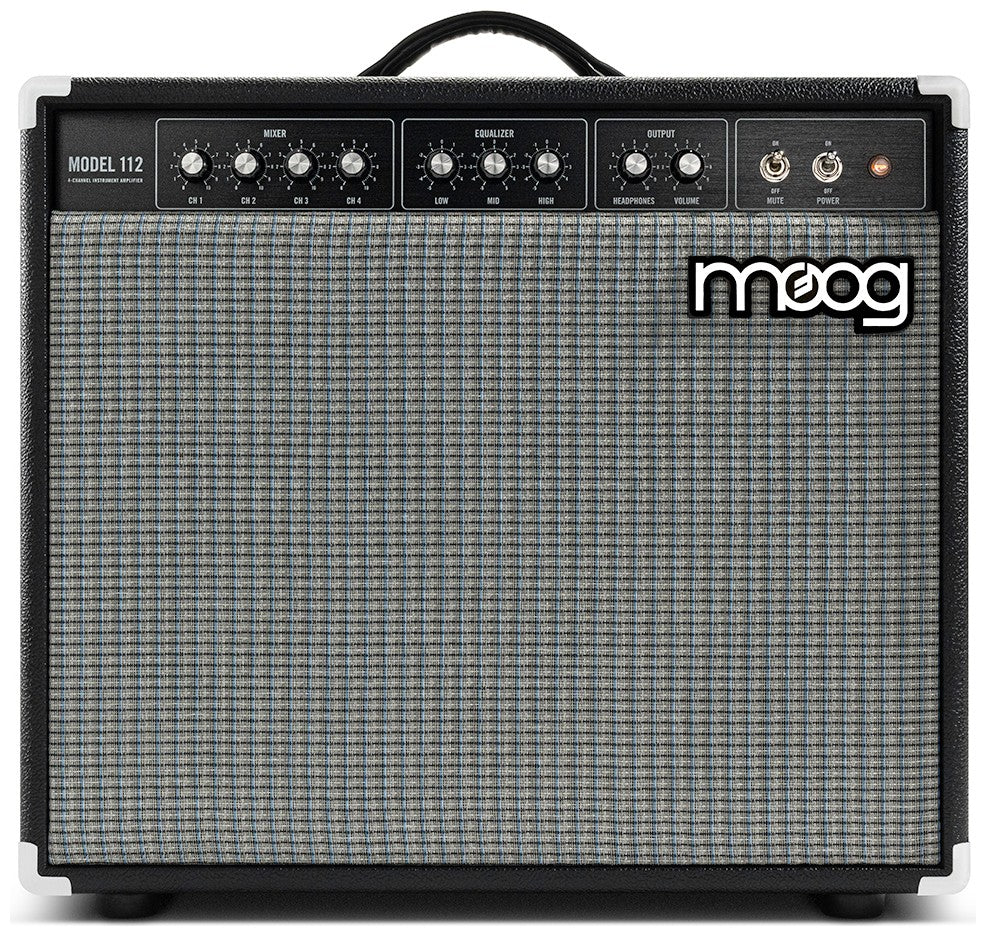

Moog Model 112

An expressive amplifier for keyboards and electronic instruments

The Moog Model 112 is an instrument amplifier designed to preserve the full sonic richness of keyboards, synthesizers, sound modules and drum machines. Its fully analogue circuit delivers wide-band reproduction with a linear response and no perceptible latency, preserving the attack, dynamics and bass depth of your playing.

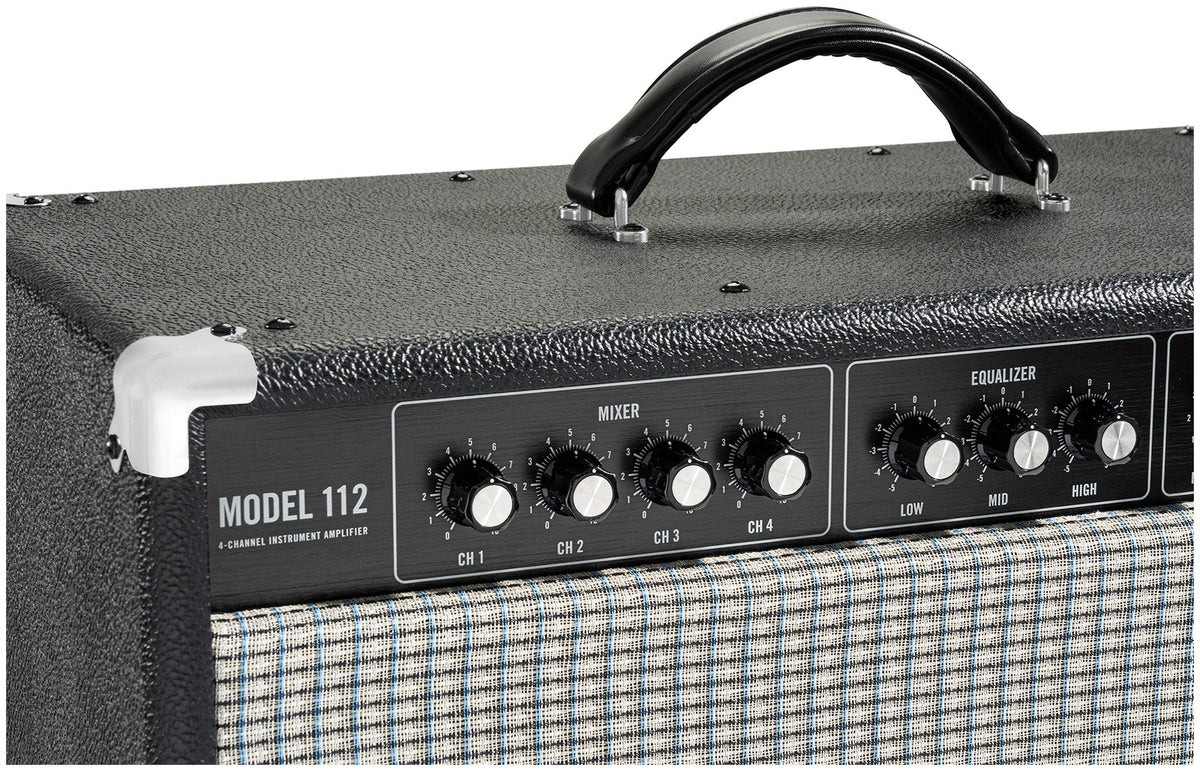

Its bi-amplification provides ample power reserves for rehearsals, studio sessions or live performance. The four-channel mixer allows keyboard players to connect multiple sources to a single system, while the three-band Baxandall equalizer helps adapt the sound to the room acoustics. With the Stereo Link function, two Model 112 units can create a true stereo sound system, particularly well suited to pads, delays and spatial effects.

Technical specifications

Type	instrument amplifier	Microphone preamplifier	channel 1
Amplification technology	fully analog	Master equalizer	3-band Baxandall
Response	wideband with linear response	Bluetooth	version 6.0 with audio streaming

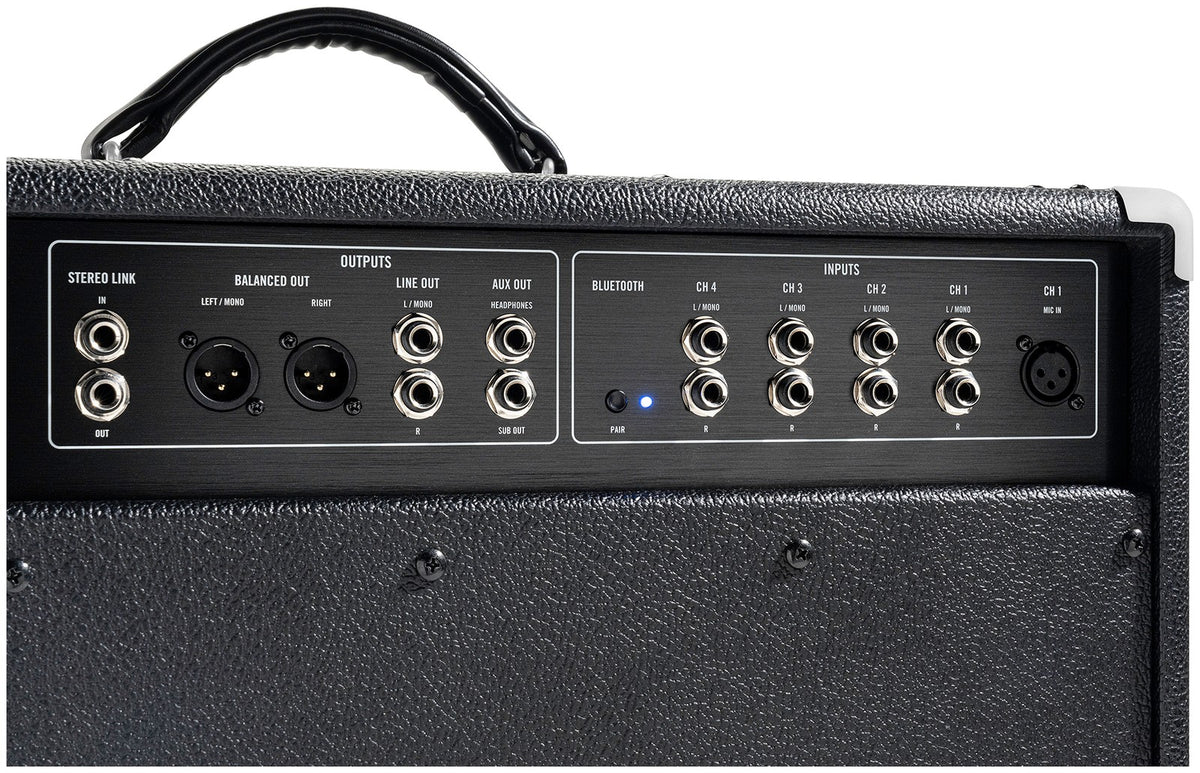

System power	880 W peak, 440 W RMS	Outputs	balanced stereo XLR and stereo TRS jack outputs
Configuration	bi-amplified	Stereo Link function	yes
Low-frequency power	400 W RMS	Headphone amplifier	built-in
High-frequency power	40 W RMS	covering	Moog tolex
Frequency response	40 Hz to 20 kHz	Grille	vintage-style fabric
Latency	virtually zero and imperceptible	Handle	top carry handle
Loudspeaker	1 x 12 inches	Power supply	110 to 120 V AC or 220 to 240 V AC, 50/60 Hz
High-frequency driver	1 x 1-inch compression driver	Power connector	IEC
Horn	90-degree conical	Dimensions	500 x 292 x 535 mm
Built-in mixer	4-channel analog stereo mixer	Weight	21.7 kg
