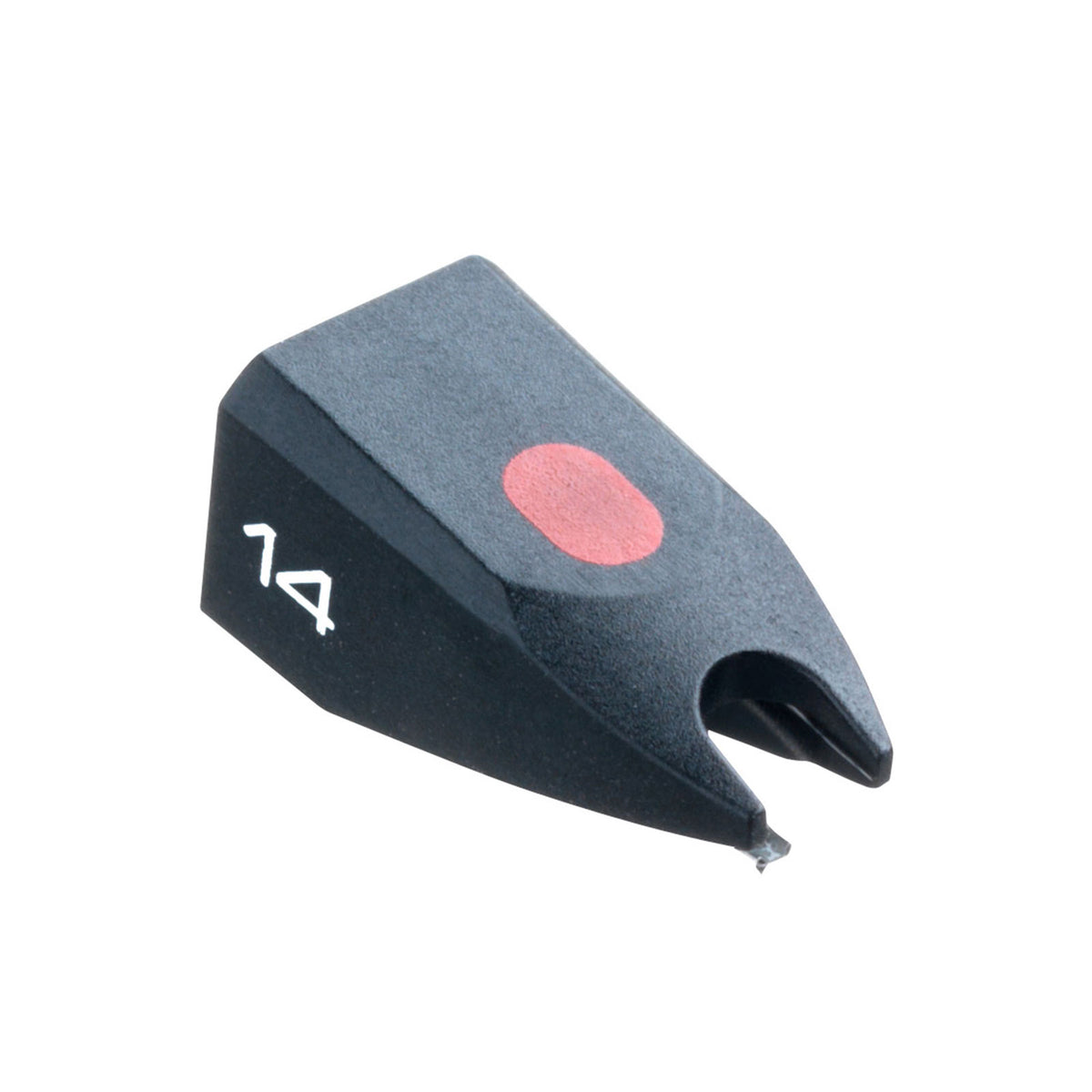

Ortofon Hifi STYLUS 14
Estimated Shipping Widget will be displayed here!
Essential Information About the Black Replacement Elliptical Diamond
Essential Information About the Black Replacement Elliptical Diamond
- Elliptical profile for a good balance between tracking accuracy and musicality, ideal for restoring detail to your vinyl records.
- Stable tracking with a recommended tracking force of 1.25 g, designed to limit distortion and preserve grooves.
- Frequency response from 20 to 20,000 Hz (+2 dB / -2 dB) for extended reproduction from bass to treble.
- Black stylus : easy identification and discreet integration on the cartridge.
Manufacturer Information
Ortofon Hifi
https://www.ortofon.com
support@ortofon.dk
------------------------
Safety manager:
SOGETRONIC
Email:
Address:
An Elliptical Stylus: The Versatile Choice in the Hi-Fi Vinyl World
The elliptical diamond is a benchmark for those seeking increased definition compared to a conical profile, while maintaining tolerant playback for everyday use. This type of tip aims for better groove holding and more precise transient reproduction, for a more nuanced listening experience on a turntable.
Who Is This Replacement Diamond For?
This stylus is intended for vinyl turntable users who want to replace a worn diamond or restore their cartridge's original performance. It is particularly suitable for demanding home listening (Hi-Fi, vinyl collections, rediscovering albums), with simple installation and tracking force adjustment within the recommended range.
Features and Innovations
With a tracking force range of 1.0 to 1.5 g and a recommended value of 1.25 g, this diamond is designed for controlled playback. Its tracking capability reaches 70 µm (at 315 Hz with the recommended tracking force), while the lateral dynamic compliance of 25 µm/mN promotes good behavior on modulated passages. The tip radius (r/R 8/18 µm ) and the tracking angle of 20 degrees contribute to precise and consistent playback across a wide variety of pressings.
Technical specifications
| DJing type | Monitoring | Diamond tip | elliptical |
| Category | diamond | Color | Black |
| Type | diamond | Quantity | 1 |
| Destination | hifi | ||
| Diamond | Elliptical | Lateral dynamic compliance | 25 µm/mN |
| Stylus tip radius | r/R 8/18 µm | Tracking angle | 20 degrees |
| Stylus color | Black | Tracking force range | 1.0-1.5 g (10-15 mN) |
| Frequency response | 20-20,000 Hz +/-2 dB | Recommended tracking force | 1.25 g (12.5 mN) |
| Tracking capability (315 Hz with recommended tracking force) | 70 µm | ||
You will also like
ORTOFON DJ
Stylus Night Club MKII E A
Ortofon Hifi
STYLUS DUAL DN 165 E
Ortofon Hifi
STYLUS 3E
ORTOFON DJ
STYLUS-digitrack
Ortofon Hifi
STYLUS CONCORDE MUSIC RED
Ortofon Hifi
STYLUS D 25 M
ORTOFON DJ
Stylus Night Club E
Ortofon Hifi
STYLUS 7
Questions frequently asked
Is the Stylus 14 compatible with Hi-Fi listening on a vinyl turntable?
Designed for Hi-Fi, this elliptical diamond is intended for home listening and playing vinyl collections. Its frequency response is specified from 20 Hz to 20 kHz, with a +2/-2 dB tolerance.
What tracking force should be set with this Ortofon Hifi Stylus 14 diamond?
The recommended tracking force is 1.25 g, or 12.5 mN. The adjustable range accepted extends from 1.0 to 1.5 g (10 to 15 mN).
What is the stylus tip profile of the diamond?
The elliptical tip has an r/R radius of 8/18 µm. This profile aims for better groove tracking and more precise transient response than a conical tip.
What tracking capability does the Stylus 14 offer?
The tracking capability reaches 70 µm at 315 Hz, with the recommended tracking force. The lateral dynamic compliance is given as 25 µm/mN. The tracking angle is 20°.
Is the diamond supplied individually?
One black unit is included.
