The Essentials to Know About the Cab-Link
The Essentials to Know About the Cab-Link

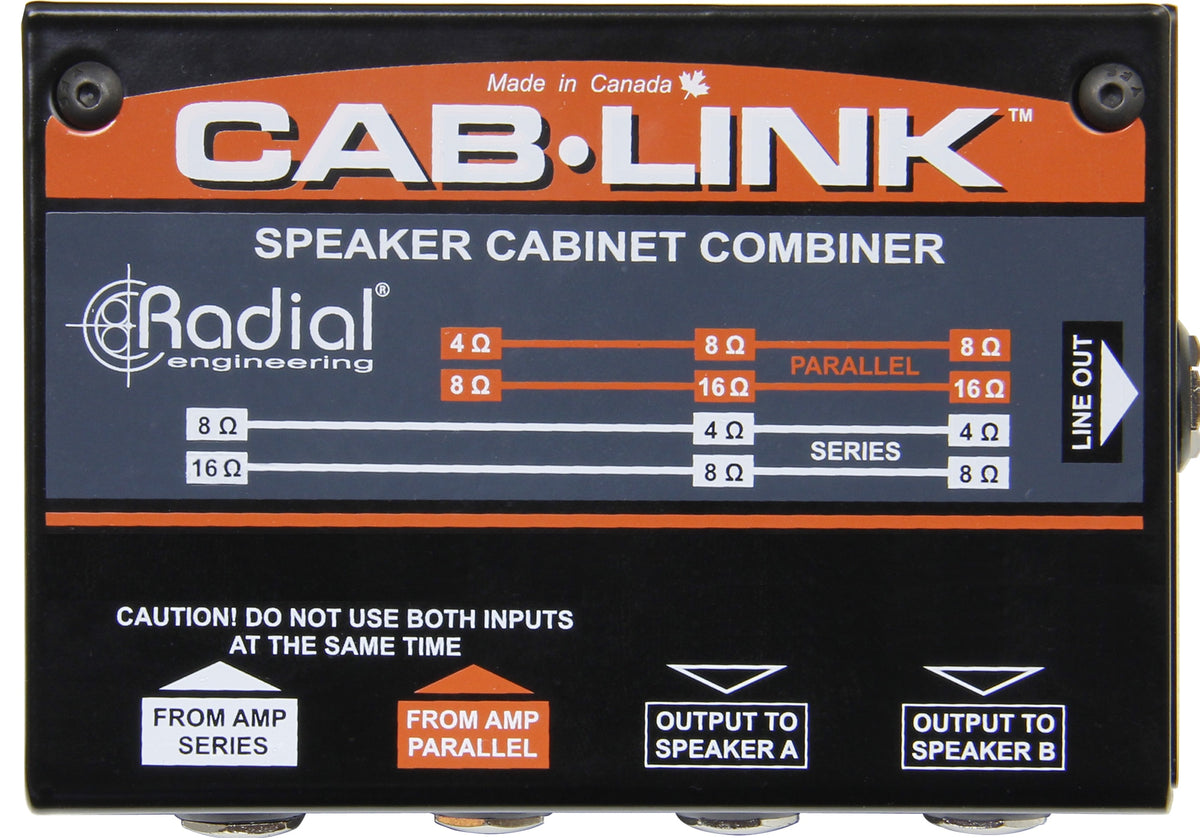

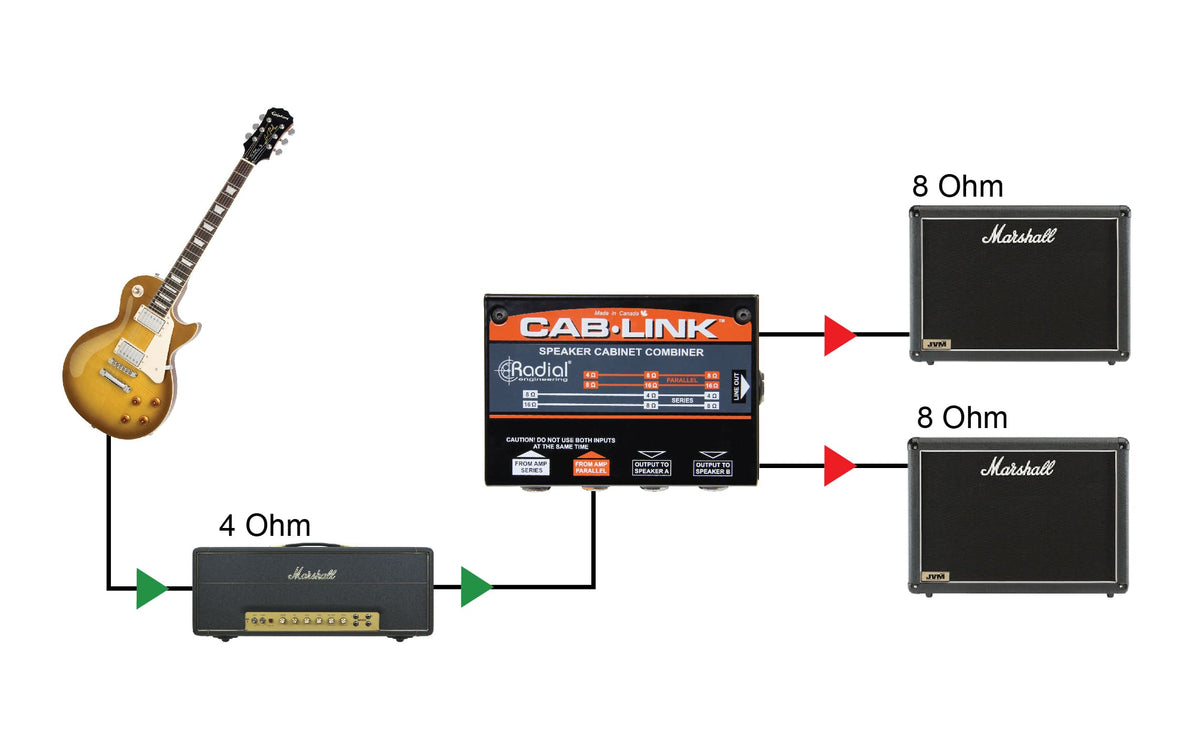

- Ultra-simple connection of 2 speakers to a guitar amp head, without getting lost in wiring.
- Series or parallel selection : plug the amp head into the desired input and the Cab-Link automatically adapts.
- Built-in line output with trim : convenient for driving another amp (instrument input) or an effects chain.

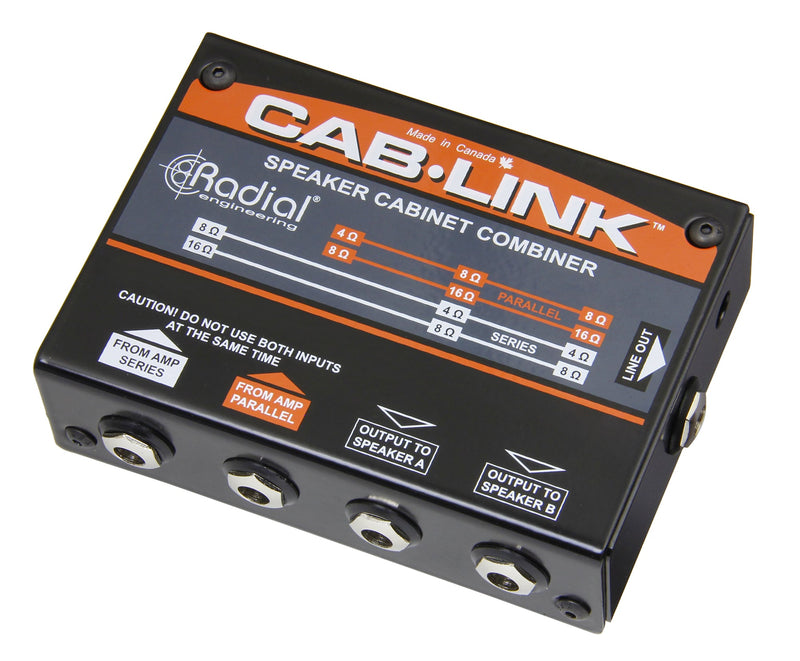

- 100% passive and robust : metal construction, no power supply needed, power handling up to 400 watts.
Manufacturer Information
Radial
https://www.radialeng.com
info@radialeng.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
A Modern Tool for an Age-Old Speaker Need
The Cab-Link addresses a classic guitarist problem: how to neatly connect two speakers to an amp head while respecting impedance and maintaining a reliable stage setup. Historically, series/parallel wiring was done "by hand" (or via terminal strips), with a risk of error and setup time incompatible with quick stage changes. Here, the idea is simple: two dedicated speaker inputs (one series, one parallel) and only one used at a time, for immediate and more confident reconfiguration.Who Is It For, and In What Contexts Should You Use It?
The Cab-Link is aimed at guitarists playing with a head + cabinets, from beginners (who want to avoid wiring mistakes) to seasoned musicians (optimizing their pedalboard and backline). It's ideal for rehearsals and live shows when you switch between two cabs or speakers depending on the venue, or when you want to save time during setup.It's also well suited for home studios: the line output lets you capture a signal to feed another amp (via its instrument input) or insert effects without altering your main chain. It's a great companion for rock, blues, hard rock, or metal setups, wherever 1x12, 2x12, or 4x12 cabinets are used and connection precision makes a difference.
Technical specifications
| Number of channels | 1 | Power supply | Passive |
| Digital conversion | No | Weight | 0.5 kg |
| Settings | output trim | Dimensions (mm) | 118 x 83 x 35 |
| Inputs | 2 x jack | ||
| Tubes | no | Configuration example | connecting a 16-ohm amp head to the series input, connecting 2 8-ohm loudspeakers |
| Built-in preamp | no | Weight (kg) | 0.50 kg |
| Loudspeaker inputs | 2 6.35 mm Jack loudspeaker inputs (1 in series, 1 in parallel) | Case | included |
| Outputs | 3 x 6.35 mm Jack | Power consumption | 0 mA |
| Controls | output trim | Required voltage | none |
You will also like
Boss
IR-2 Amp and Cabinet
Two Notes
Torpedo Captor 8
Two Notes
Torpedo Captor 16
Two Notes
Torpedo Captor 4
Engl
CABLOADER
Two Notes
Opus
Tsakalis
MULTICAB 4
Strymon
Iridium Amp Cab IR Loader
Questions frequently asked
How to connect two 8 ohm speakers to a 16 ohm head?
The series input allows this configuration: two 8 ohm speakers can be connected to a head set at 16 ohms. Only one of the two speaker inputs should be used at a time.
Does the Radial Cablink work without power?
Its 100% passive circuit requires no power, with a declared consumption of 0 mA.
What is the maximum power the unit can handle?
The maximum permissible power is 400 watts. The speaker connections use 6.35 mm jacks dedicated to series or parallel wiring.
Does the line output allow sending the signal to effects or another amp?
A 6.35 mm jack line output allows feeding another amp through its instrument input or an effects chain. A trim control adjusts its level according to the connected equipment. This output does not include a preamp or digital conversion.
What are the dimensions and weight of the Cablink?
The metal unit measures 118 x 83 x 35 mm and weighs 0.50 kg.
