Essential Information About the Radial Key-Largo Keyboard Mixer
Essential Information About the Radial Key-Largo Keyboard Mixer

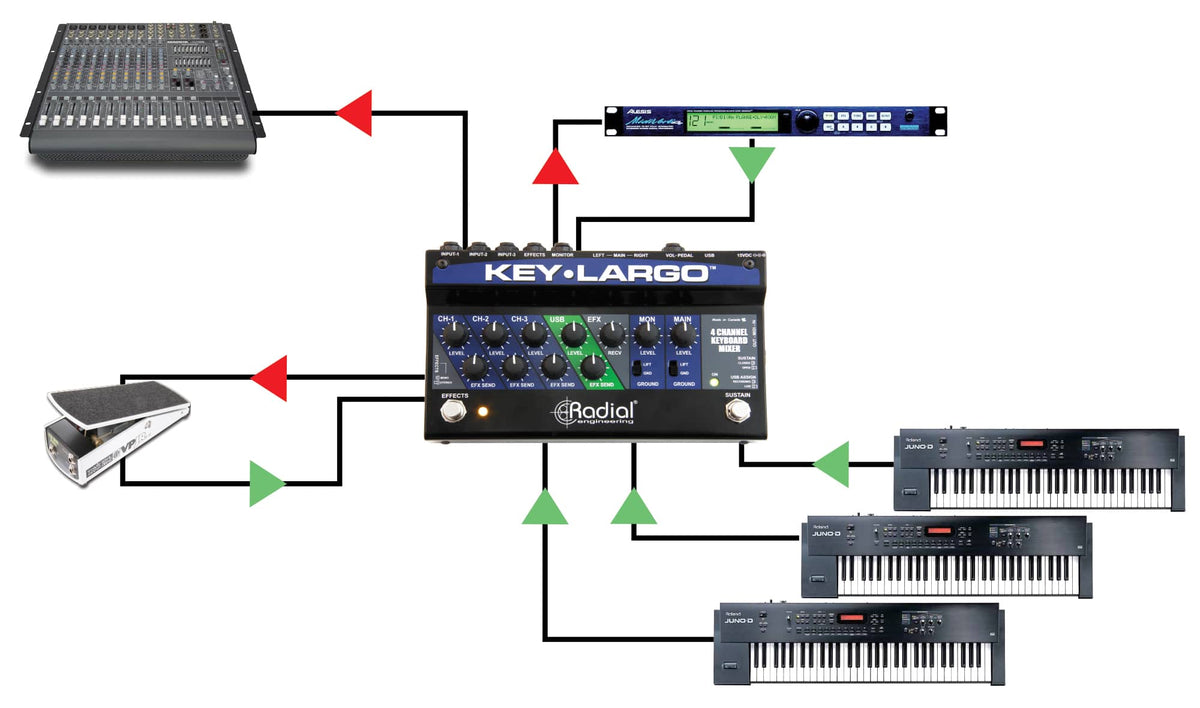

- Stage Control Center : connect up to 3 stereo keyboards, pedals, and a computer via USB for a clean and efficient setup.

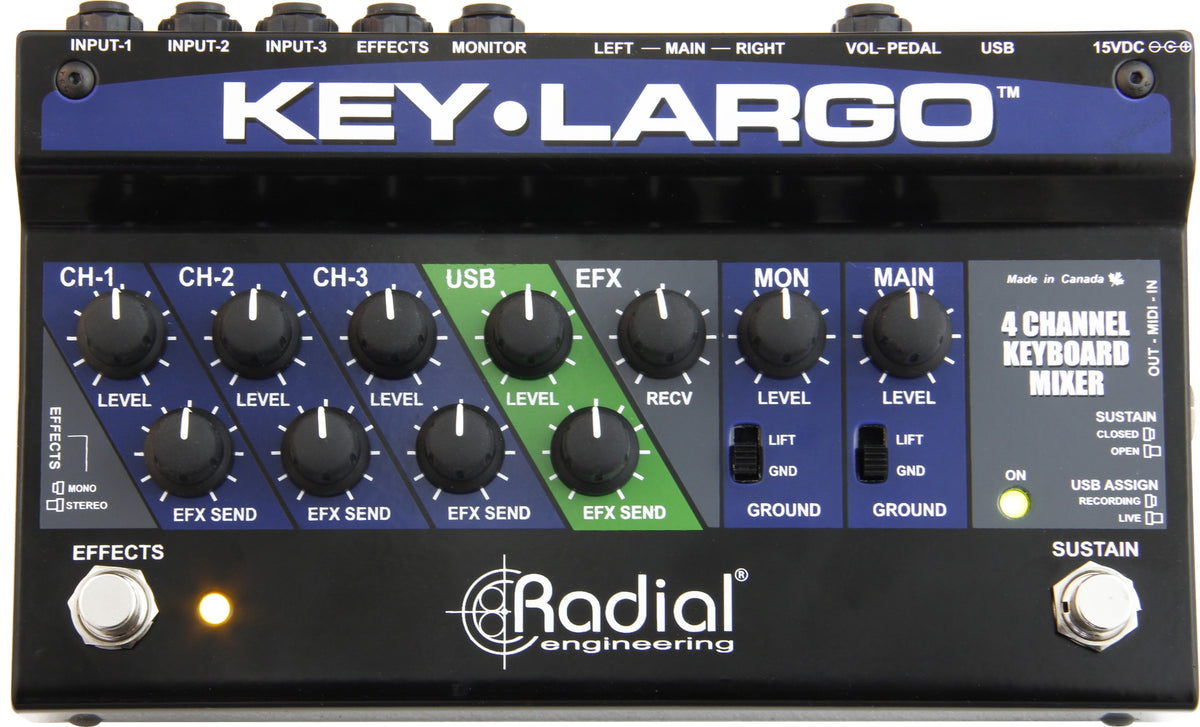

- Instant Mixing : 3 analog stereo TRS 6.35mm jack inputs with individual volume controls to balance your levels in one move.
- External Effects at Your Feet : shared effects loop with footswitch control to add delay or reverb without letting go of the keyboard.
- Stage + Front of House Outputs : monitor outputs to manage your onstage level and 2 balanced main XLR outputs to feed the PA system.
Manufacturer Information
Radial
https://www.radialeng.com
info@radialeng.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
A Tool Designed for Live Performance and Modern Setups

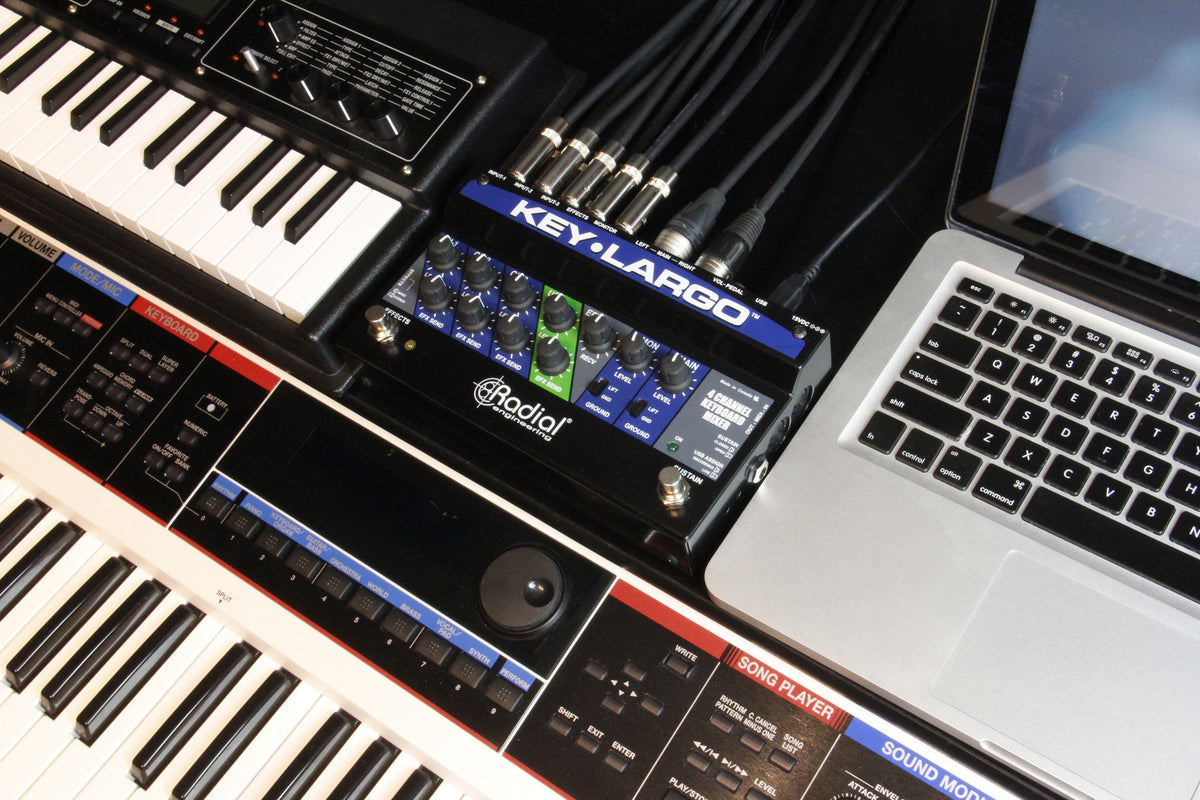

The Radial Key-Largo was designed to address a stage reality: multiplying sources (multiple keyboards, a laptop, effects) without complicating the mix or setup. Instead of stacking boxes and cables, it centralizes connections and organizes the audio flow to send a clean signal to the front of house while maintaining direct control on stage. Its format and robust construction make it a natural companion for keyboardists who alternate rehearsals, concerts, and quick stage changes.
Who Is It For and What Are Its Uses?
The Key-Largo is aimed at stage keyboardists, musicians playing master keyboards, digital pianos, or multi-keyboard setups, as well as performers integrating virtual instruments via computer. It is especially suitable for setups where you need to manage multiple stereo outputs, balance levels between heterogeneous sources, send a reliable signal to the PA system, and keep "foot control" over essential functions (sustain, effects, dynamics). It is also an efficient solution for those who want to integrate a laptop via USB while maintaining a simple and stage-oriented approach.
Technical specifications
| Connectors | Stereo jack | Inputs | 3 x stereo jack |
| Category | Keyboard mixer | Outputs | USB Midi, 2 x monitor jack, XLR |
| Type | Mixer | Power supply | DC 15 V |
| Number of switches | 2 | Weight | 1.95 kg |
| Accessories included | Power supply | Dimensions (mm) | 213 x 127 x 48 |
| Converter resolution | 24-bit / 192 kHz | Footswitch pedal | integrated, connection to a master keyboard or digital piano |
| Effects loops | with switches (external effects such as delay / reverb) | Construction material | steel |
| Effects bus | stereo, switchable to mono | Potentiometer and switch shaft material | steel |
| Stage monitor outputs | with level adjustment on stage | Grounding per output channel | switchable |
| Sustain pedal | internal | ||
You will also like
Mackie
Onyx 12
Mackie
Pro FX 16 V3
Yamaha
MG16xu
Zoom
LiveTrak L12next
Soundcraft
Efx 12
Presonus
StudioLive AR16c
Allen & Heath
ZED14
Allen & Heath
ZED18
Questions frequently asked
How many keyboards can be connected to the Radial Key-Largo?
Three stereo analog inputs on 6.35 mm TRS jacks can accommodate three keyboards or modules. Each input features its own volume knob for source leveling.

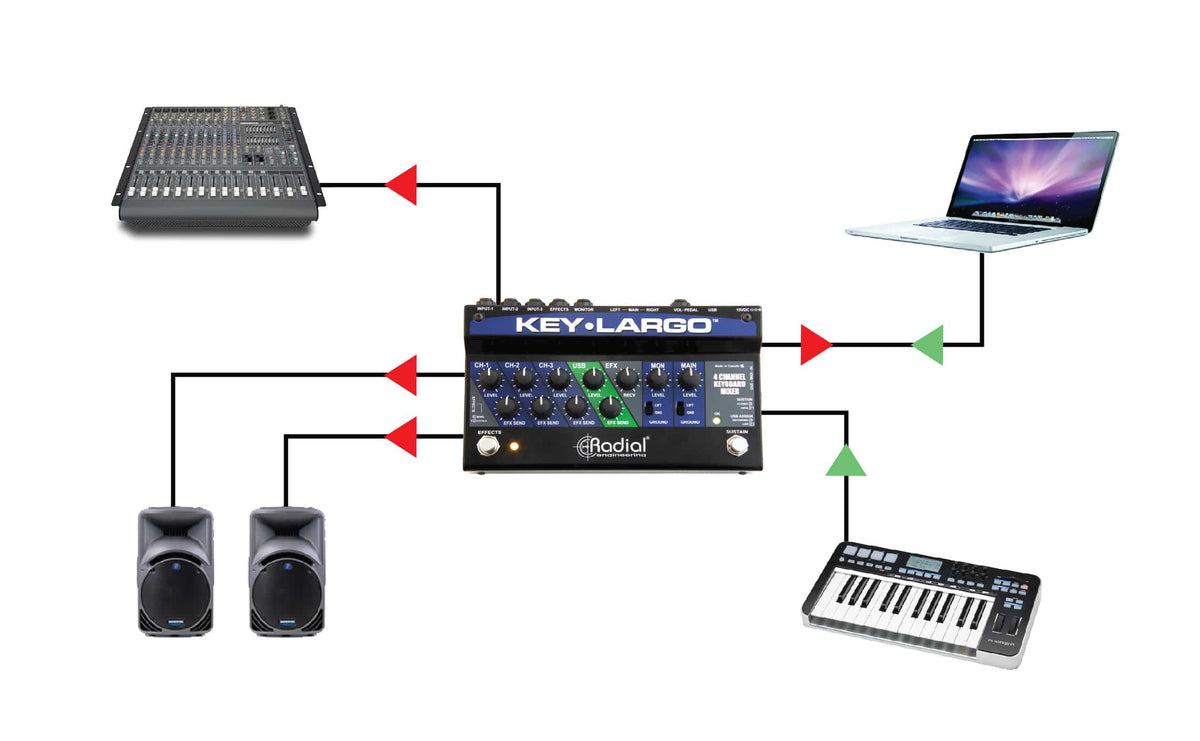

Can a laptop be integrated into a keyboard setup?
The digital USB/MIDI connection allows integration of a computer to control software synthesizers. The advertised converters operate at 24-bit / 192 kHz.
What outputs are provided for front of house and stage monitor returns?

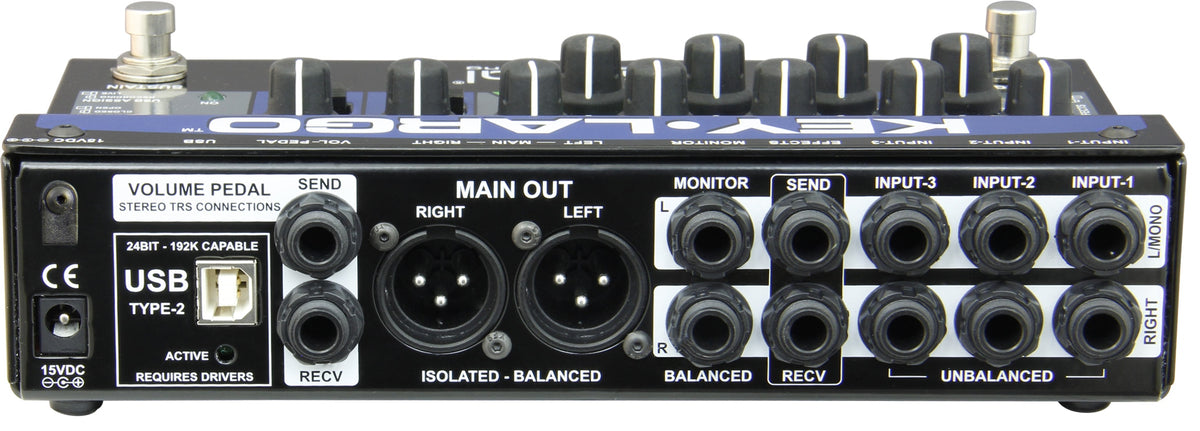

Two balanced main outputs on XLR connectors are intended for PA sound reinforcement. Two monitor jack outputs allow control of the stage return level. The ground can be switched on each output channel.
Can an effects pedal be connected and foot-switched?
A shared effects loop can receive an external effect for all three inputs. The stereo effects bus can be switched to mono and activated via one of the two footswitches.
Is the Key-Largo suitable for frequent touring?
Its steel chassis, steel shaft potentiometers, and steel switches are designed for live use. The box measures 213 x 127 x 48 mm, weighs 1.95 kg, and comes with an external 15 V DC power supply.
