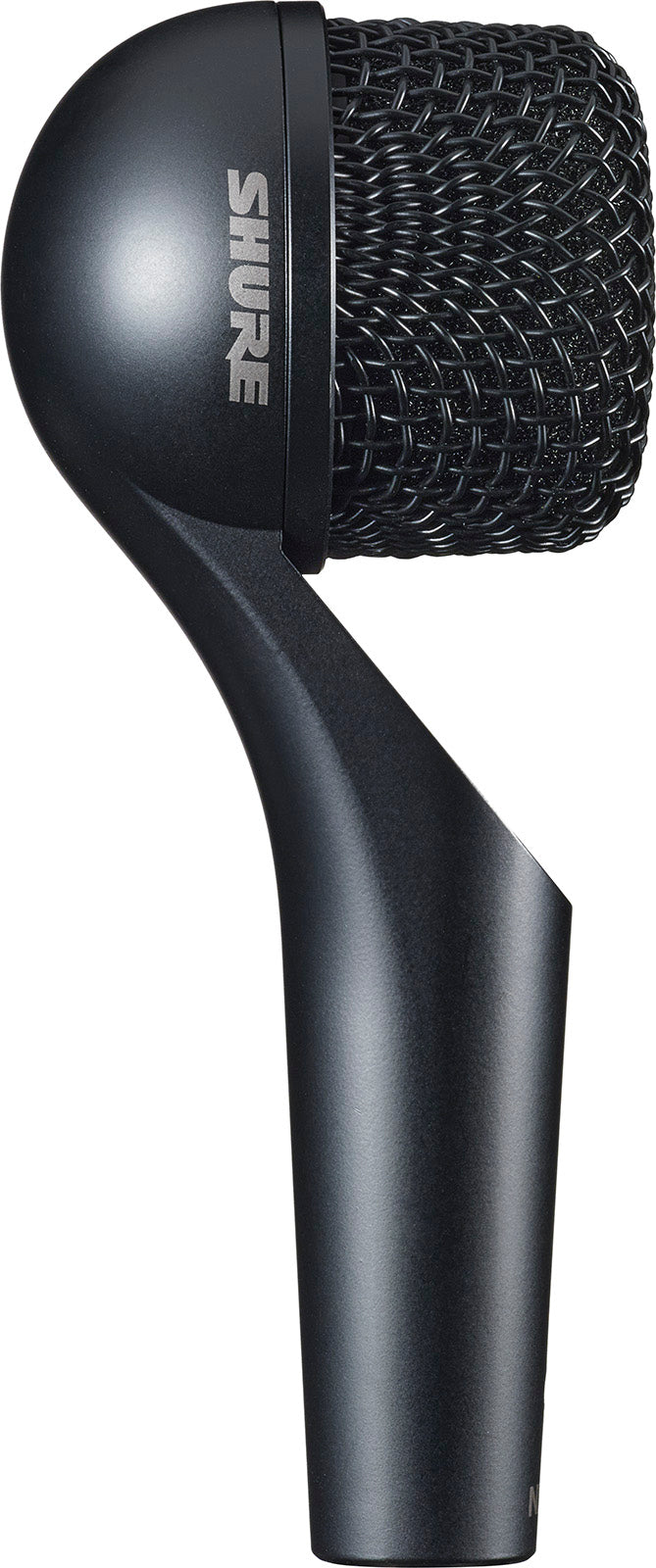

Shure Nexadyne 5

Essential Information About the Shure Nexadyne 5 Guitar Amp Microphone

• Tailored for guitar amps: smooth and precise reproduction of the frequency range of amplified guitar sounds, with excellent clarity.


• Revonic Technology: dual-motor transducer (two calibrated diaphragms) for clear capture and consistent output, requiring less corrective equalization.


• Supercardioid directivity: strong off-axis sound reduction to limit bleed (drums, stage monitors) and maintain a focused sound.


• Designed for the stage: reinforced shock-resistant grille, discreet black finish, and Shure's durable build quality.

A professional Shure microphone designed for high-level amp sound capture

The Nexadyne 5 follows a very "field-oriented" approach: capturing a guitar amp up close with a dynamic microphone capable of handling high sound pressure levels while maintaining a clear and musical signature. The philosophy of this series emphasizes directivity control and advanced internal acoustic treatment to deliver an immediately usable result, both live and in the studio, without spending time correcting the mix.

Who is it for and what are the uses?

The Shure Nexadyne 5 is aimed at guitarists, sound engineers, home studio users, and backliners who want reliable guitar amp sound capture, gig after gig. Its supercardioid directivity helps isolate the speaker cabinet in noisy environments (tight stages, wedge monitors, rehearsals), and its dynamic design is perfectly suited for close placement on the cone, where attack, tone, and presence need to remain clear.

Whether you're looking for a sound ready to fit into the mix for dense rhythm parts or precise nuance reproduction for leads, the Nexadyne 5 targets a clear and controlled output, with a sense of definition that facilitates placement within a band's overall EQ.

Revonic Technology and Acoustic Design: Clarity, Control, and Consistency

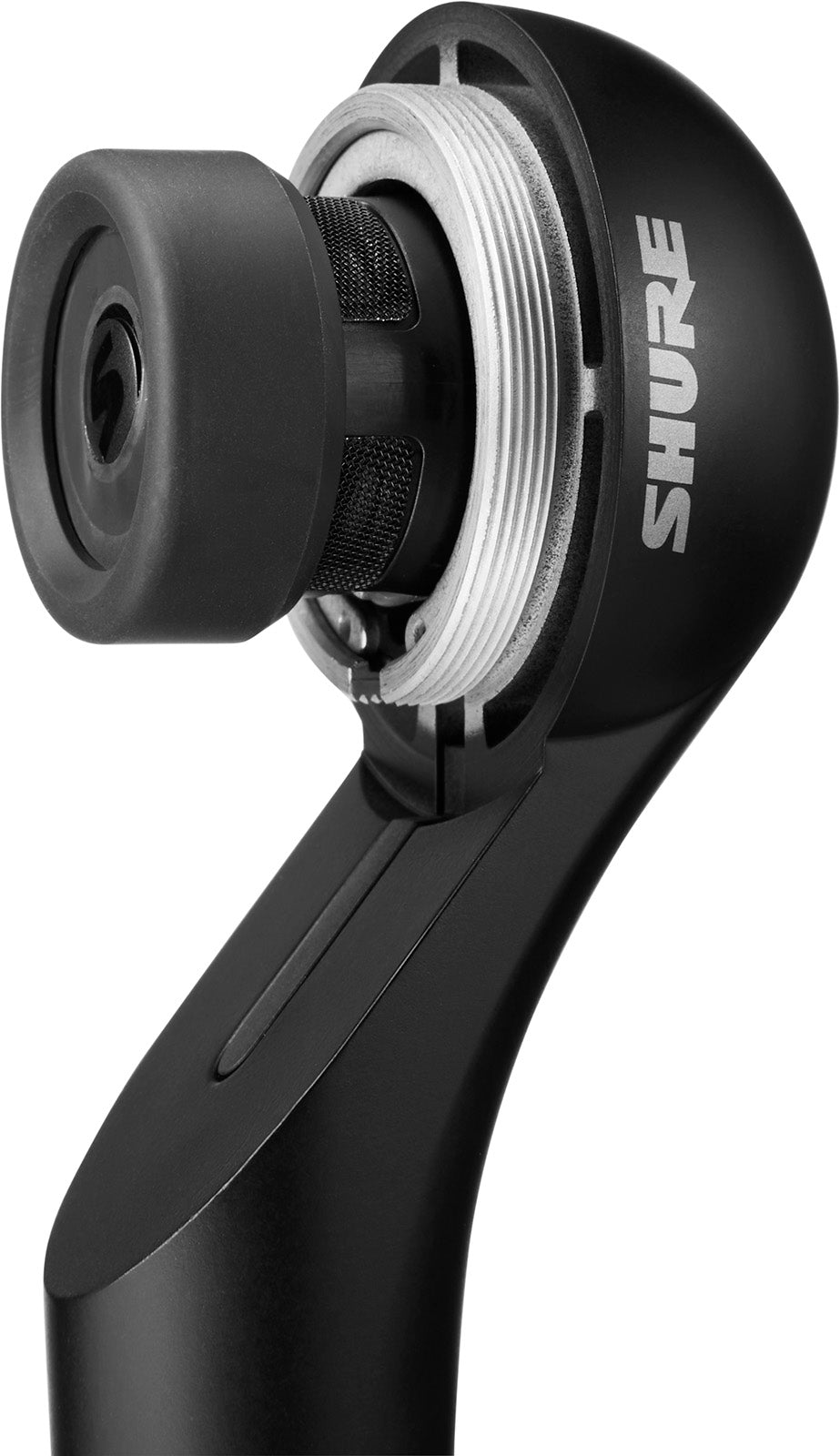

Dual-motor transducer: a more "finished" capture

The Nexadyne 5 incorporates Shure's patented Revonic technology: a dual-motor transducer combining two precisely calibrated diaphragms working together to achieve optimal performance. Practically, this architecture is designed to improve source reproduction (attack, texture, upper-mid details) while helping reduce mechanical artifacts and unwanted vibrations. The result: a cleaner sound capture and a sense of precision that minimizes the need for heavy corrective equalization.

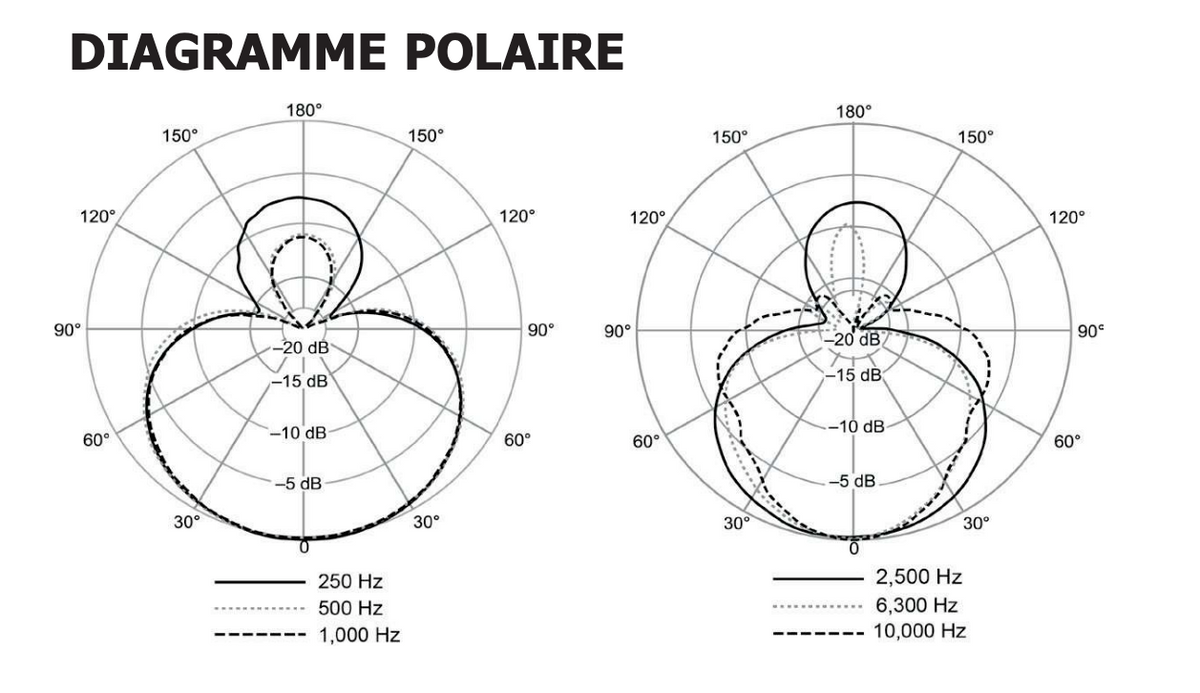

Supercardioid directivity: less bleed, more focus

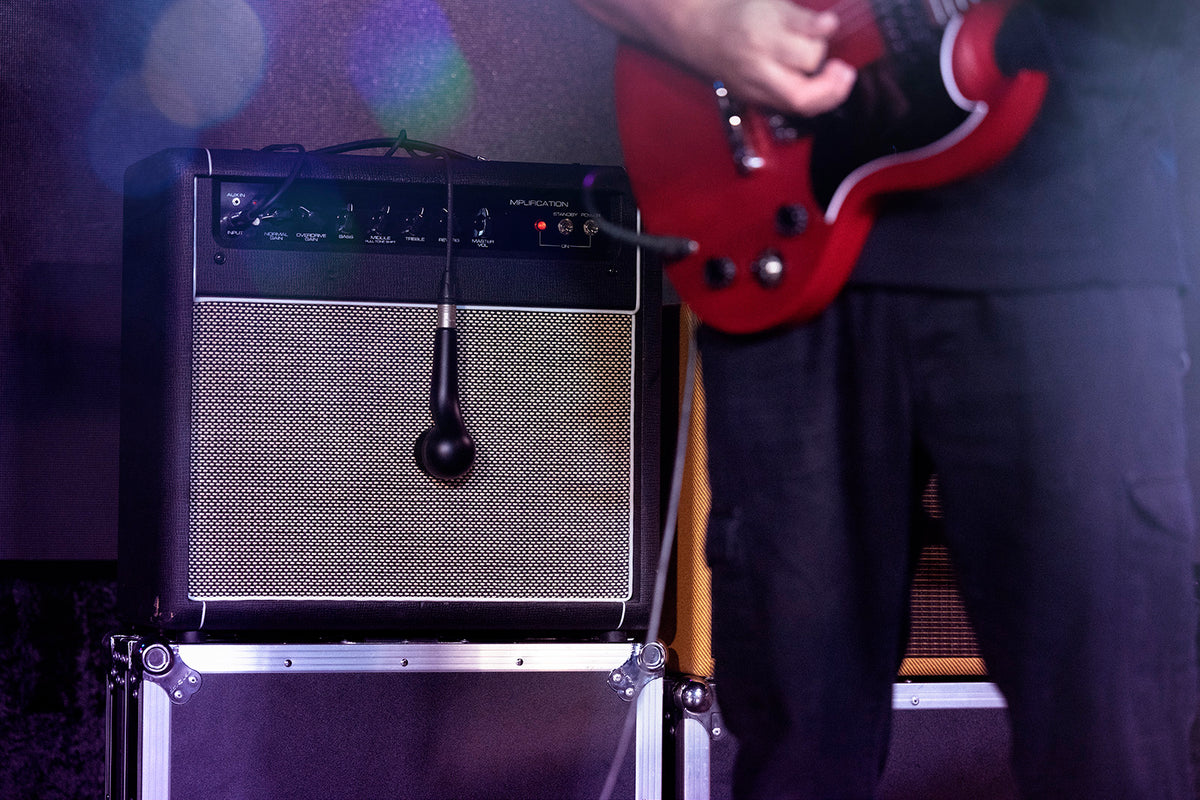

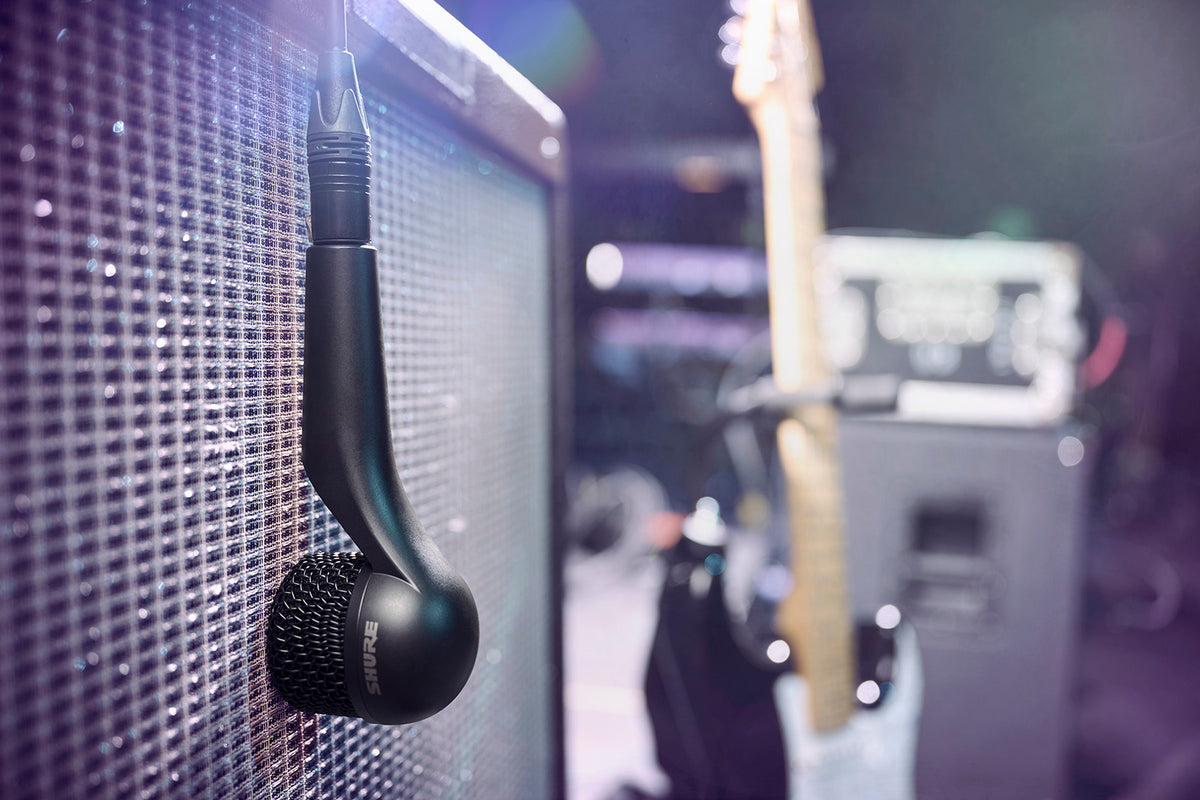

Thanks to its supercardioid directivity, which is reported to be very linear, the Nexadyne 5 helps keep the amp's sound front and center while better controlling what enters from "around" (cymbals, snare, stage monitors). This behavior is especially useful when placing the microphone close to the speaker grille: it improves isolation, speeds up setup, and ensures consistent sound from gig to gig.

Built to withstand the realities of live performance

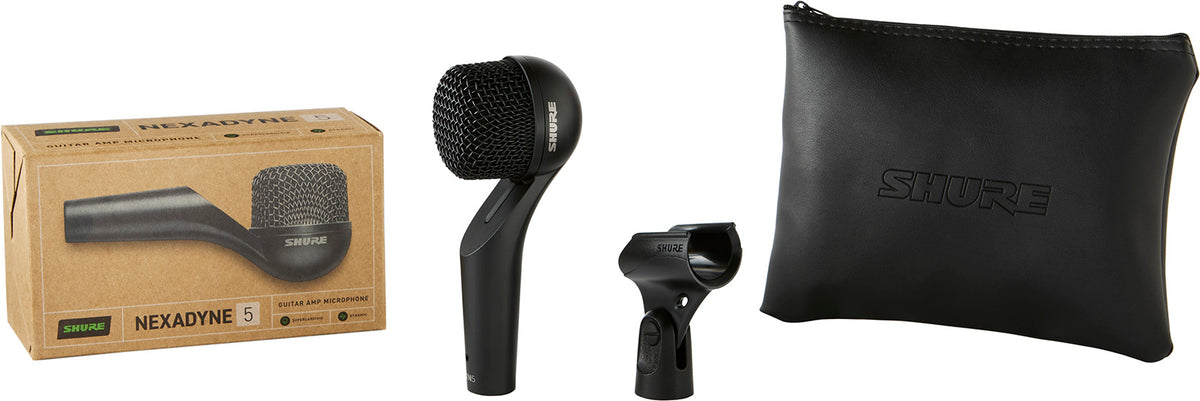

Between handling, stage changes, and transport, an amp microphone is put through tough conditions. The Nexadyne 5 relies on robust construction with a die-cast zinc housing, a discreet black finish, and a reinforced shock-resistant grille. The black-finished XLR connector integrates easily on stage and in touring setups. The microphone comes with a mic clip and a zippered pouch, convenient for secure storage and quick setup.

Technical specifications

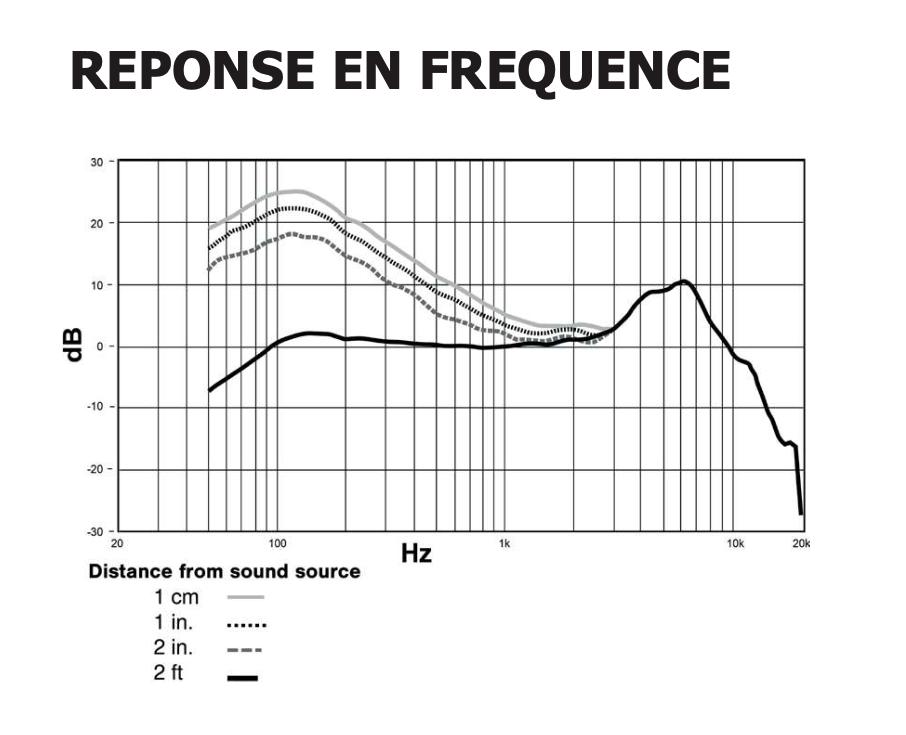

Frequency response	50 Hz - 16 kHz	Connection	XLR
Sensitivity	–61.0 dBV/Pa (0.9 mV/Pa) 1 Pa = 94 dB SPL	Clamp included	Yes
Category	instrument microphone	Included accessories	microphone clip
Type	instrument	Color	Black
Directivity	supercardioid	Cables included	No
Capsule	dynamic	Switch	No
Nominal impedance	335 Ω	Weight	295 g

Output Impedance @1 kHz	335 ohms	Connector	3-pin male XLR connector
Polarity	Positive pressure on the diaphragm produces a positive voltage on pin 2 relative to pin 3.	Housing	Die-cast zinc with black paint finish
