Tascam MZ-123BT
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Essential Information About the Tascam MZ-123BT Multi-Zone Mixer
Essential Information About the Tascam MZ-123BT Multi-Zone Mixer
- Simple management of 3 zones : assign, mix, and distribute background music and announcements with level control per zone.
- Built-in Bluetooth with front panel antenna : more reliable streaming, even in RF-heavy environments.
- 2 dedicated mic inputs + Talkover function : clearer announcements thanks to automatic music attenuation.
- 1U rack format : compact solution designed for fixed installations (restaurants, hotels, shops, reception areas).
Manufacturer Information
Tascam
https://www.tascam.eu
tascam-sales@teac.de
------------------------
Safety manager:
CSI audiovisuel
Email:
Address:
An Installation Mixer in the Tascam Spirit, Designed for Multi-Zone Broadcasting
The Tascam MZ-123BT fits within the logic of Tascam equipment aimed at professional installation : ease of daily use, connectivity adapted for fixed setups, and targeted functions for background music playback and microphone announcements. Its 1U format and "all-in-one" philosophy make it a relevant choice to centralize multiple sources (player, TV, tablet/phone via Bluetooth, etc.) and feed up to three distinct zones with clear and quick control.
For Whom? For Which Multi-Zone Applications?

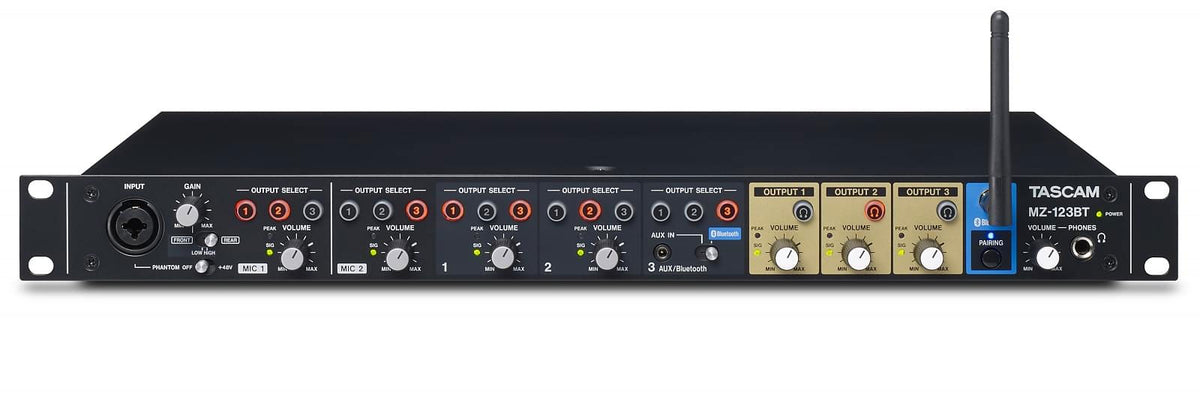

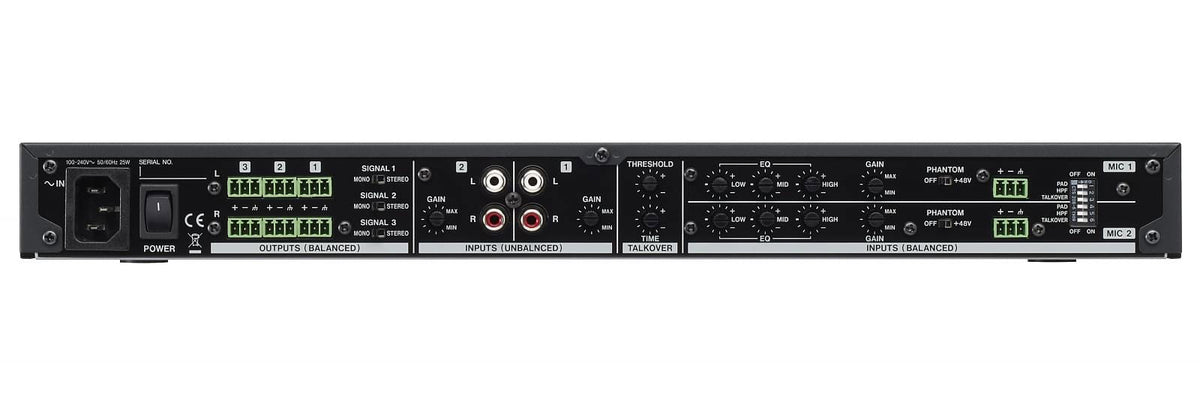

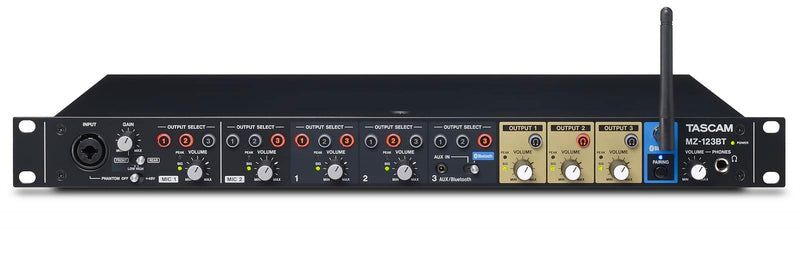

The MZ-123BT is ideal if you need to sound multiple spaces with different needs: indoor area and terrace of a café, bar and restaurant, lobby and corridors of a hotel, store and fitting rooms, or any configuration where you want to broadcast background music while retaining the possibility of making independent announcements. The ergonomics have been designed for quick handling by non-technical staff: essential controls on the front panel (volumes, zone selection, pairing), and finer adjustments accessible at the rear to secure operation.
Technical specifications
| Type | analog Compact | Number of faders | 4 |
| USB stereo recording / playback | No | Rackable | Yes |
| Mixer type | compact analogue mixer for professional installation | Pairing functions | accessible from the front panel |
| Rack format | 1U | Mic inputs | 2 on Euroblock connectors |
| Zone management | distribution and mixing of background music and announcements to up to 3 zones | Phantom power | switchable 48 V for condenser microphones |
| Zone outputs | 3 separate outputs with level control | Talkover function | automatic attenuation of the music during an announcement |
| Zone output configuration | mono or stereo for each output | Talkover threshold adjustment | rear panel |
| Line inputs | 2 stereo inputs on RCA/phono connectors (unbalanced) | Release/music return time adjustment | rear panel |
| Channel 3 | Aux/Bluetooth input | Zone selection for microphones | buttons on the front panel |
| Aux input connector | 3.5 mm mini-jack | Additional front-panel mic connector | Combo XLR/6.35 mm TRS jack |
| Audio streaming | via Bluetooth | Front-panel microphone selection | dedicated key |
| Volume control | per input | Gain adjustment | for each mic input, on the rear panel |
| Zone assignment | keys per input for routing to the desired zones | 3-band equalizer per mic input | Low, Mid, High (rear panel) |
| Bluetooth antenna | dedicated external antenna on the front panel | Filter per mic input | switchable selector, indicated as high-pass/low-pass depending on the rear panel |
You will also like
Mackie
Onyx 12
Mackie
Pro FX 16 V3
Yamaha
MG16xu
Mackie
Onyx 16
Zoom
LIVETRACK L-8
Soundcraft
Efx 12
Presonus
StudioLive AR16c
Soundcraft
Efx 8
Questions frequently asked
How many zones can this Tascam mixer manage?
The three zone outputs can feed three distinct areas with an adjustable level for each. Each output can be configured in mono or stereo depending on the installed sound system.
Is Bluetooth integrated into the MZ-123BT?
Channel 3 includes an Aux input on a 3.5 mm mini-jack and Bluetooth streaming. An external Bluetooth antenna is placed on the front panel for connection with a tablet or smartphone.
How do the microphone announcements and Talkover work?
Two mic inputs on Euroblock have switchable 48 V phantom power and zone selection. A Combo XLR/6.35 mm TRS jack connector is also available on the front panel for quick connection. The Talkover automatically lowers the music volume during speech, with threshold and release adjustable on the rear panel.
Can the Tascam MZ-123BT be rack-mounted?
The 1U format chassis is designed for rack installation.
Can one send a source to a single zone or multiple zones?
Each input has assignment buttons to send it to one or more of the three zones. Two unbalanced stereo RCA/cinch line inputs are provided for sources such as a media player, TV, or CD player.
