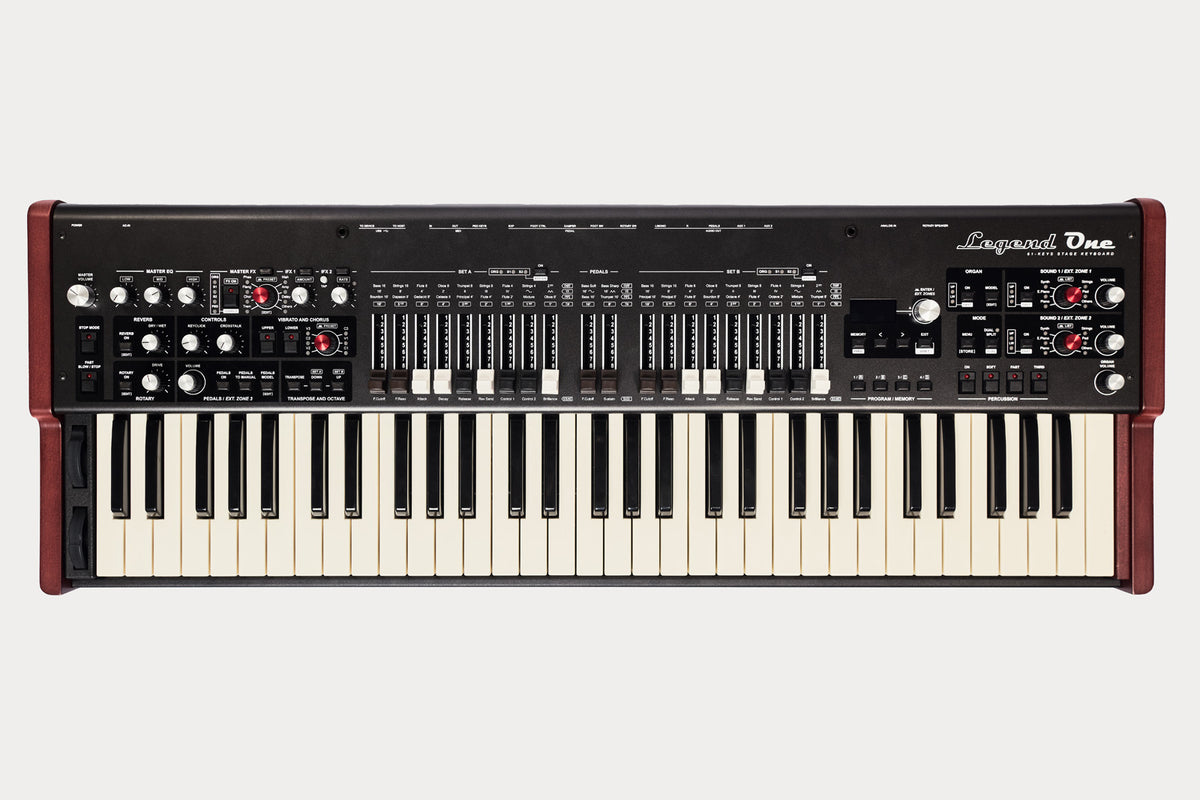

Viscount LEGEND ONE 61

A keyboard designed for organists who want to get straight to playing

With its straightforward layout, physical drawbars and waterfall action, this keyboard clearly belongs to the world of stage instruments dedicated to the organ. It is aimed at musicians looking for an immediate response under the fingers, quick editing on stage and the ability to expand their palette with electric pianos, synths, pads and even basses played from the pedalboard.

Its design, divided into several independent sections, gives it genuine flexibility, whether for jazz, gospel, vintage rock, pop or liturgical and studio applications. This is an instrument that focuses above all on ergonomics, customization and real-time sound control.

Keyboard design

The 61-note C-to-C waterfall keyboard features a light, fast action, particularly well suited to organ techniques such as glissandi, rapid repetitions and precise attacks. The 4 velocity curves plus 1 fixed mode allow you to fine-tune the response to your playing, while the Single, Split and Dual modes make it easy to divide the keyboard between several registers. The plus or minus 6-semitone transposition and plus or minus 2-octave range shift provide genuine flexibility for group playing, accompaniment or rapid key changes.

Sound quality

The organ section is based on TMT technology, “Tonewheel Modeling Technology”, with 91-note polyphony and several models inspired by major electromechanical instruments, along with pipe organs and more vintage tonal colors. The Sound 1/2 section uses HDS technology, “High Definition Sampling”, with 240-voice polyphony and 119 sounds covering pianos, electric pianos, synths, pads, strings, choirs, brass, guitars, chromatic percussion, bells and other keyboards. The Pedals section combines TMT and HDS to offer 22 bass models. The whole instrument is designed for high-quality external amplification, with highly detailed rotary cabinet simulation, a variety of reverbs, master EQ and advanced audio routing.

Built-in effects

The effects section offers a very comprehensive palette for live playing and sound shaping: Tremolo, vibrato, chorus, flanger, Phaser, wah, amp simulation, delay, ring mod, 3- and 5-band parametric EQs, 5-band graphic EQ, compressor and simple rot. It also includes 108 effects presets, 13 types of reverb, a programmable 3-band master EQ and a highly advanced Rotary Speaker section with Fast, Slow and Stop speeds, drive control, 8 presets plus 1 user configuration and numerous editing parameters.

Technical specifications

Effects	Wah, Reverb, Delay, EQ, Chorus, Flanger, Phaser, Ring modulation, Vibrato	Split & layer	layer, split
Bluetooth	No	Max polyphony	36 to 240 notes
Controller	Pitchbend, Modulation, Drawbars	USB to Host port	Yes
Velocity sensitive	Yes	Inputs	Expression pedal, Line in, Control pedal
MIDI DIN I/O	Yes	Outputs	Leslie, Stereo jack, USB Type B, Mono & stereo audio, Analog, 6.5 mm headphone, USB Type A
Number of keys	61	Color	Black
Touch	Semi-weighted	Finishing	Matt

Keyboard type	waterfall	Advanced Rotary settings	model selection, mic configuration, Memphis style, Stop position, drum/horn balance, rotor speeds, ramp-up and ramp-down times, direct level, output level, EQ
Range	C to C	Additional controls	audio routing, reverb send, octave shift, keyclick, crosstalk, hum level, preamp ao-28, key comp, swell mode
Touch curves	4 curves + 1 Fixed	Organ models	B3 1938, C3 1955, B3 1967, BC 1936, B3 1956, A100 1961, Baroque Pipe, Romantic Pipe, Symph Pipe, Farf Organ, Vx Organ
Keyboard modes	Single, Split, Dual	Number of sounds	119
Transpose	±6 semitones	Categories	pianos, electric pianos, synths, pads, strings, choirs, brass, guitars, chromatic percussion, bells, keyboards, and others
Octave	±2 octaves	Technologies	TMT + HDS
Technology	TMT "Tonewheel Modeling Technology"	Controls	audio routing, reverb send, octave shift, pedals sustain, filter cutoff, layer/split mode, velocity mode, thud mode
Polyphony	91	Number of bass models	22
Harmonic percussion	On/Off, Soft/Normal, Decay Fast/Slow, Harmonic 3rd/2nd	Models	T.Wheel Bass, Baroque Bass, Romantic Bass, Symph Bass, Farf Bass, Vx Bass, Organ Bass, Acoustic Bass, Finger Bass, Fretless Bass, Picked Bass, Slap Bass, Rhod Bass, Dark Pk Bass, Synth Bass 1, 2, 3, 4, 5, 6, Fat Bass, DX Bass
Vibrato/chorus	Upper and Lower On/Off, selector V1, V2, V3, C1, C2, C3, 4 presets	Master keyboard	3 external zones
Rotary Speaker	On/Off, speeds Fast, Slow, Stop, Drive, 8 presets + 1 Custom	Assignment	Upper, Lower, and Pedals
