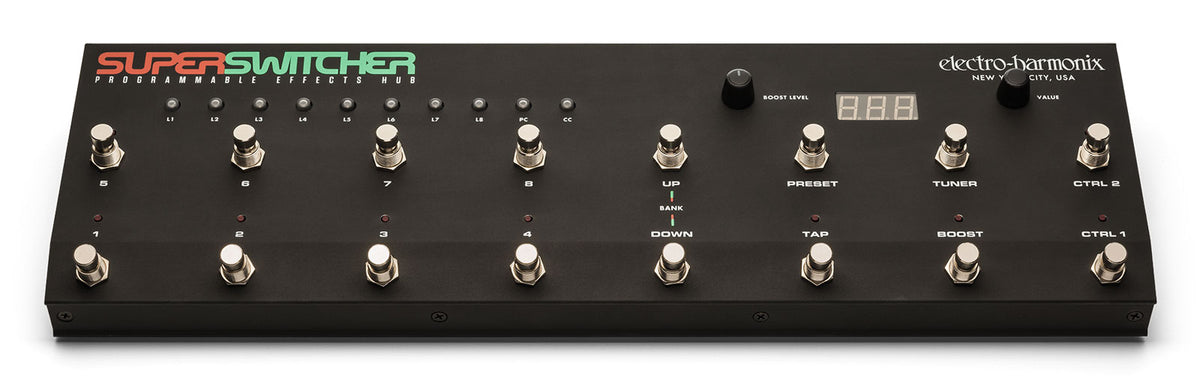

Electro Harmonix Super Switcher
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
The Essentials to Know About the Electro-Harmonix Super Switcher
The Essentials to Know About the Electro-Harmonix Super Switcher
- Take back control of your pedalboard : activate multiple pedals with a single press thanks to 8 relay bypass loops.
- 128 presets to instantly switch from one sound to another (16 banks of 8).
- Full mono and stereo routing : send/return, insert/return, and mono/stereo outputs to adapt to (almost) any setup.
- Advanced control : Tap Tempo, tuner output, footswitch Boost, MIDI In and Out, and MIDI clock management.
Manufacturer Information
Electro Harmonix
https://www.ehx.com
info@ehx.com
------------------------
Safety manager:
Filling Distribution
Email:
Address:
A modern switcher to tame complex pedalboards
When a pedalboard grows, the real challenge is no longer finding "the" perfect pedal, but chaining combinations without turning into a tap dancer. The Super Switcher follows this logic: centralize control, simplify changes, and make your rig more coherent whether you play in a home studio, rehearsal, or on stage. Its philosophy is clear: put control front and center, and relegate pedals (and their footswitches) to the background, while maintaining true wiring flexibility.Who is it for, and in what contexts?
The Super Switcher is aimed at guitarists and bassists who use multiple effects and want to change sounds quickly without risking leaving a pedal engaged. It is also well suited for musicians playing with a stereo setup (two amps, amp + mixer, or wet/dry chain), or who need reliable organization live.In terms of styles, it fits wherever soundscapes evolve quickly: rock, pop, metal, funk, worship, ambient... and more generally any situation where you need to switch from a clean verse to a saturated chorus, then to a lead with boost, all with a single press. The 128 presets also facilitate working by song (one patch per section) and repeatability in the studio.
Technical specifications
| Effects | Remote Control, Switch | Use | electric guitar |
| Format | Pedalboard | Color | Black |
| Type | sector | ||
| Preset organization | 16 banks with 8 presets each | Dimensions (mm) | 483 (w) x 153 (w) x 64 (h) |
| Tap Footswitch | BPM setting | Required voltage | 9.6VDC |
| Tuner Footswitch | sends the input signal to the tuner and mutes the signal from all loops or outputs | Consumption | 150mA at 9VDC |
| Boost Footswitch | activates an adjustable output gain control on the left and right channels | ||
You will also like
Fender
Switchboard Effects Operator
Earthquaker
Swiss Things
Line 6
Footswitch FBV3
Voodoo Lab
Amp selector ABY
Line 6
Helix Control
Radial
Headbone VT
Ik Multimedia
IRIG STOMP I/O IRIG CRANKSET WITH INTEGRATED AUDIO INTERFACE
Boss
ES-5
Questions frequently asked
Electro Harmonix Super Switcher: how many pedals can it control?
The eight mechanical relay bypass loops allow integration of up to eight pedals into storable combinations. The system offers 16 banks of 8 presets, totaling 128 presets.
Can the Super Switcher handle a stereo pedalboard?
Mono and stereo connections, with left and right outputs, allow integration of a stereo chain to two amplifiers or a mixing console.
Is the Super Switcher MIDI-compatible to sync a delay?
The MIDI section can send and receive MIDI clock. A tap signal can also be sent to the dedicated output. The BPM can be set globally or stored per preset.
How does silent tuning work on this switcher?
The tuner footswitch sends the input signal to the tuner output. It simultaneously mutes all loops or outputs to allow tuning without audio broadcast.
What power supply is required for the Super Switcher?
A 9.6 V DC power supply is required. The specified consumption is 150 mA at 9 V DC.
