An Effects Loop Manager Designed for Modern Pedalboards
The Switchboard was designed as a direct response to a well-known problem among guitarists and bassists: the bigger the pedalboard, the more complex signal management becomes. Between level variations, high-frequency losses, changes in effects order, and footswitch choreography, it becomes difficult to stay focused on playing. Here, the approach is decidedly "pro": a processor controls the reconfiguration and preset recall while maintaining a fully analog audio path.
Developed in collaboration with Ron Menelli, a recognized specialist in loop systems used by professionals, the Switchboard emphasizes ergonomics and reliability. The goal is simple: to offer you a compact switching platform capable of transforming a loaded pedalboard into a fluid, coherent, and immediately readable performance instrument.
Who Benefits from the Switchboard and in What Contexts Does It Make a Difference?
The Switchboard is aimed at musicians who use multiple pedals and want to switch sounds without compromise: guitarists in rock, pop, funk, blues, modern metal, ambient, worship, as well as bassists seeking clean management of drive/modulation/time chains. In live settings, it secures transitions: a single press can activate multiple effects, change the chain order, and recall a complete setting. In the studio, it speeds up takes and allows exploring effect combinations without spending time rewiring.
It suits both advanced musicians and perfectionists new to switching systems: the interface is designed for programming "by ear" and on the fly. If you have ever missed a verse entry because you had to activate two pedals and deactivate a third, you will immediately understand the value of a dedicated effects manager.
Technical specifications
| Effects | Looper, Switch | Use | electric guitar |
| Format | Pedalboard | Color | Beige |
| Type | sector | ||
Questions frequently asked
How many effects loops does the Fender Switchboard Effects Operator have?
The switching section includes five effects loops, each equipped with a true relay bypass. A disabled loop removes the corresponding pedal from the signal path.
Can the order of pedals be changed according to presets?

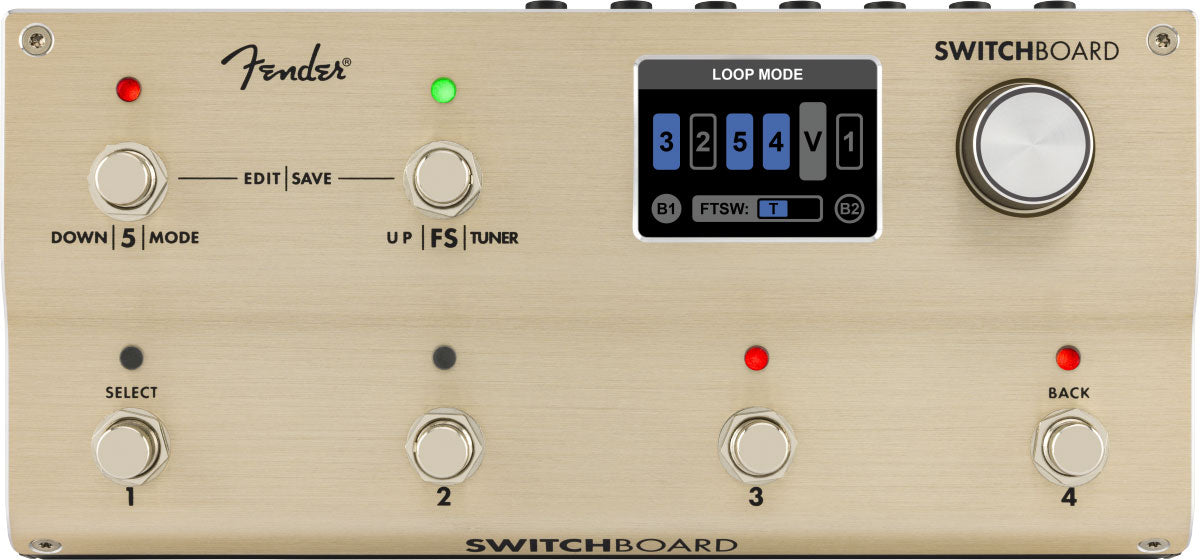

The order of the five loops can be redefined for each preset. For example, a delay can be placed before an overdrive in one setting, then after it in another. The color LCD screen graphically displays the active configuration.

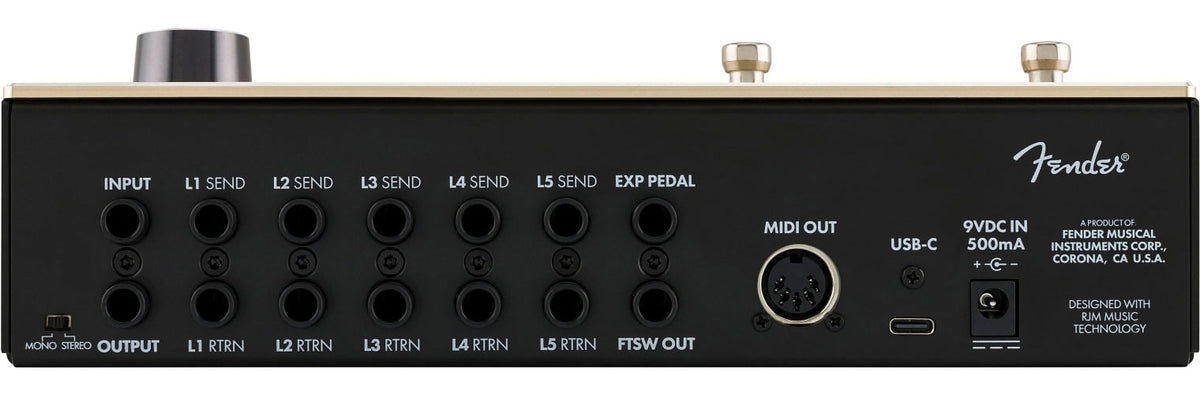

Can the Switchboard control an amplifier and MIDI pedals?
Centralized control allows managing an amplifier's footswitches and communicating with MIDI pedals. Multiple pedal changes can be recalled with a single press.

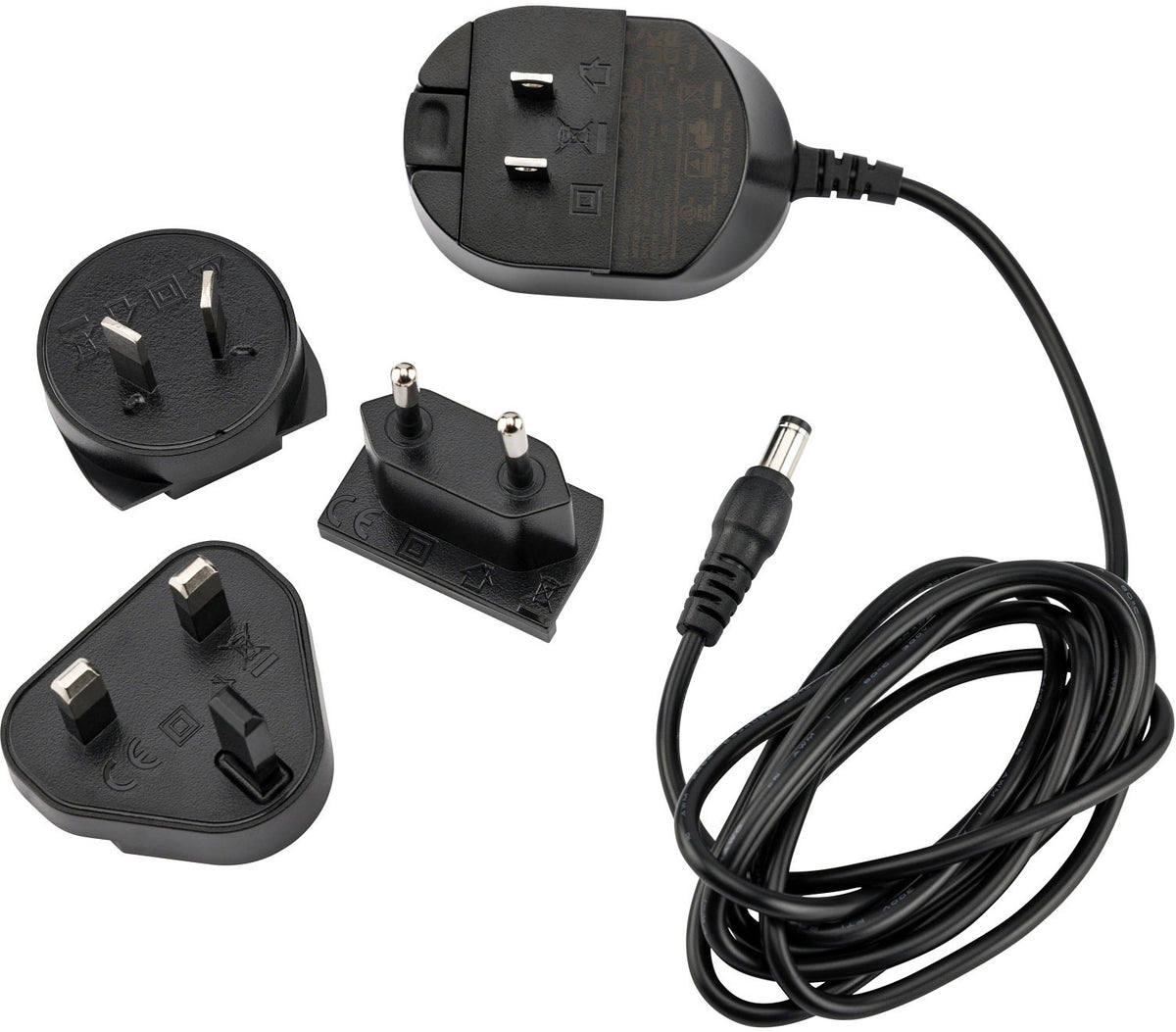

What power supply is required for this switcher?
A 9 V DC power supply with center negative, capable of providing 500 mA, is required.
Does the signal remain analog with long cable lengths?
With an input impedance of 1 megaohm and an output impedance of 150 ohms, the analog signal path relies on high-fidelity buffers. Relay bypasses help preserve a direct signal when loops are inactive.
