ETX: An Electro-Voice Series Designed for Sound Reinforcement Performance
With the ETX-12P, Electro-Voice follows a clear logic: to offer a powered loudspeaker capable of delivering professional-level sound reinforcement without complicating setup. Its 12-inch format aims for the ideal balance between low-mid impact, definition, and versatility, whether as a main speaker, delay fill, or stage monitor. The onboard DSP and FIR filtering contribute to a more controlled reproduction, designed to stay clean and intelligible even at high levels.
A Versatile Active Speaker for Concerts, DJs, and Events

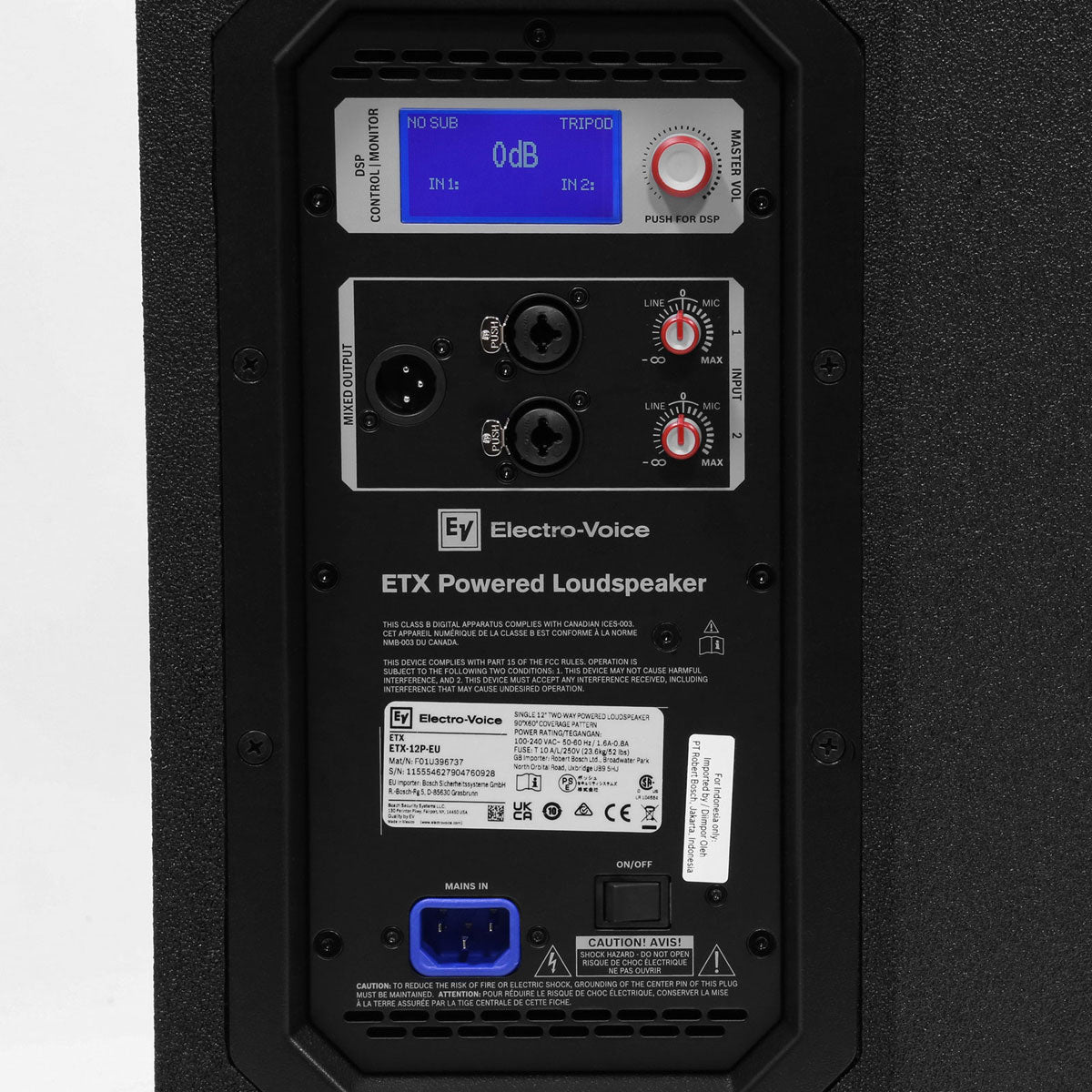

The Electro-Voice ETX-12P targets contractors, bands, DJs, and venues looking for an active speaker capable of covering a wide variety of configurations: front of house for small to medium stages, reinforcement for larger systems, or stage monitoring when reproduction accuracy is a priority. The presence of 2 Combo XLR/6.35mm Jack inputs facilitates common connections (mixer, DJ controller, line sources), while the XLR Link output simplifies daisy-chaining to a second speaker.
DSP, FIR Filtering, and Transducers: Precision and Efficiency Serving the Mix
Designed to deliver powerful and controlled sound, the ETX-12P combines a 2000 W Class D amplifier with a DSP featuring an LCD screen. The goal is simple: to offer direct control over internal processing and allow quick adaptation to the room, placement, and usage (playback or monitoring).
FIR Filter: Coherence and Definition
The FIR filter contributes to a more precise listening experience, with better coherence in the overlap zone between the 12-inch woofer and the tweeter. The result: a cleaner mix sensation, better-defined transients, and enhanced intelligibility, particularly useful for vocals and acoustic instruments.
Controlled Coverage and High Sound Level
With a 90deg x 60deg dispersion, the ETX-12P aims for even projection, practical for controlling energy sent to the sides and optimizing audience coverage. Its max SPL of 135 dB allows for dynamic headroom, useful in demanding performances where impact is needed without perceptible saturation.
Installation and Mobility: Field-Oriented Design

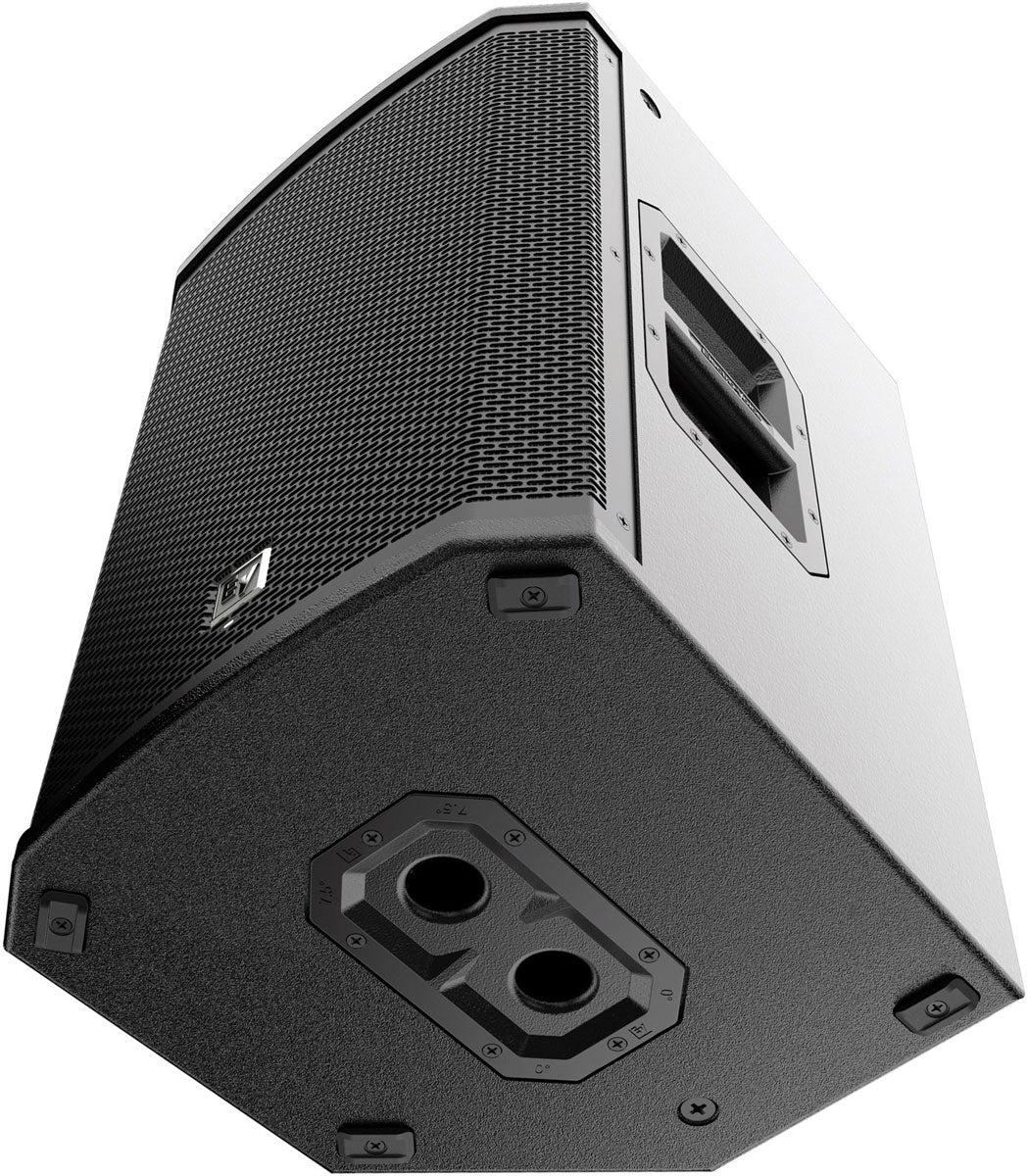

Between the dual pole mount and the M20 coupling thread, the speaker adapts to pole or subwoofer mounting configurations. The eight M10 threaded points open the door to fixed or suspended installations, while the steel grille enhances resistance to transport and stage rigors.
Technical specifications
| Bluetooth | No | ||
| Model | Electro-Voice ETX-12P | Inputs | 2x Combo XLR/6.35mm Jack (TRS 6.3 mm) |
| Woofer | SMX 12-inch (300 mm) | Output | XLR Link |
| Tweeter | 1.25 inch | Grille | black steel |
| Power | 2000 Watts | Mounting points | eight M10 threaded points |
| Amplifier type | Class D | Pole mount | dual pole mount |
| Frequency response | 55 Hz to 20 kHz | Threading | M20 for coupling tube |
| Frequency range | 43 Hz to 20 kHz | Color | black |
| Crossover frequency | 1600 Hz | Dimensions | 613 x 381 x 400 mm |
| Max SPL | 135 dB | Net weight | 23.6 kg |
| Dispersion | 90deg x 60deg | Power supply | 100-240 V / 50-60 Hz / 1.6-0.8 A |
Questions frequently asked
Is the Electro-Voice ETX-12P suitable as a front PA speaker?
This active speaker can be used as a front PA for small to medium-sized stages. Its 90° x 60° coverage pattern and maximum SPL of 135 dB provide controlled audience coverage.
Can it be used as a stage monitor?
The 12-inch format and DSP with FIR filtering allow for use as a stage monitor. The coherence between the 300 mm SMX woofer and the 1.25-inch tweeter enhances vocal intelligibility.
What inputs and outputs are available?
Two Combo XLR/6.35 mm Jack inputs are provided to connect a mixer, DJ controller, or line source. An XLR Link output allows daisy-chaining a second speaker.
What power and frequency response does this speaker offer?
The Class D amplification delivers 2000 W. The stated frequency response ranges from 55 Hz to 20 kHz, with an extended frequency range of 43 Hz to 20 kHz.
How to mount the speaker on a stand or suspend it?
A dual socket and M20 thread enable mounting on a stand or coupling tube above a subwoofer. Eight M10 threaded points are available for fixed or suspended installation. The net weight is 23.6 kg.
