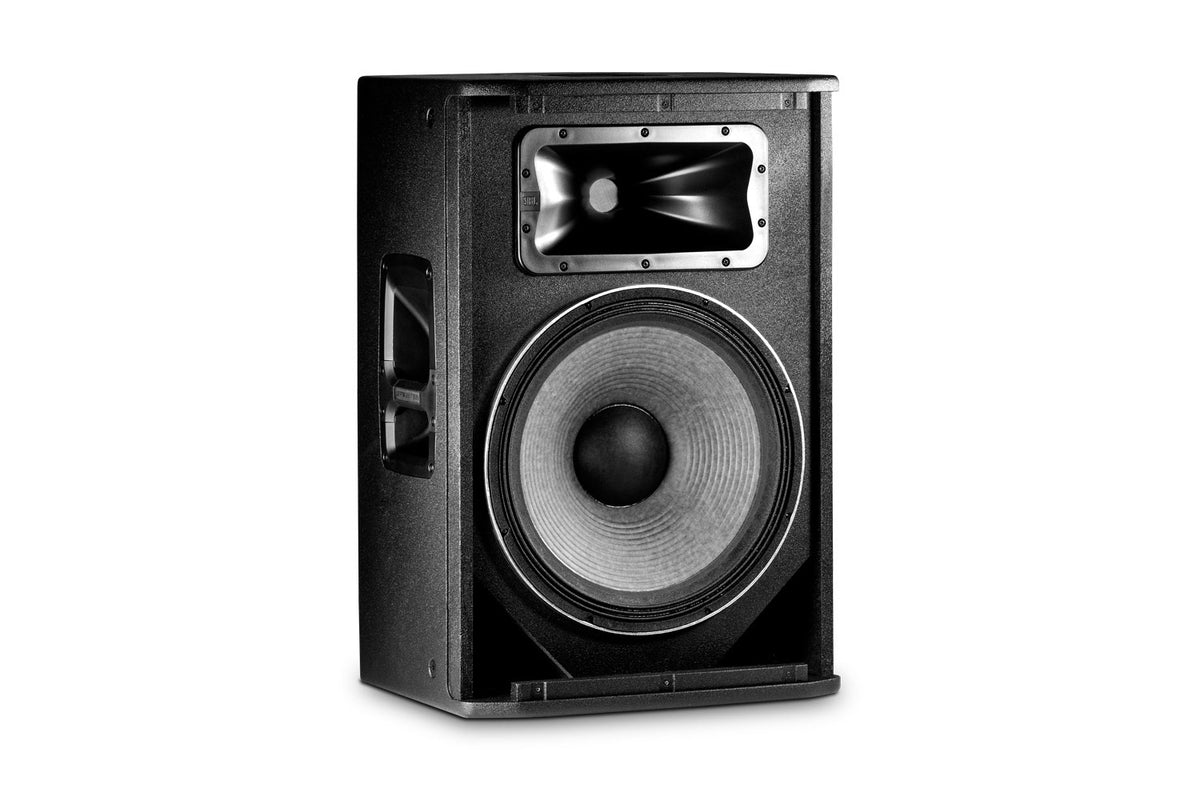

JBL SRX815P (unit)

A Benchmark in the Portable SRX800 Series: Power, Consistency, and Mobility

The JBL SRX815P is at the heart of the "SRX800" series, designed to offer a truly "all-in-one" approach: recent JBL transducers, integrated Crown amplification, and advanced digital processing. The goal is clear: to provide an active speaker capable of delivering high output while remaining easy to deploy in mobile setups. Its tour-oriented design (robust finishes, transport ergonomics, installation options) makes it a solid choice for building a cohesive system, whether as a speaker pack, occasional reinforcement, or main PA element.

A 15-Inch Active Speaker Designed for Professional Sound Reinforcement (Front of House and Monitor)

The SRX815P targets providers and technicians who alternate between events, concerts, clubs, multipurpose halls, houses of worship, and corporate gigs, with a constant need: reliable sound, quick setup, and enough power headroom. On front of house, its controlled directivity helps focus energy on the audience. As a stage monitor, it delivers comfortable levels while minimizing feedback risks thanks to controlled dispersion and DSP processing that facilitates tuning according to the stage and microphones used.

Processing, Control, and Build: Key Advantages on the Road

Crown DriveCore Amplification: Dynamic Headroom and High-Level Performance

With Class D amplification and Crown's DriveCore technology, the SRX815P is designed to deliver substantial output while maintaining clean and stable response. This power reserve translates into better transient handling (kick drum attacks, bass slaps, projected vocals) and comfortable operation when sustained volume is required.

96 kHz DSP with FIR, LevelMax, and Memories: Fast and Repeatable Setup

The onboard DSP operates at 96 kHz with FIR filters and LevelMax limiter to balance precision, protection, and coherence at high levels. The 50 user presets allow storing settings adapted to your venues, recurring monitors, or configurations (front of house only, wedge monitor, side fill). Compatibility with JBL V5 presets (Vertec/VTX) facilitates integration into larger PA systems while maintaining a consistent sonic signature and tuning logic.

HiQnet Network Control: Remote Monitoring and Adjustment

In multi-speaker setups, HiQnet control is a real time saver: monitoring, adjustments, and parameter management from a control station, while keeping an overview of the system. The etherCON Ethernet connector is suited to stage and touring demands, providing more secure and protected connections than standard RJ45 connectors.

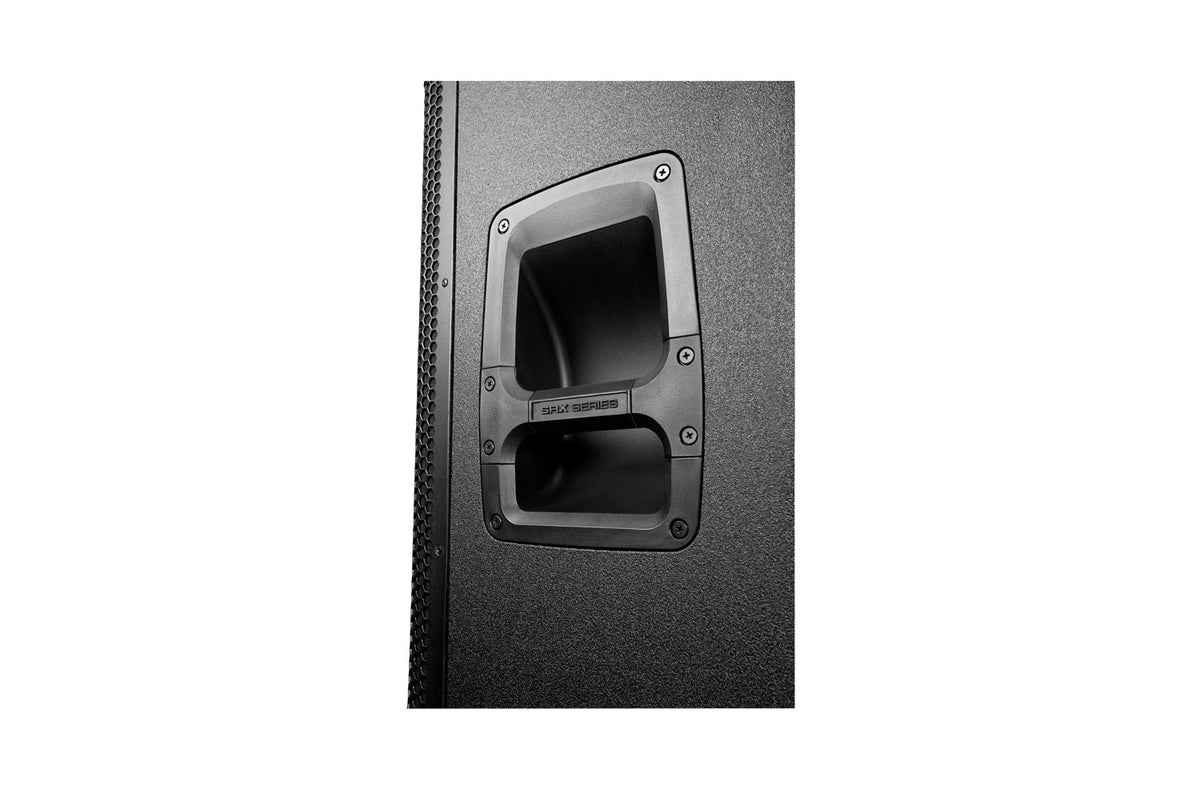

Roadworthy Design: Installation, Rigging, and Transport

Featuring 12 M10 rigging points, a dual 36 mm pole mount, and a black DuraFlex finish, the SRX815P is built for repeated assembly and disassembly. It adapts equally well to pole mounting or flown system integration, while meeting the mobility needs of providers and musicians.

Technical specifications

Battery	No	Cutaway	Yes
Number of channels	2 channels	Speaker structure	wood
Bluetooth	No	Inputs	combo XLR/jack
Speaker diameter	1,5", 15"	Outputs	XLR
Number of speakers	2	Color	Black
EQ	Yes	Power output	2000 W

Type	15-inch powered 2-way stage monitor/PA speaker, bass-reflex	DSP	400 MHz Sharc processor, 20 parametric EQs, 2 s delay, signal generator, input mixing, amplifier monitoring
Frequency Response	44 Hz - 20 kHz (+/- 3 dB), 36 Hz - 21 kHz (-10 dB)	Network	1 x Neutrik etherCON
Max SPL at 1 m	137 dB	Rigging	12 M10 points
Nominal Dispersion	90 x 50	Mounting	dual 36 mm pole mount
Low Frequency	JBL 2275F, 380 mm (15 inches), Differential Drive technology, 3-inch voice coil, lightweight ferrite magnet	Finish	black DuraFlex
High Frequency	JBL 2432H, 37.5 mm (1.5 inches), neodymium compression driver	Dimensions (W x D x H)	478 x 458 x 691 mm
Amplification	2000 W peak, Class D, DriveCore technology by Crown	Weight	28.6 kg
Signal-to-Noise Ratio	103 dB
