FBT Install Archon 112

Name: Archon 112
Brand: FBT Install
SKU: 422562
Price: 1199.00 EUR
Availability: InStock

1.199,00 €VAT incl.

3,00 € Ecotax included

Reference price

Available on order

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 422562

EAN : 8034138362541

FBT Install

This item is covered for 3 years

Information

Essential Information About the FBT Install Archon 112 Passive Speaker
• Powerful and precise 2-way : 500 W RMS (2000 W Peak) for clear sound reinforcement, with excellent dynamic headroom.
• Controlled projection : constant directivity rotatable horn with 70deg (H) x 50deg (V) dispersion, ideal for cleanly covering a listening area.

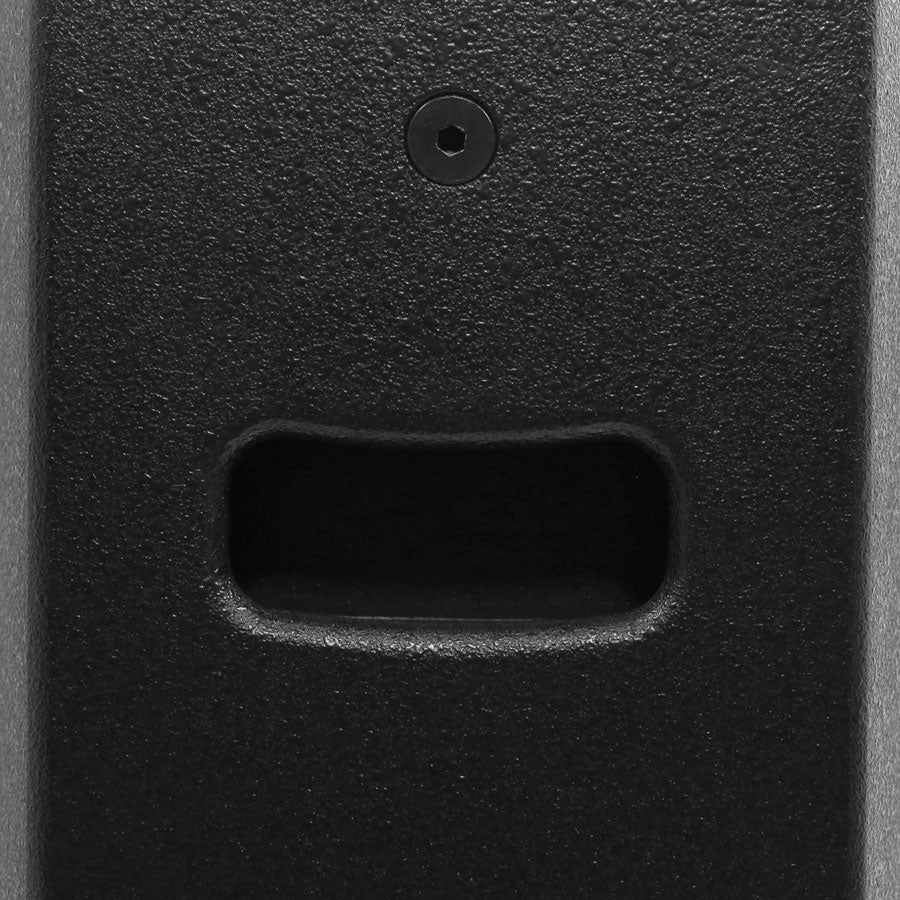

• Designed for installation : 15 mm Baltic birch plywood enclosure, 12 x M10 threaded mounting points, 35 mm pole socket, and rear handle.

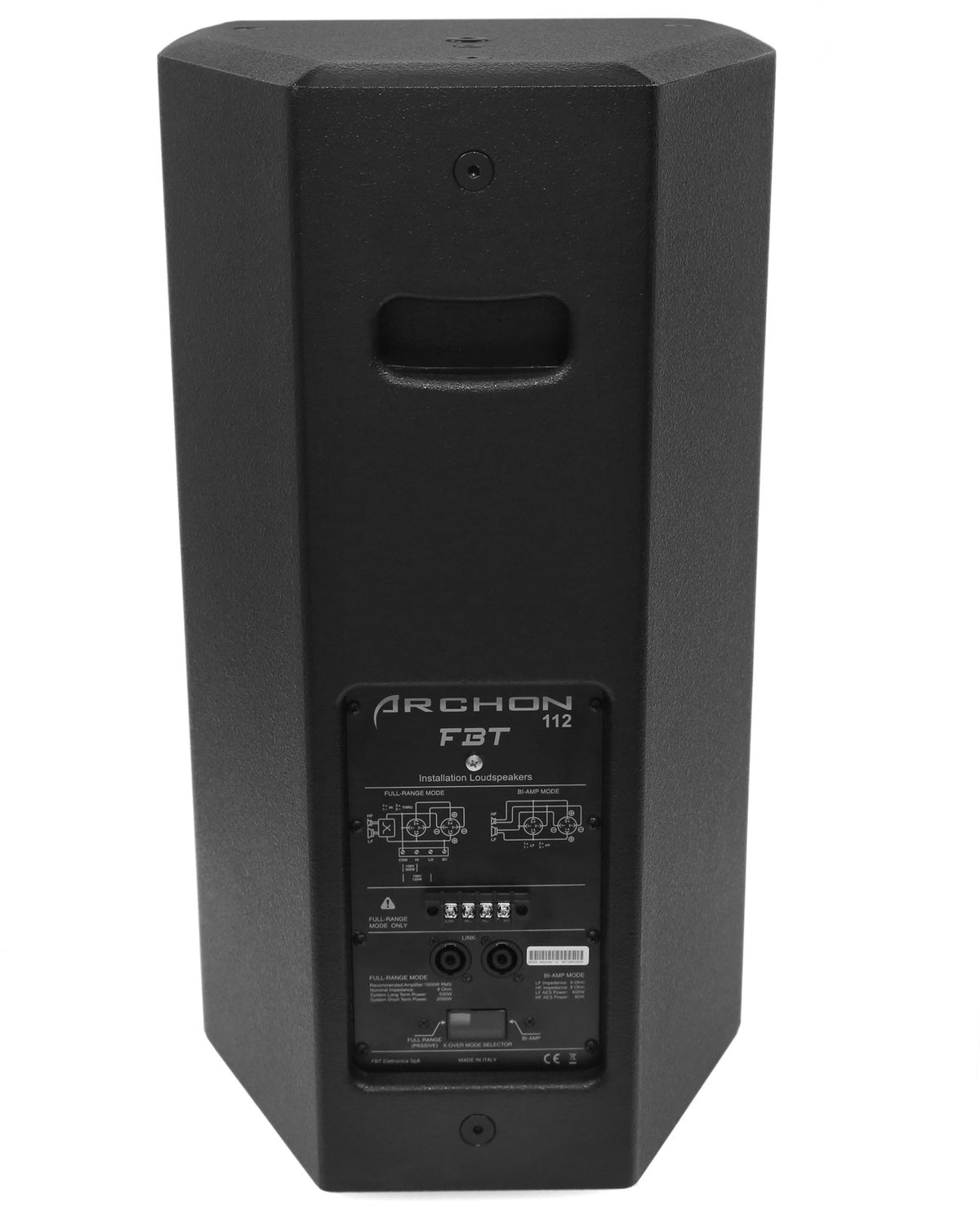

• Professional connectivity : 2 Speakon NL4 + Euroblock inputs for easy integration into venue or stage wiring.

Archon 112

1.199,00 €VAT incl.

3,00 € Ecotax included

Reference price

The Archon Series: An "install" approach designed for sound diffusion

With the Install Archon 112, FBT offers a passive speaker oriented towards fixed sound reinforcement and integration : versatile format, robust construction, and comprehensive mounting options. Its goal is simple: to provide reliable and consistent sound diffusion over time, whether as a front-of-house speaker, fill, or monitor, while maintaining a sound signature suited for professional use.

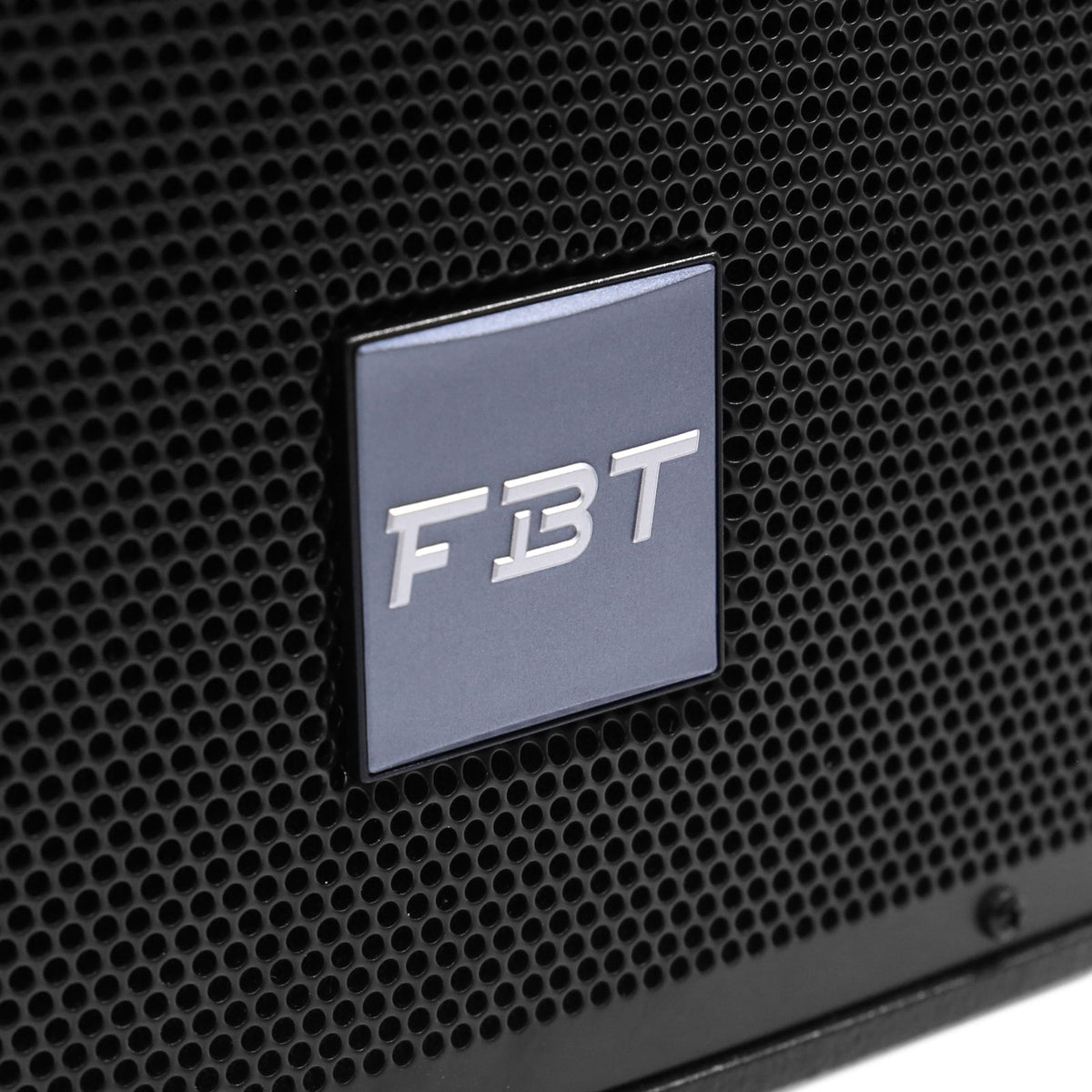

Its 12-inch format makes it a balanced choice: enough low-end presence for musical programs, and clear articulation in the high frequencies thanks to the tweeter and constant directivity horn. The rotatable FBT logo also allows for clean aesthetic integration regardless of mounting orientation.

Intended Uses and Users

The FBT Install Archon 112 is aimed at installers, service providers, and equipped venues seeking a high-performance passive speaker that is easy to deploy: multipurpose rooms, clubs, music bars, places of worship, event spaces, fixed stages, or mobile setups requiring a solid and efficient speaker.

With a sensitivity of 99 dB (1W/1m) and a maximum peak SPL of 133 dB, it can deliver authoritative sound without overdriving amplification. The nominal impedance of 8 Ohms facilitates pairing with many amplifiers, while the 35 mm pole socket allows quick stand mounting when suspension is not required.

Technical specifications

Bluetooth

Questions frequently asked

What amplification should be used with the FBT Install Archon 112?

An amplification of 1000 W RMS is recommended by FBT. The nominal impedance of 8 ohms facilitates pairing with many sound reinforcement amplifiers.

Can the coverage be adapted for horizontal installation?

The constant directivity rotatable horn allows orienting the coverage of 70° horizontal x 50° vertical according to the mounting direction. This configuration helps maintain consistent dispersion in both vertical and horizontal setups.

What connections are available on this passive speaker?

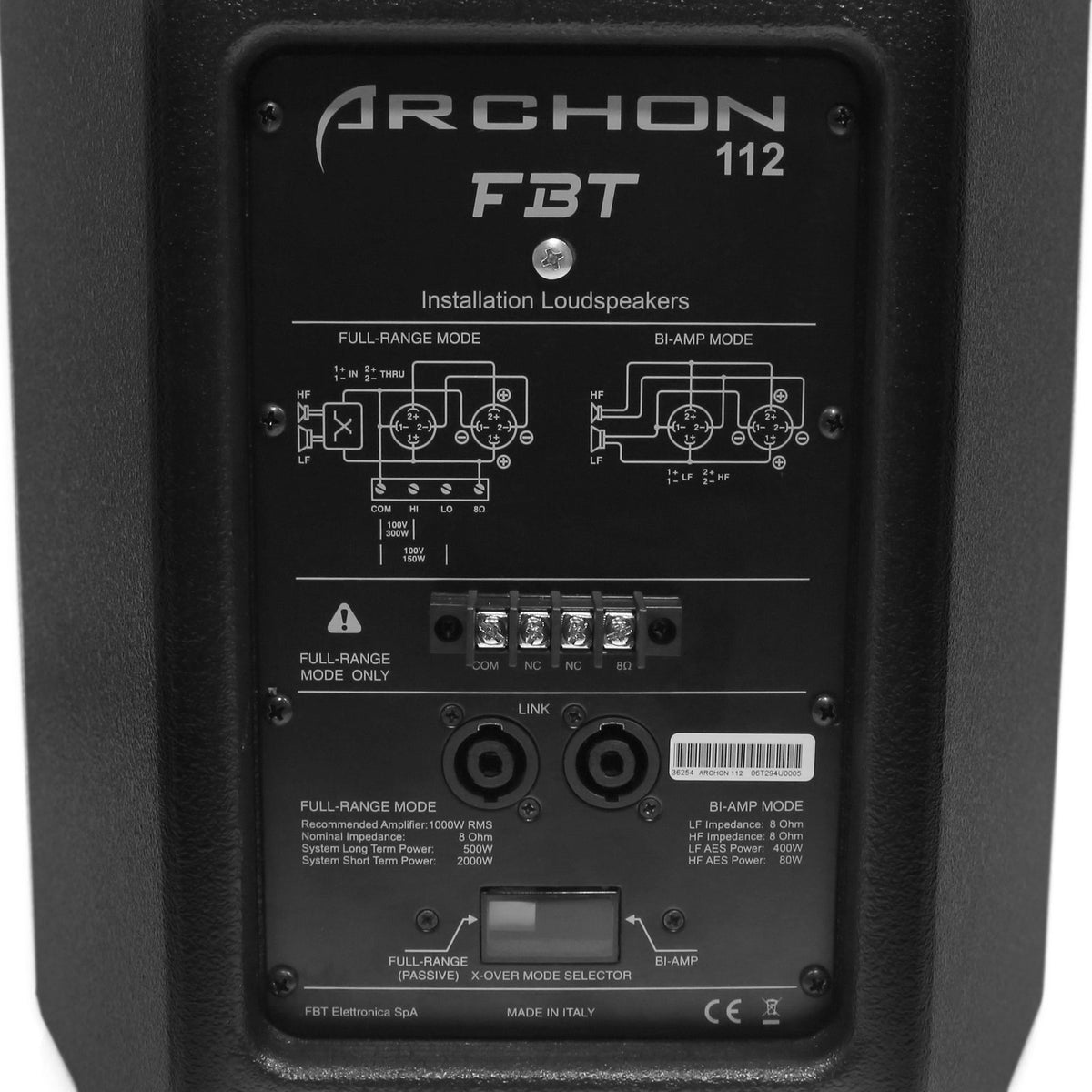

The connectivity includes two Speakon NL4 inputs and a Euroblock terminal.

Can it be suspended or mounted on a stand?

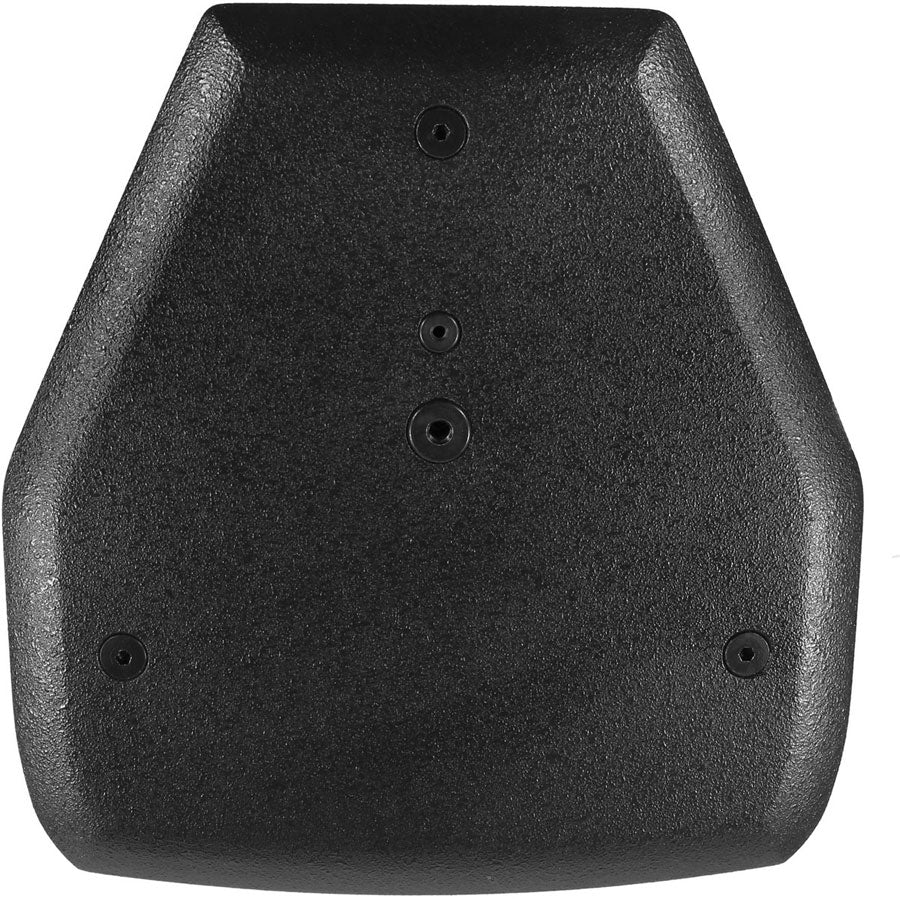

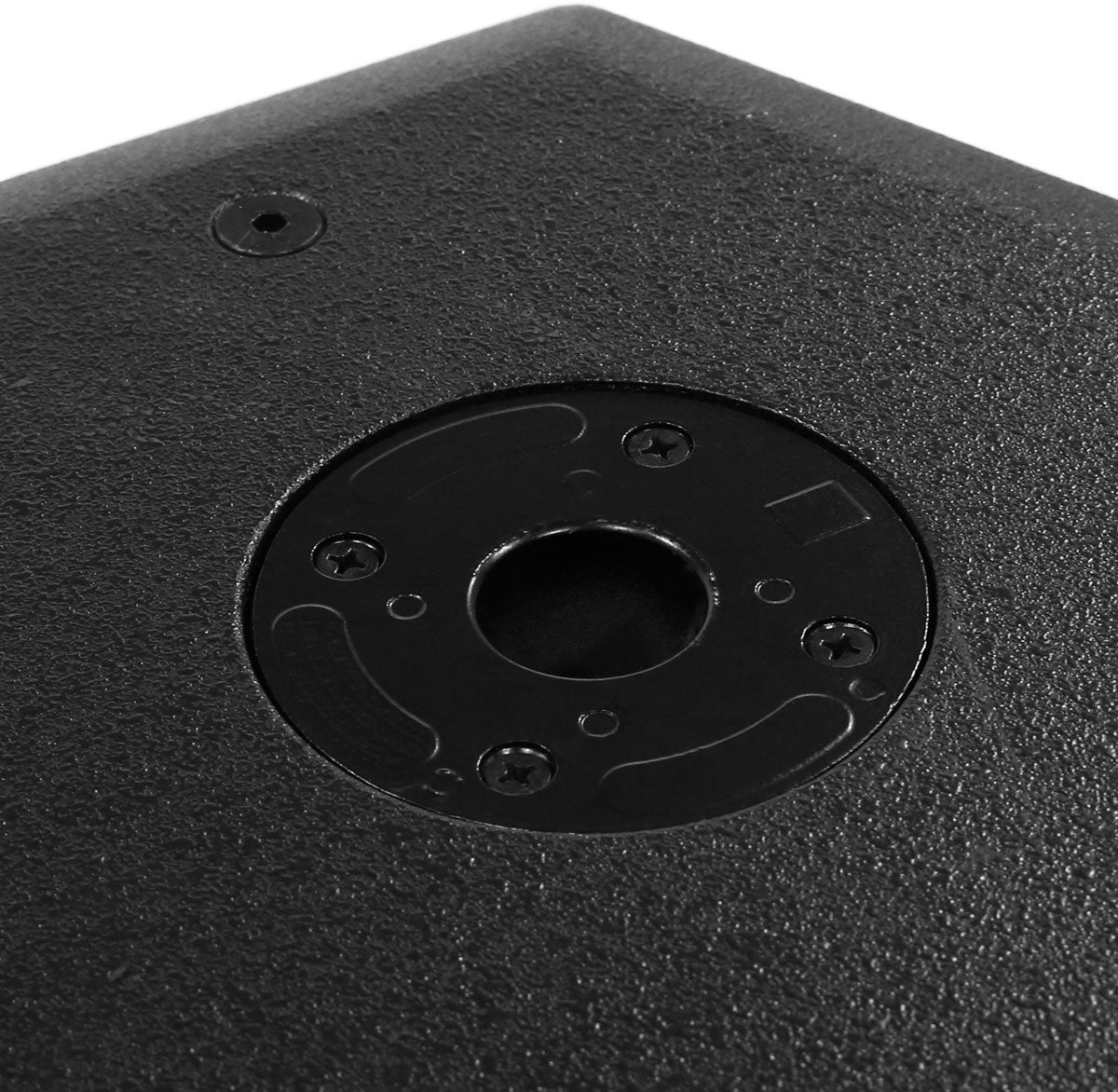

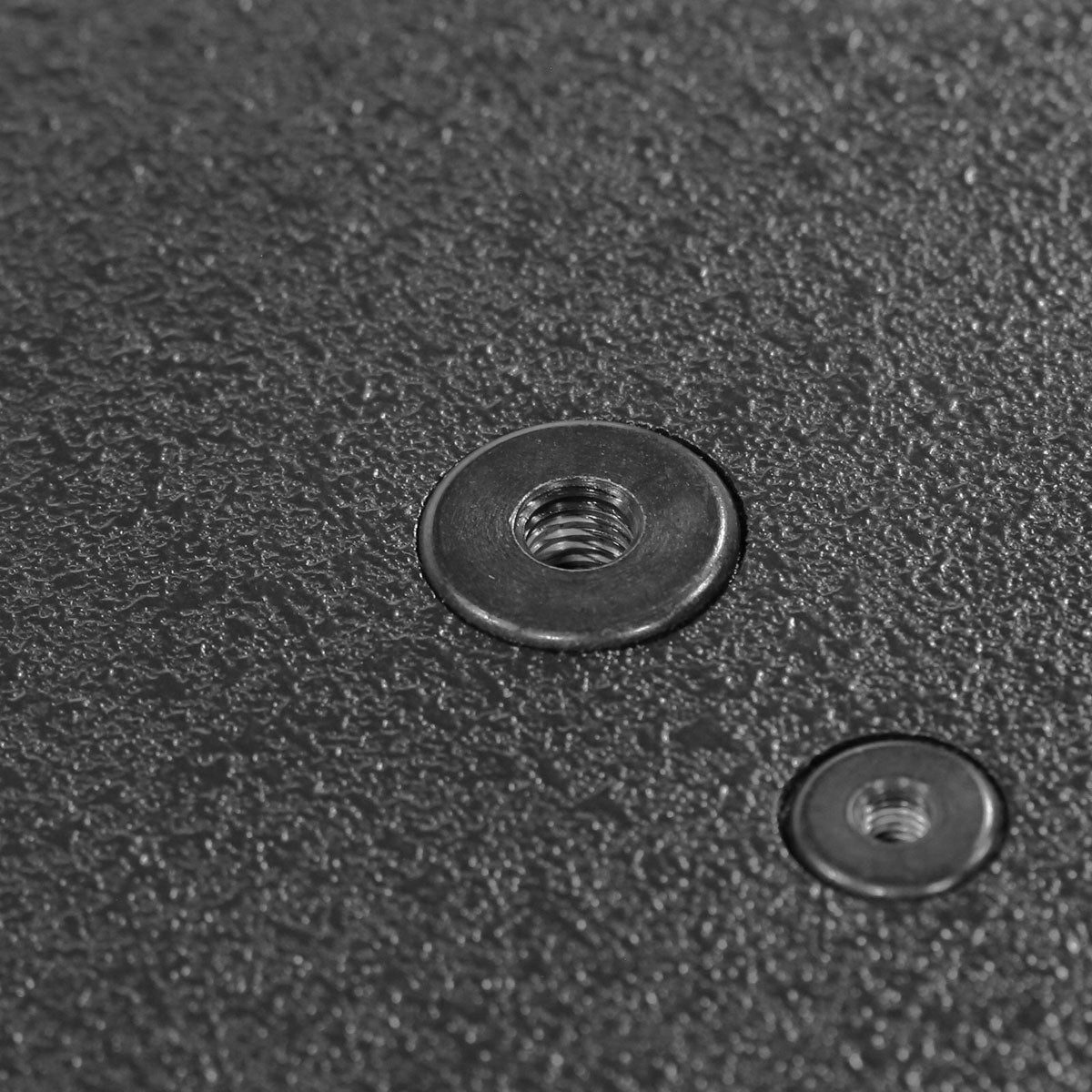

Twelve M10 threaded attachment points are provided for suspension. A 35 mm socket also allows stand mounting. The rear handle facilitates handling during installation.

What frequency response and sound level does it deliver?

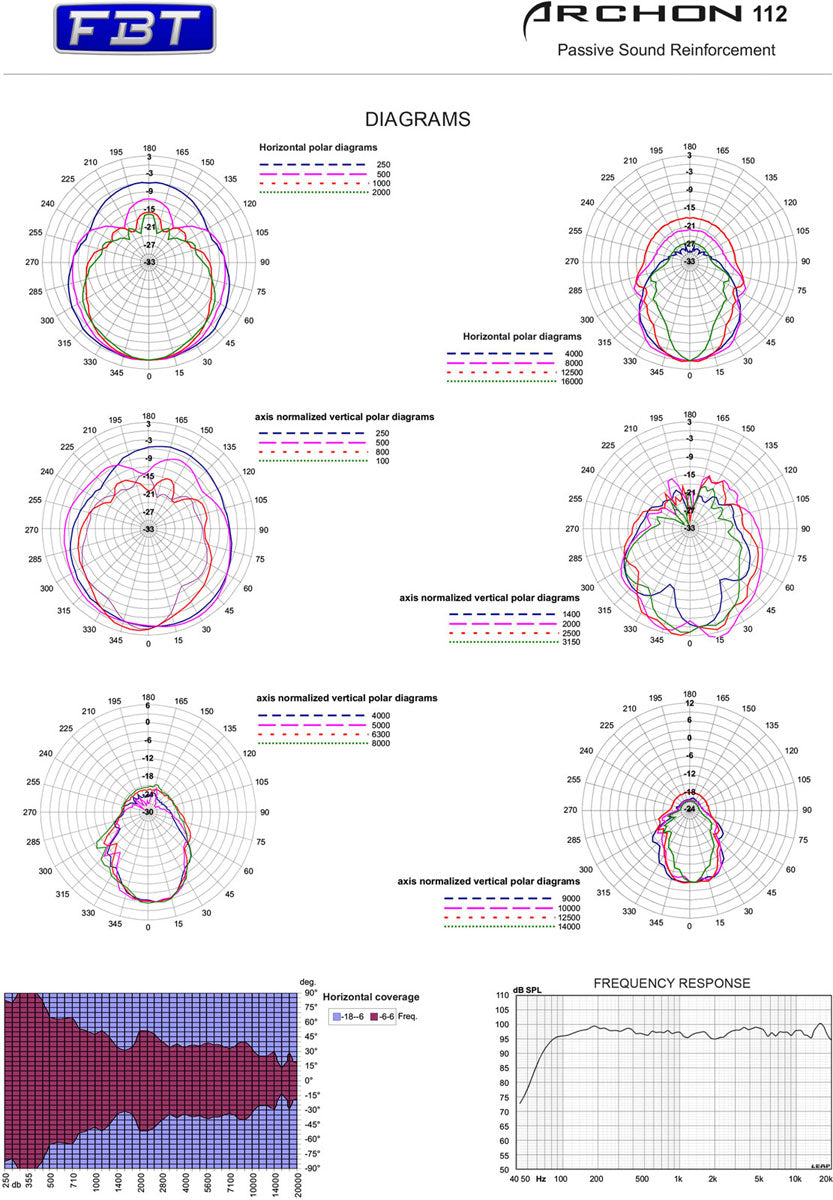

The specified frequency response ranges from 50 Hz to 18 kHz, with a crossover frequency at 1.6 kHz. Sensitivity reaches 99 dB at 1 W/1 m and the maximum peak SPL is 133 dB.
