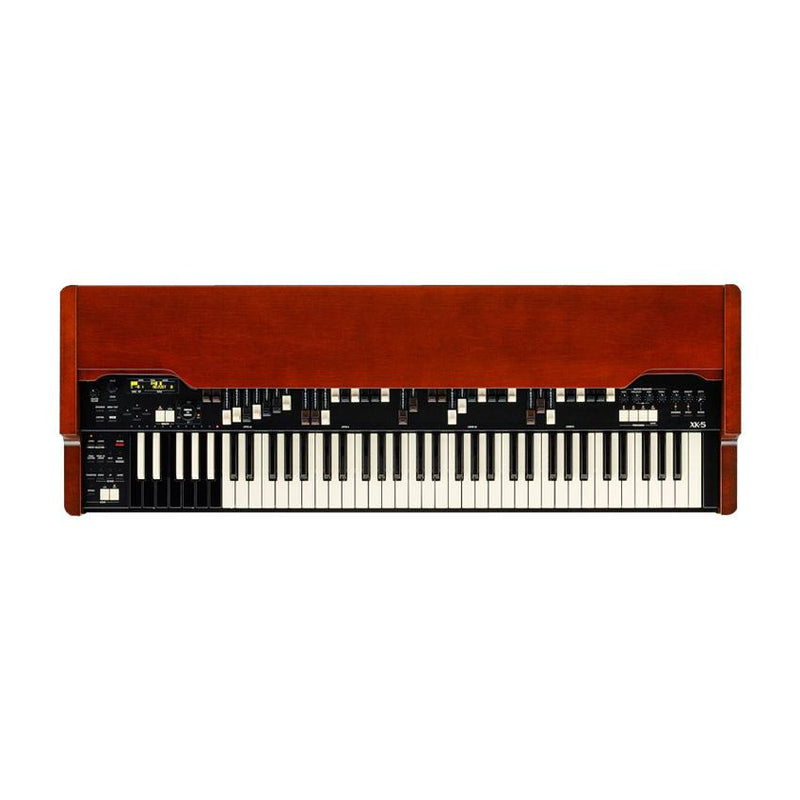

A Premium Clonewheel That Respects Hammond Tradition
The Hammond XK-5 sits at the top of the range for keyboardists seeking the attack, dynamics, and character of a great Hammond organ without the constraints of a vintage instrument. It combines advanced tonewheel modeling, "old-school" ergonomics (drawbars, presets, dedicated controls), and modern MIDI integration to instantly switch from classic registrations to more complex stage setups.
Keyboard Design
The XK-5 features a 73-note Waterfall keyboard in total (61 playing keys + 12 Preset keys), designed for organ playing: clear attacks, fast repetitions, natural glissandos, and palm smears. The Split function benefits from a dedicated control panel and an assignable split point to organize Upper/Lower or structure zones according to your playing style. Support for an optional pedalboard is provided with dedicated management for 25 notes.
Sound Quality
The MTW (Modeled Tone Wheels) engine is designed to closely reproduce organ behavior, with 61-note polyphony for the keyboard and 5 notes for the pedals. Regarding tones, the instrument offers 4 keyboard voicings (A-100, B-3, C-3, Mellow) and 4 pedal voicings (Normal, Muted, Synth 1, Synth 2). Customization continues through Custom Tone Wheel (CTW): 3 Factory and 3 User settings for A-100/B-3/C-3/Mellow, with adjustable parameters for each tonewheel, ideal for tailoring projection, warmth, and character to your amplification.
Built-in Effects
- Tremolo
- Auto Pan
- Wah-Wah
- Ring Modulator
- Phaser
- Flanger
- Chorus
- Delay
- Reverb (11 programs)
Each effect features adjustable parameters to precisely control the tone, from subtle modulation to pronounced effects. The equalization combines a Master Equalizer (Bass/Mid/Treble) with adjustable gain and adjustable mid frequency, a programmable equalizer (Bass/Mid/Treble, adjustable mid frequency), and a Hammond Preamp Tone Control to finalize the overall voicing.
For tone grit, the XK-5 includes an Overdrive selectable between Tube or Solid State with adjustable level, as well as a Tube Preamp (12AU7 and 12AX7 tubes) with adjustable Drive. The MT Matching Transformer adds a more "alive" response with adjustable Drive, Hysteresis, and level settings for upper/lower/percussion. The Leslie section is very advanced (STOP/FAST/BYPASS, customizable cabinets, speeds, transitions, balances, and microphones), complemented by a reverb with Leslie On Reverb ON/OFF option.
Technical specifications
| Effects | Wah, Tremolo, Delay, Multi-effects, Chorus, Flanger, Phaser, Ring modulation | Touch | Lightweight |
| Arpeggiator | No | Split & layer | split |
| Bluetooth | No | Max polyphony | 61 |
| Controller | Pedals, 2 sets of 9 physical harmonic bars | USB to Host port | Yes |
| Number of speakers | 0 | Inputs | Expression pedal, Audio in, Control pedal |
| Velocity sensitive | Yes | Outputs | Leslie, Mono & stereo audio, 6.5 mm headphone |
| MIDI DIN I/O | Yes | Color | Black |
| Number of keys | 73 | Finishing | Matt |
Questions frequently asked
Does the Hammond XK-5 have a Waterfall keyboard?
The Waterfall keyboard includes 61 playing keys, complemented by 12 Preset keys, making a total of 73 keys. This setup is designed for glissandos, palm smears, and fast repetitions characteristic of organ playing.
Can a pedalboard be used with this Hammond organ?
Support for an optional 25-note pedalboard is provided. The engine then assigns a polyphony of 5 notes to the pedals and offers four voicings: Normal, Muted, Synth 1, and Synth 2.
What organ sounds are available on the XK-5?
The MTW engine offers four keyboard voicings: A-100, B-3, C-3, and Mellow. The Custom Tone Wheel function includes 3 Factory settings and 3 User presets, with an adjustable parameter for each tone wheel.
Does the Hammond XK-5 include Leslie simulation and saturation?
The Leslie section provides STOP, FAST, and BYPASS modes, with cabinet, speed, transition, balance, and mic settings. The Tube or Solid State overdrive is adjustable, while the Tube Preamp features 12AU7 and 12AX7 tubes. The MT Matching Transformer adds Drive and Hysteresis controls.
What MIDI and audio connectivity is available?
Connectivity includes MIDI DIN IN 1, IN 2, and OUT, as well as a USB B To Host port and a USB A port for USB sticks. Outputs include Leslie, mono/stereo audio, and a 6.5 mm jack headphone output.
