HK Audio L5MKII-115XA

Name: L5MKII-115XA
Brand: HK Audio
SKU: 373735
Price: 1369.00 EUR
Availability: InStock

1.369,00 €VAT incl.

3,10 € Ecotax included

Reference price

In stock online

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 373735

EAN : 4039373024609

This item is covered for 3 years

Information

Essential Information About the HK Audio L5MKII-112XA Active Speaker
• Powerful Network DSP controllable via Ethernet for precise presets, delays, and equalizations, directly from dedicated software.
• High Sound Pressure up to 130 dB (138 dB peak) with 600 W RMS (1,200 W peak) to confidently sound medium-sized stages.
• 15-inch Speaker and 1.7-inch Driver with a rotatable 70 x 50 degrees horn to adapt coverage according to the setup.

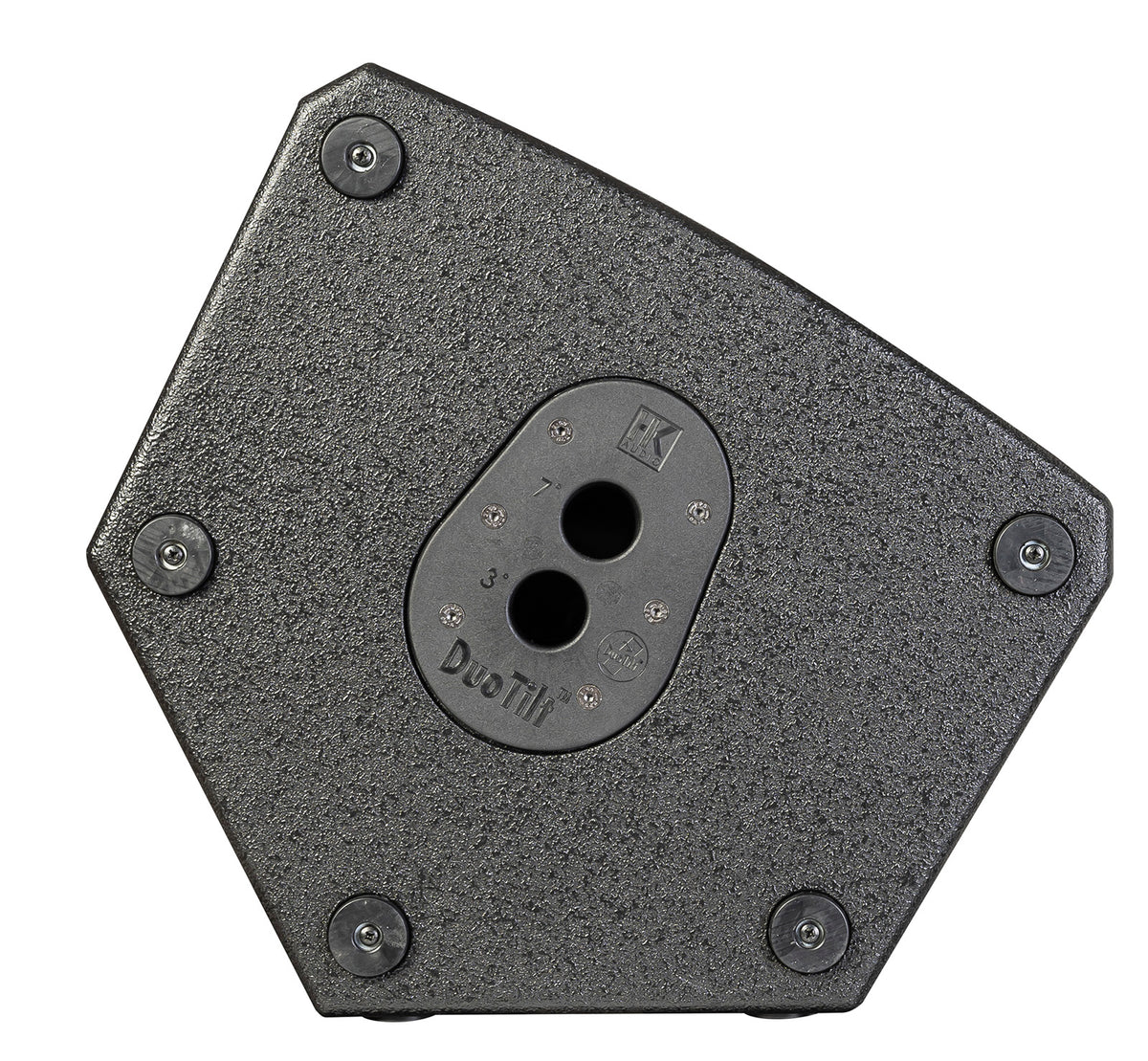

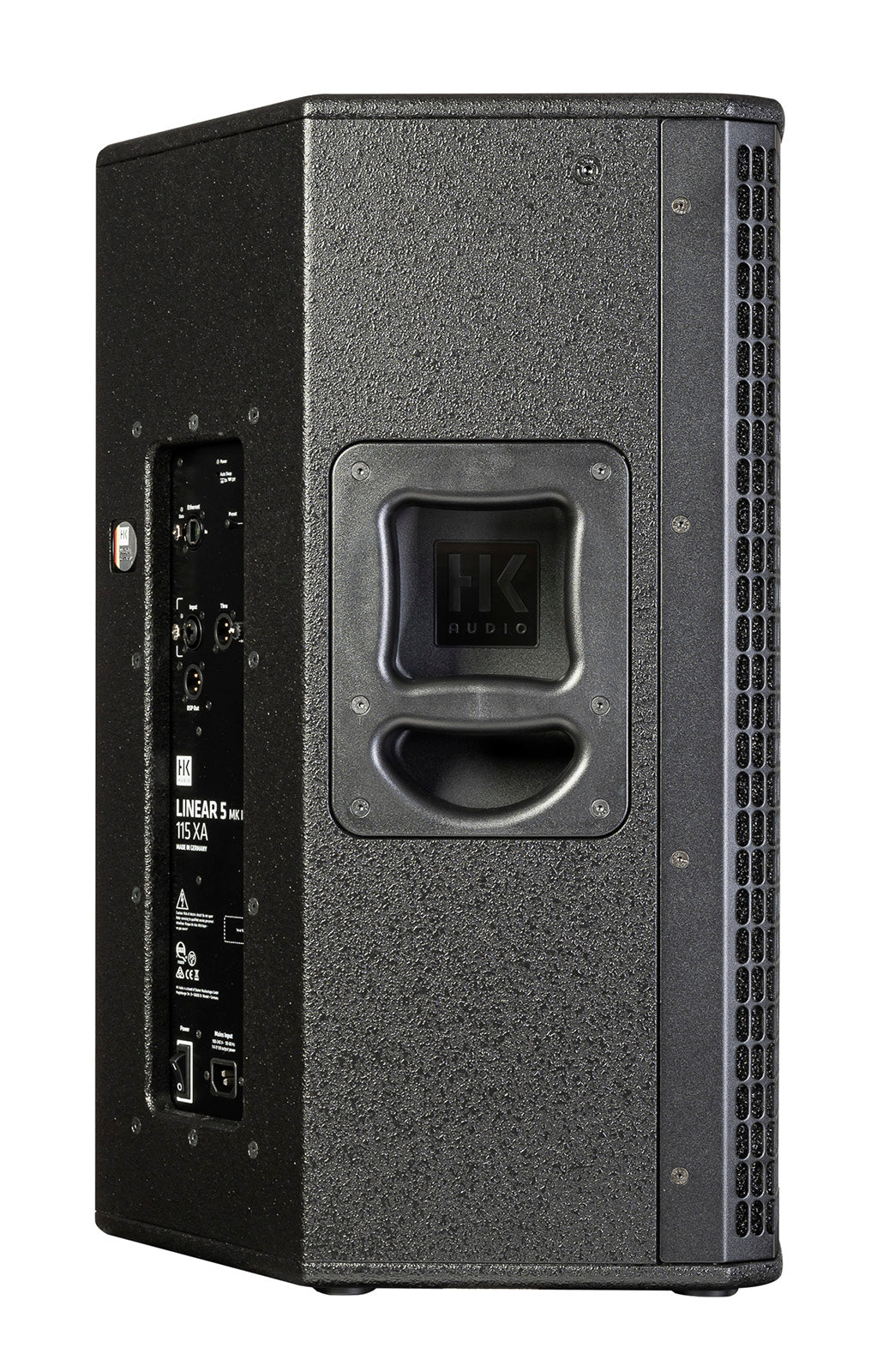

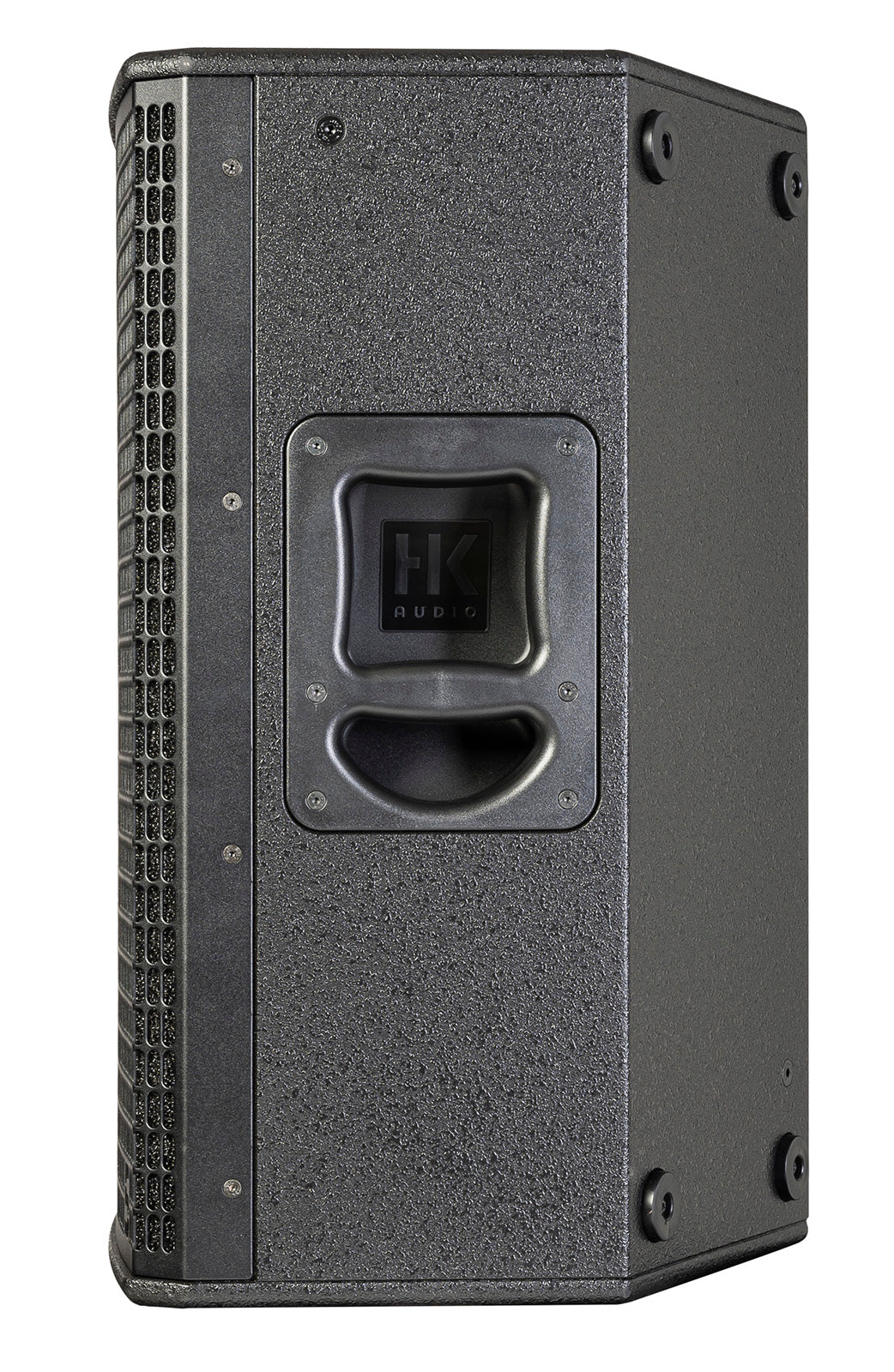

• Robust and Lighter Chassis made of multi-ply birch and MDF, beveled edge for stage monitor use, 35 mm base, and transport handles.

L5MKII-115XA

1.369,00 €VAT incl.

3,10 € Ecotax included

Reference price

An Evolution of the LINEAR 5 Series, Designed and Manufactured in Germany

The L5MKII-112XA is part of the new LINEAR 5 MKII generation, completely redesigned to offer greater versatility and control. More compact and lighter than its predecessors, it gains maneuverability without sacrificing durability. The integrated network-controllable DSP simplifies phase alignment of multiple speakers and integration with other products in the range, including subwoofers developed with cardioid presets.

Who Is It For and What Are Its Uses?

Designed for bands, DJs, and demanding professionals, this speaker excels as a front-of-house unit in clubs, multipurpose venues, and corporate events. Its beveled edge allows clean and powerful stage monitor use. With its 35 mm base and M8 inserts, it quickly adapts to touring, fixed installation, or rental configurations.

Technical specifications

Battery	No	EQ	10 channels
Category	Soundsystem	Baseplate width	35 mm
Type	active speaker	Mixer	No
Insert type	M8	Cutaway	Yes
Peak power	1200 W	SPL Max / peak	138 dB
Peak power, type	RMS	SPL max	130 dB
Number of channels	2 channels	Speaker structure	MDF
Amplification	Active amplified	Transport	2 handles
Application	Facade	Inputs	combo XLR/jack, RJ45
Bluetooth	No	Outputs	link XLR, XLR DSP
Connection	Combo, XLR Link, Ethercon, XLR	Color	Black
Controls	limiter, high pass filter switch, polarity inversion, mute switch, low pass filter control, delay, equalization	Finishing	Wood
Speaker diameter	15"	Power output	600 W
Number of speakers	1	Power / type	RMS
Tweeter	1,7"	Quantity	1
Horizontal dispersion in degrees	70.0000	Mounting	On 35 mm stand
Vertical dispersion in degrees	50.0000	Weight	27.6 kg
DSP	Yes	Dimensions (mm)	450 x 685 x 420

Questions frequently asked

What power does the HK Audio L5MKII-115XA deliver?

The built-in amplification provides 600 W RMS and 1,200 W peak, with a maximum SPL rating of 130 dB and 138 dB peak.

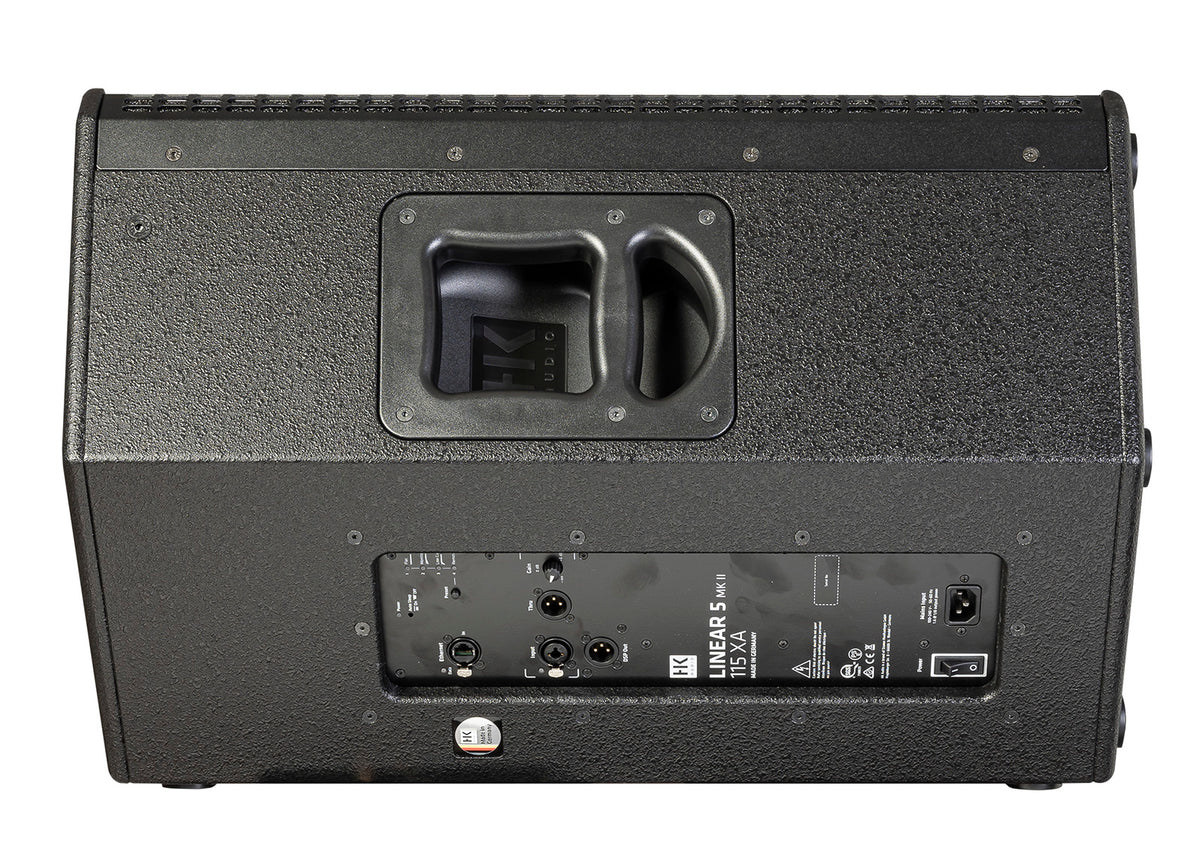

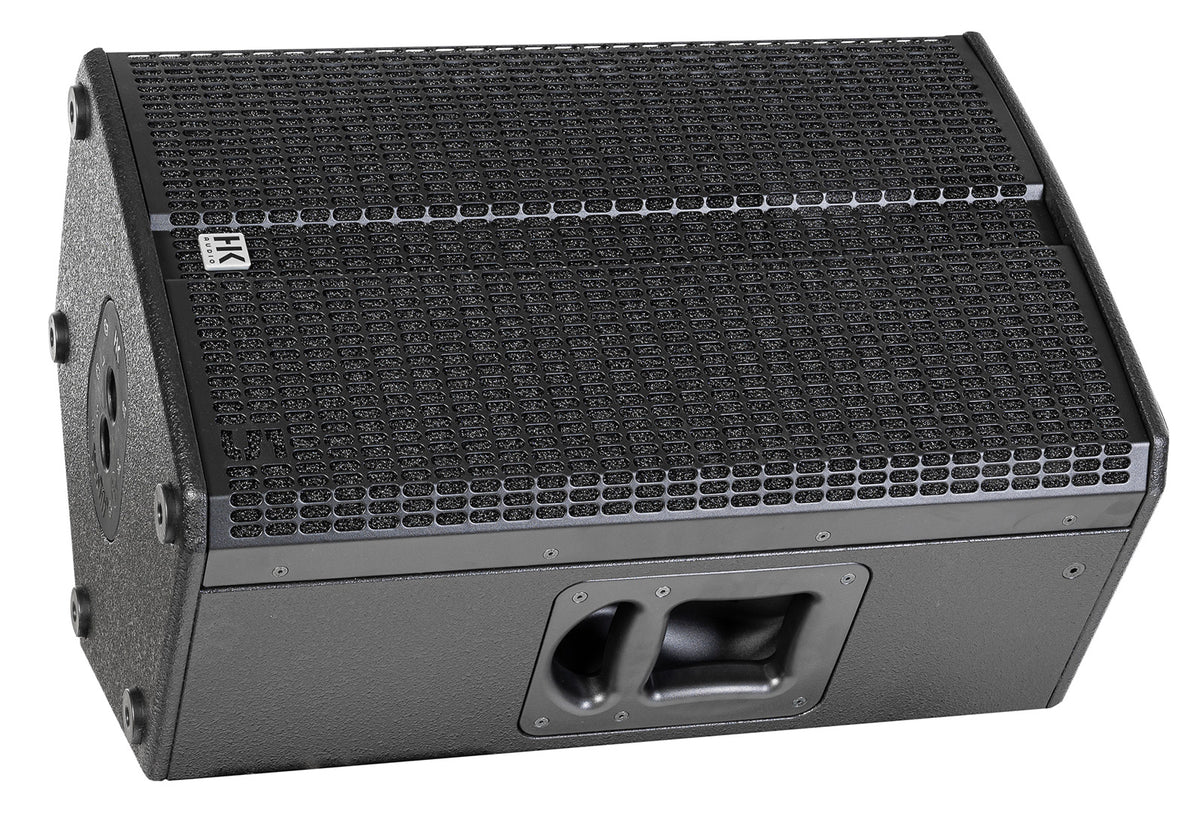

Can this speaker be used as a stage monitor?

The horn cutoff allows for floor use as a stage monitor. The 2-way configuration pairs a 15-inch driver with a 1.7-inch tweeter. The stated frequency response ranges from 57 Hz to 12 kHz ±3 dB.

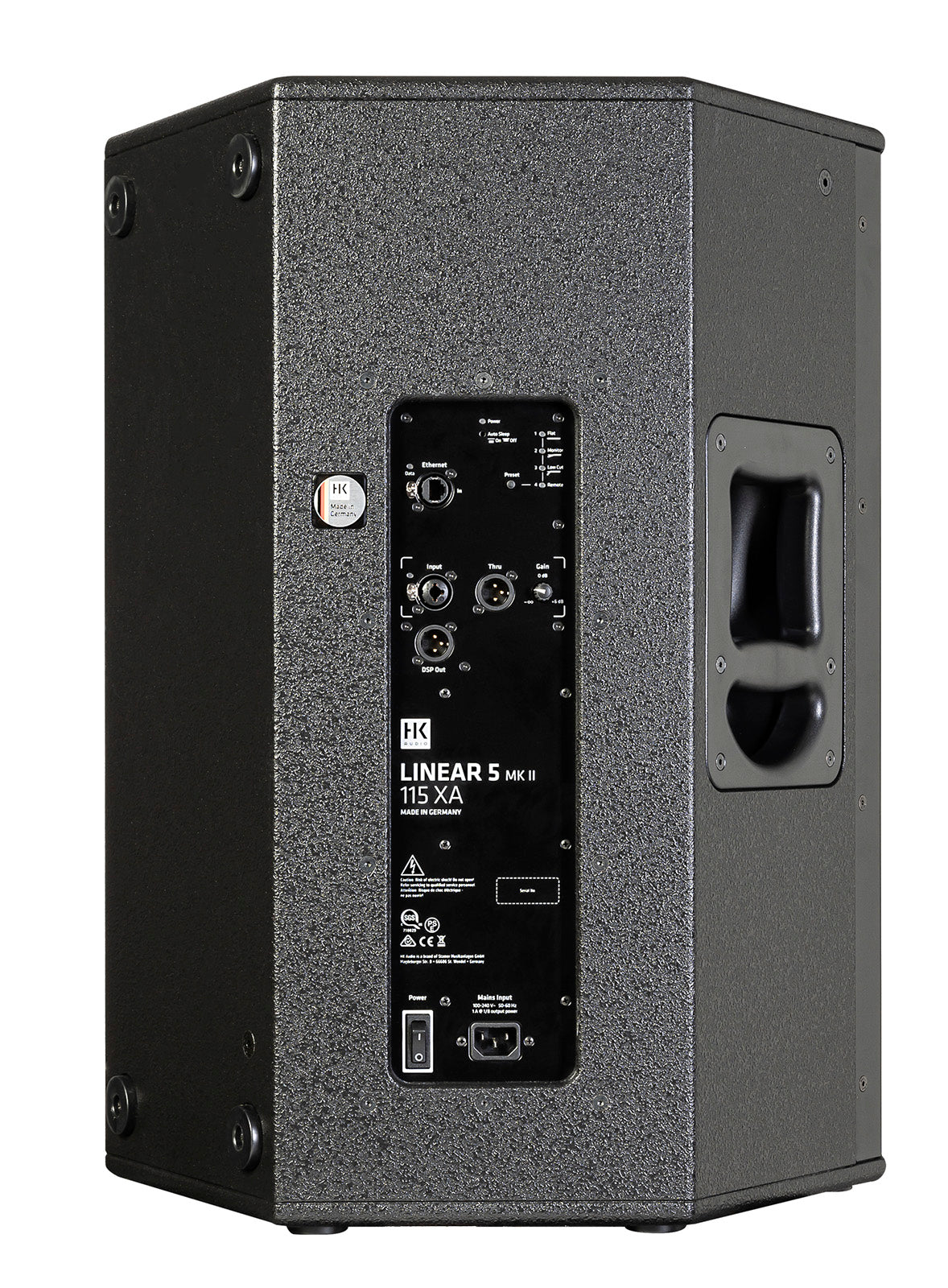

What connections are available on this HK Audio speaker?

It features a combo XLR/6.35 mm jack input, an RJ45 Ethercon socket, an XLR Link output, and an XLR DSP output.

Does the DSP allow controlling multiple speakers on a network?

The built-in DSP is network-controlled via the Ethercon port and supports cascading. A 10-band EQ, high-pass and low-pass filters, delay, polarity inversion, limiter, and mute are available.
