Essential Information About the DZR15 Powered Speaker
- 139 dB SPL maximum level with Class D 2000 W amplification and 96 kHz DSP for powerful and precise sound reproduction.
- 34 Hz - 20 kHz frequency response for deep bass, clear mids, and defined highs.

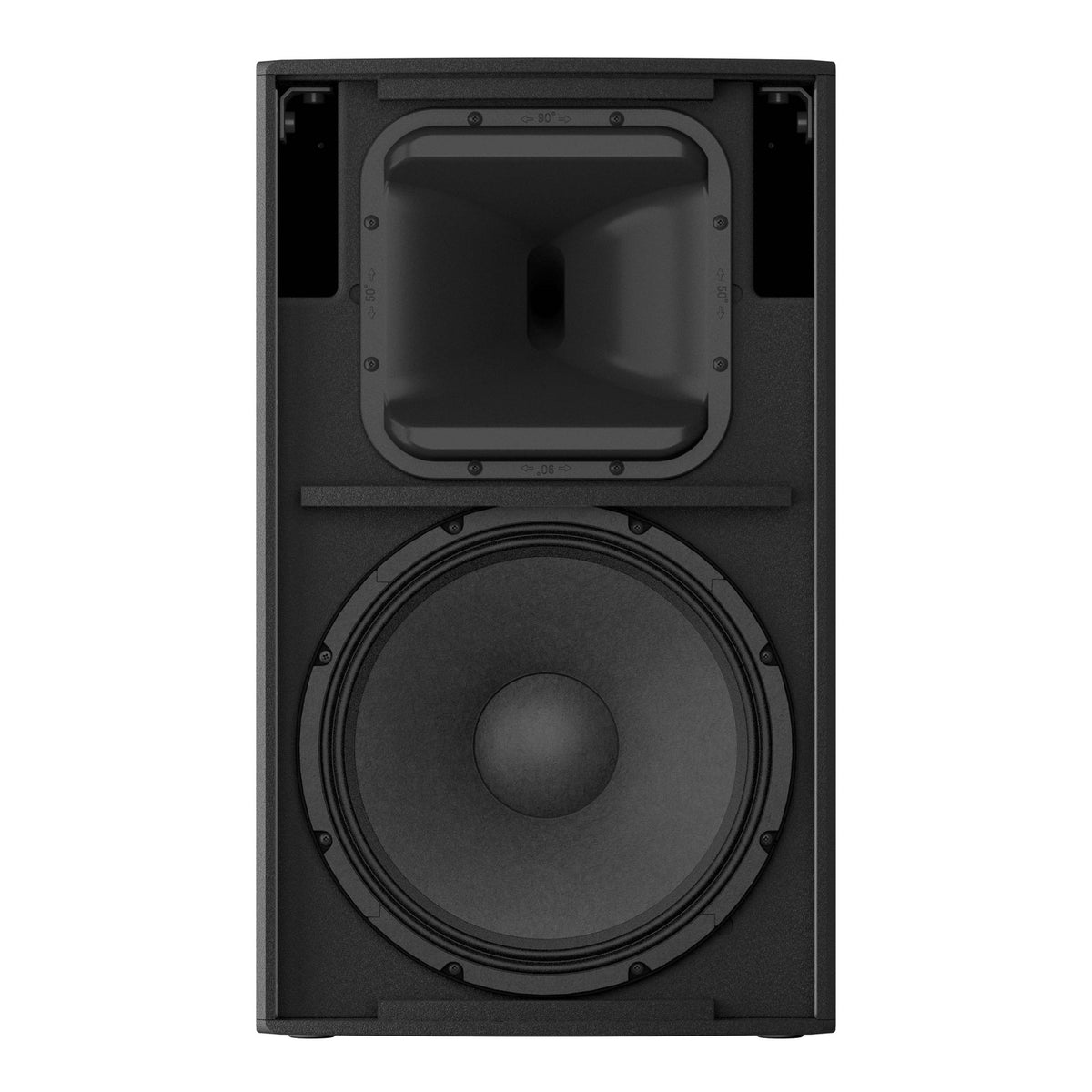

- Rotatable 90 x 50 horn, multiple mounting points, and optional U-bracket for flexible integration.
- Lightweight plywood enclosure with Polyurea coating, "D-Contour" processing, and highly reliable electronic protection.
A 15-inch Speaker Designed for Performance
A flagship model in the DZR series, the DZR15 combines a high acoustic pressure level, robust bi-amplification, and advanced digital processing in a portable format. The result is a professional sound reinforcement speaker capable of delivering both impact and finesse, whether for mobile gigs, light touring, or fixed installations.
For Front of House, Monitor, or Installation
With its 15-inch driver, rotatable horn, and multiple mounting options, the DZR15 is suitable as a front-of-house speaker, stage monitor, or side fill. Its integrated management (presets, equalization, delay, and routing) facilitates adaptation for DJs, bands, houses of worship, theaters, and multipurpose venues.
High-Resolution DSP and Intuitive Control
The digital core operates at 96 kHz with FIR filtering and "Advanced FIR-X" technology to minimize phase distortion and optimize coherence between drivers. The built-in LCD screen provides quick access to presets, parametric EQ, delay, and routing, while protection circuits and "D-Contour" ensure safe operation even at high levels.
Technical specifications
| Battery | No | Cutaway | Yes |
| Number of channels | 2 channels | Speaker structure | wood |
| Bluetooth | Yes | Inputs | combo XLR/jack |
| Speaker diameter | 15" | Outputs | XLR |
| Number of speakers | 2 | Color | Black |
| EQ | Yes | Power output | 2000 W |
| Media Player | Bluetooth | ||
| Type | 2-way, bi-amplified, bass-reflex speaker | Processing | "D-Contour" and electronic protection |
| Dispersion | H 90 x V 50 (rotatable horn) | Frequency response (-10 dB) | 34 Hz - 20 kHz |
| LF | 15-inch driver, 3-inch voice coil, neodymium magnet | Maximum sound pressure level (1 m, on-axis) | 139 dB SPL |
| MF | - | Analog inputs | 2 x Combo, line level (max +24 dBu), input impedance 20 kOhms |
| HF | 2-inch voice coil, 1-inch throat, compression driver, titanium diaphragm, neodymium magnet | Analog outputs | 2 x XLR3-32 (CH1: fixed THRU; CH2: THRU or DSP OUT) |
| Crossover frequency | 1.7 kHz (FIR-X) | Power supply | IEC socket (V-Lock) |
| Amplifier | Class D | Enclosure | plywood with durable Polyurea paint, black |
| Dynamic power | 2000 W (LF 1000 W, MF/HF 1000 W) | Cooling | variable speed fan |
| Continuous power | 1300 W (LF 920 W, MF/HF 380 W) | Handles | molded aluminum, 2 sides |
| Internal DSP | 96 kHz with FIR filter | Mounting points | 12 x M10 |
| A/D - D/A converters | 96 kHz | Stage monitor angle | 50 degrees symmetrical |
| Functions | presets, parametric EQ, delay, routing via LCD screen | Pole socket | 2 x 35 mm (0 degrees or -7 degrees) |
Questions frequently asked

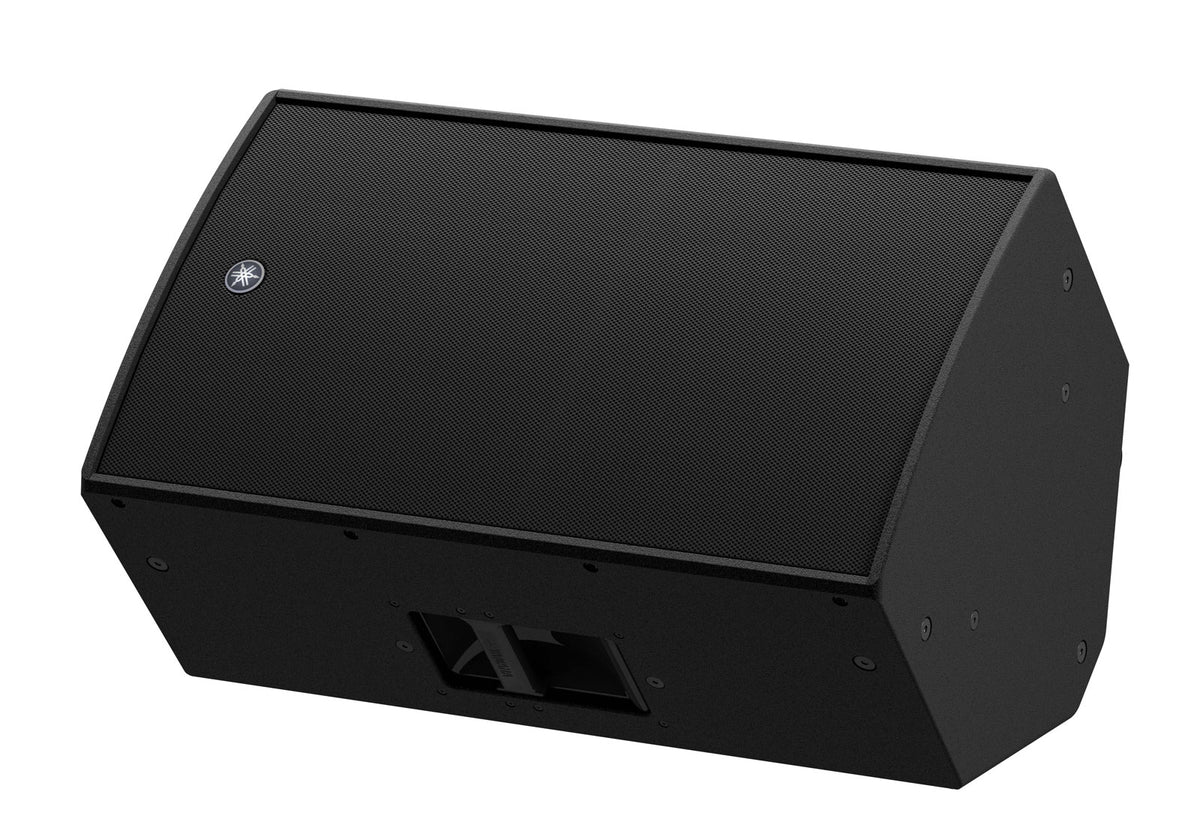

Can the Yamaha DZR15 be used as a stage monitor?
The enclosure features a beveled edge with a symmetrical stage monitor angle of 50°. The rotatable horn with a 90° x 50° dispersion allows adjusting the sound coverage orientation according to the used position.
What power and SPL level does this 15-inch speaker deliver?
The Class D amplification delivers 2,000 W dynamic power, split evenly between 1,000 W for the low frequencies and 1,000 W for the high frequencies. The continuous power reaches 1,300 W. The maximum declared SPL is 139 dB at 1 m on axis.

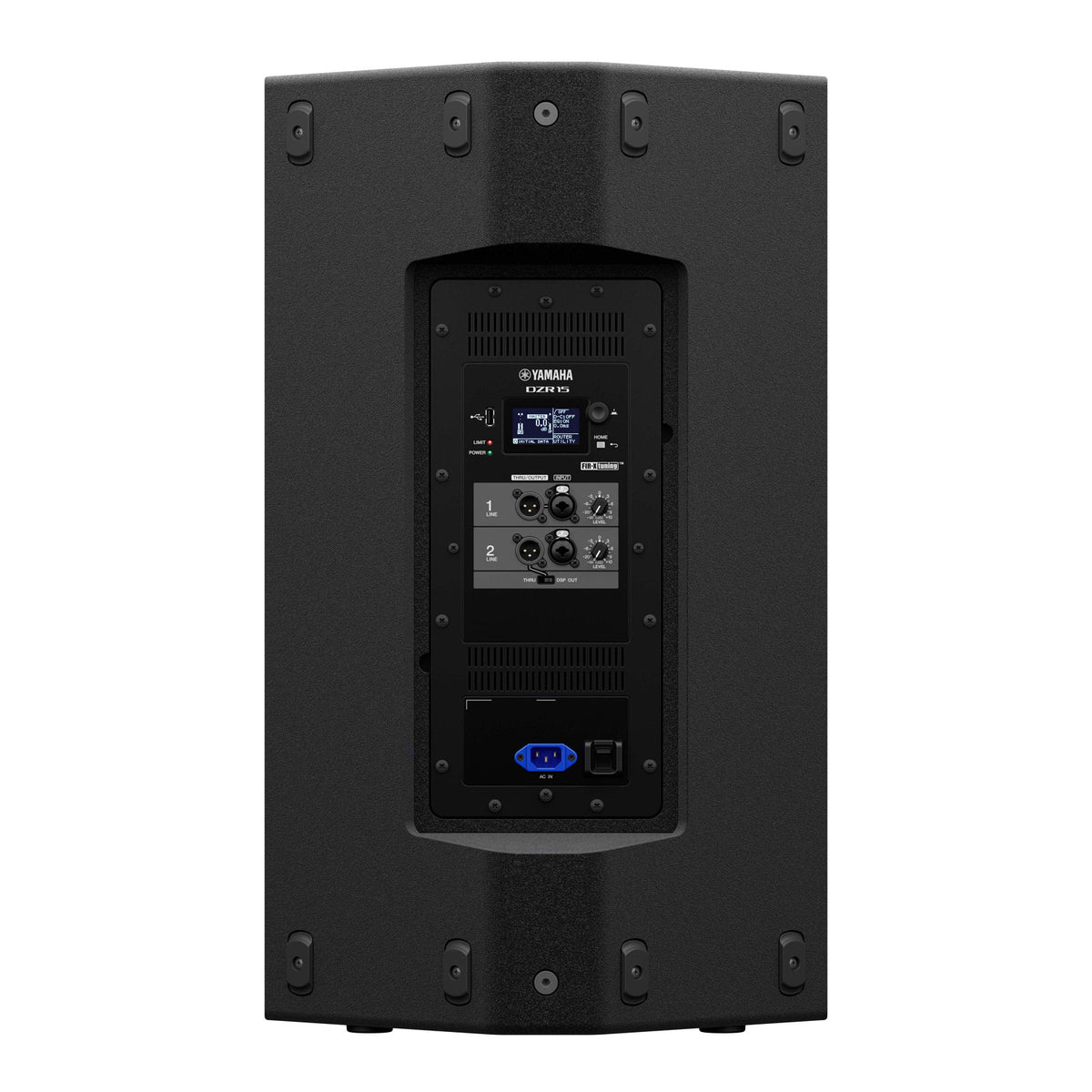

What inputs and outputs are available?
Two combo XLR/jack inputs accept line level signals up to +24 dBu, with an input impedance of 20 kOhms. Two XLR outputs are provided: channel 1 output is fixed THRU, while channel 2 output can operate as THRU or DSP OUT.
Does the DZR15's DSP allow adjustment of EQ and delay?
The internal 96 kHz DSP with FIR-X filtering provides access, via the LCD screen, to presets, parametric EQ, delay, and routing.
Can it be pole-mounted or suspended?
Two 35 mm sockets allow pole mounting at 0° or tilted at -7°. Twelve M10 rigging points are integrated into the plywood enclosure, protected by black Polyurea paint.
