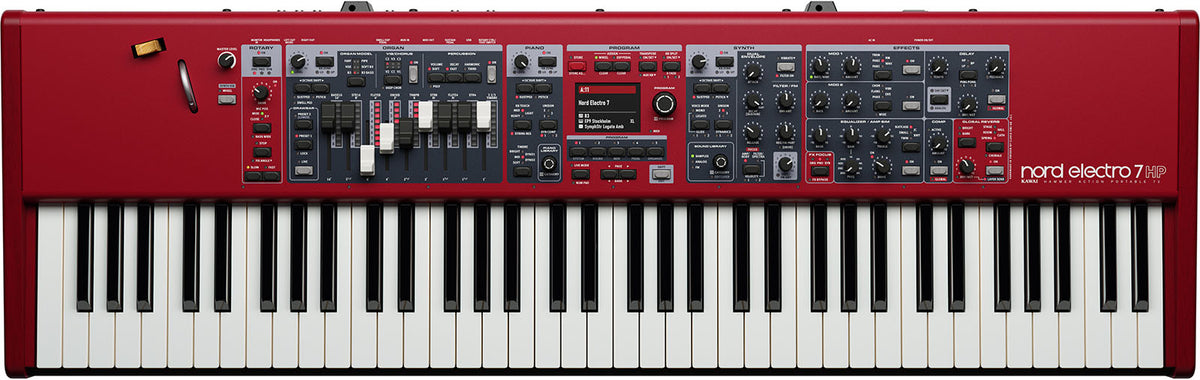

Nord ELECTRO 7 - HP

Essential Information About the Nord Electro 7 HP 73 Stage Keyboard

• Triple sound engine Piano / Synth / Organ, playable in split or layer with seamless transitions.


• New programmable synthesizer, dedicated effects per section, and high-definition color display.


• 73-note Kawai HP weighted keyboard with triple sensors for precise and expressive piano playing.


• 9 LED split points and "Aux KB" mode for easy integration of a second MIDI keyboard.

The Electro Signature: Between Vintage Heritage and Modernity

A true stage bestseller, the Nord Electro 7 condenses the brand's vintage DNA into a lightweight and straightforward format. This generation features a redesigned synth section, effects per module, and a refined interface, while incorporating the organ modeling from the recent Nord Organ 3. The result: a versatile instrument tailored for live performance, ideally positioned between the Stage and Piano series in the lineup.

Keyboard Design

The Nord Electro 7 HP adopts a Kawai portable hammer action (HP) mechanism with triple sensors, 73 keys, featuring a weighted and velocity-sensitive touch. The triple sensors ensure fine reproduction of repetitions and dynamics, while the three velocity curves allow you to tailor the response to your playing, from pianissimo to fortissimo, with perfect stability on stage.

Sound Quality

The Piano section relies on premium samples from the "Nord Piano Library" with sympathetic resonance, dynamic filters, and dynamic compression for immediate presence in the mix. On the synthesis side, sample playback, analog waveforms, and FM combine to cover modern or retro textures. The Organ section features modeling from the Nord Organ 3 for tonewheels, transistors, and a liturgical organ with striking realism. Designed for the stage, the Electro 7 does not include built-in speakers.

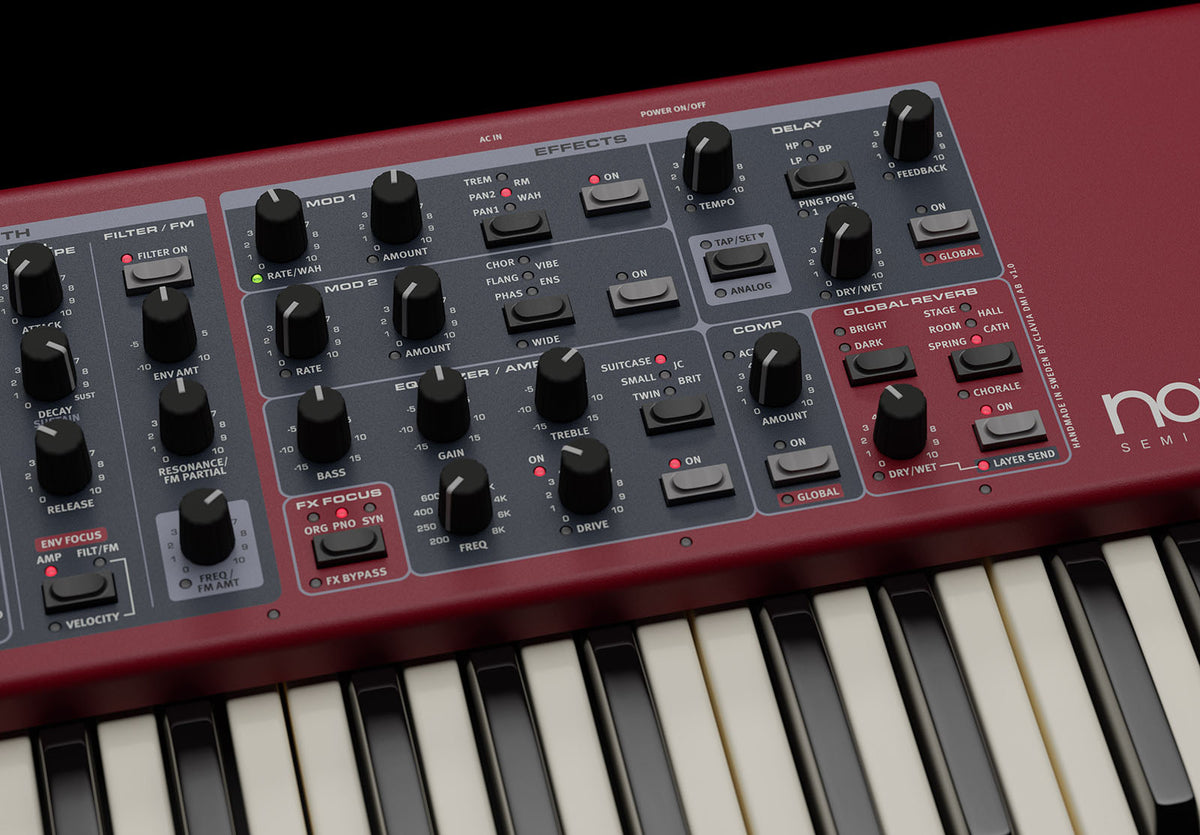

Built-in Effects

• Effect 1: tremolo, pan 1/2, wah, ring modulation.


• Effect 2: phaser, flanger, chorus, ensemble, vibe.


• Amps: 5 simulations with saturation and 3-band EQ (semi-parametric mids).


• Delay: analog, ping-pong, tap tempo modes.


• One-knob compressor.


• Master reverb: room, stage, spring, hall, cathedral, dry/wet control, bright/dark modes.

Technical specifications

Effects	Wah, Tremolo, Reverb, Delay, EQ, Compressor, Chorus, Delay with Tap Tempo, Ensemble, Flanger, Panning, Phaser, Ring modulation, Guitar amp emulation, Rotary speaker emulation, Vibe	Transposition	Yes
Controller	Pitchbend, Modulation, Drawbars	Sympathetic resonance	Yes
Velocity sensitive	Yes	Mechanical noise of the pedal	Yes
Sound Source	Echantillonnage et modélisation	Max polyphony	120 (piano) - totale (orgue) - 30+ (synthé)
Compact dimensions	Yes	USB to Host port	Yes
MIDI DIN I/O	Yes	Inputs	Expression pedal, Sustain pedal, Midi, Rotary cabin control, Footswitch, Audio in, USB Midi
Category	stage piano	Outputs	Midi, Headset, 2 x jack, USB Midi
Harmonic sliders	Yes	Color	Red
Number of keys	73	Finishing	Satin
Touch	Heavy	Weight	13 kg
Split & layer	layer, split, crossfade	Dimensions (mm)	1070 x 314 x 130
Number of sounds	500

Keyboard	triple sensors, velocity sensitivity, 3 response curves.	6 models	3 tonewheel, 2 polyphonic transistor, 1 liturgical organ (Nord Organ 3 source).
Split points	9, indicated by LEDs.	Tonewheel emulation	3 types (more or less vintage character).
Program transition	seamless.	Harmonic drawbars	9, physical, with LED bargraph.
" Aux KB " mode	control of a module via an external MIDI keyboard.	Modeled rotary loudspeaker	choice of microphone positions and stopped position.
Piano memory	dedicated Flash ROM for pianos from the " Nord Piano Library ".	Effect 2	phaser, flanger, chorus, ensemble, vibe.
Piano functions	sympathetic resonance, dynamic filters, dynamic compression.	Amplifier simulations	5, with drive and 3-band EQ (semi-parametric mids).
Velocity curves	3.	Delay	analog, ping-pong, tap tempo.
Synth sound generation	sample playback, analog waveforms, FM synthesis.	Compressor	" one-knob ".
Sample memory	dedicated Flash ROM for samples from the " Nord Sample Library " or created using " Nord Sample Editor ".	Reverb	room, stage, spring, hall, cathedral, bright/dark modes, dry/wet mix.
Filter	low-pass (frequency, resonance) with velocity modulation.	Screen	high-definition color.
FM	control of frequency modulation and partials.	Navigation	push-button rotary encoders.
Envelopes	filter and amplitude (Attack/Decay/Release).	Effects section	independent for each sound module.
Synth modes	mono/legato, 3 unison modes, vibrato (depth/speed).
